G023

Tesla Part Number
1772452-00-A
Connector
RSD RSD2D3839
Color
-

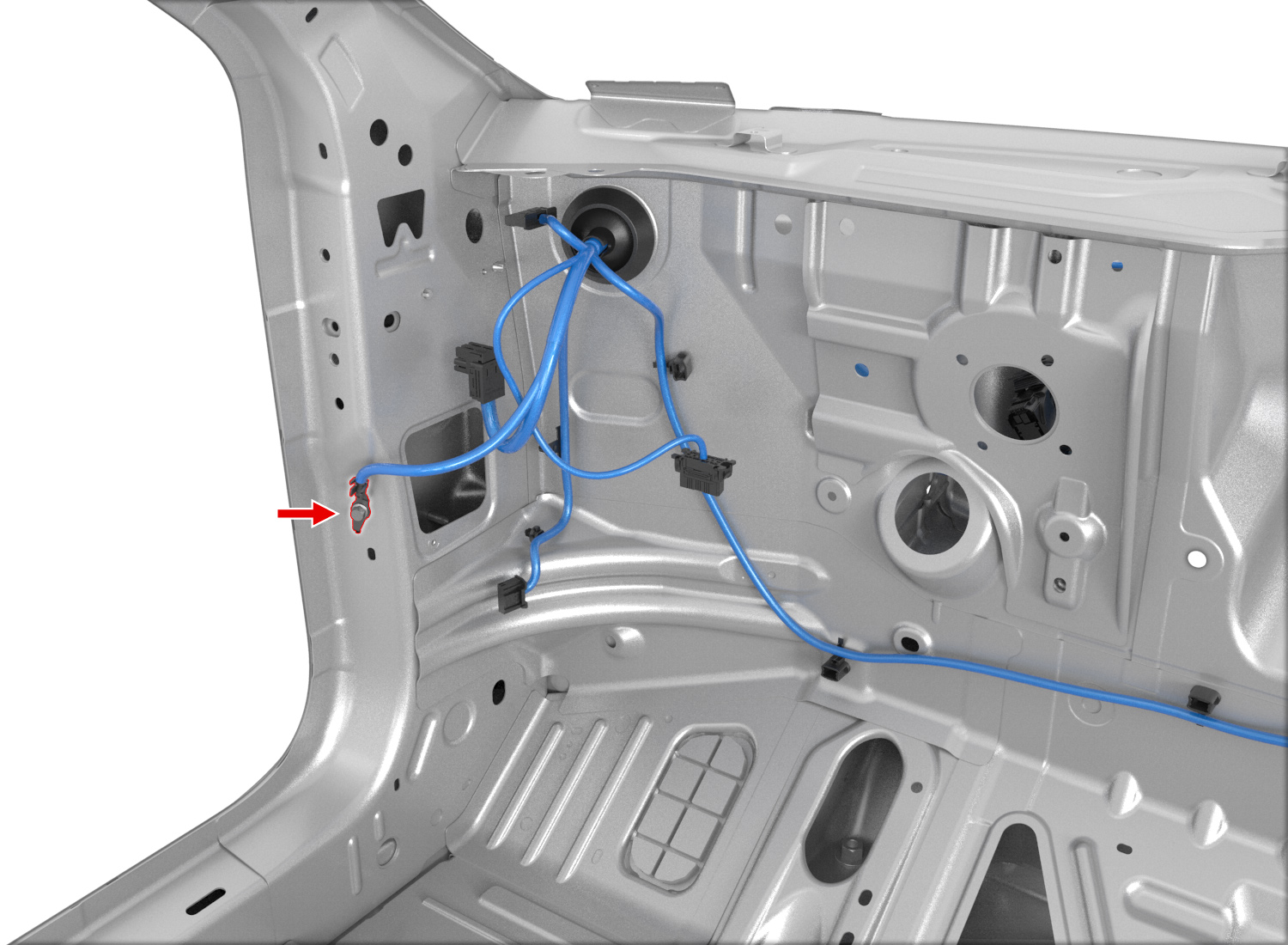

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1BK6.00X0362
