G032

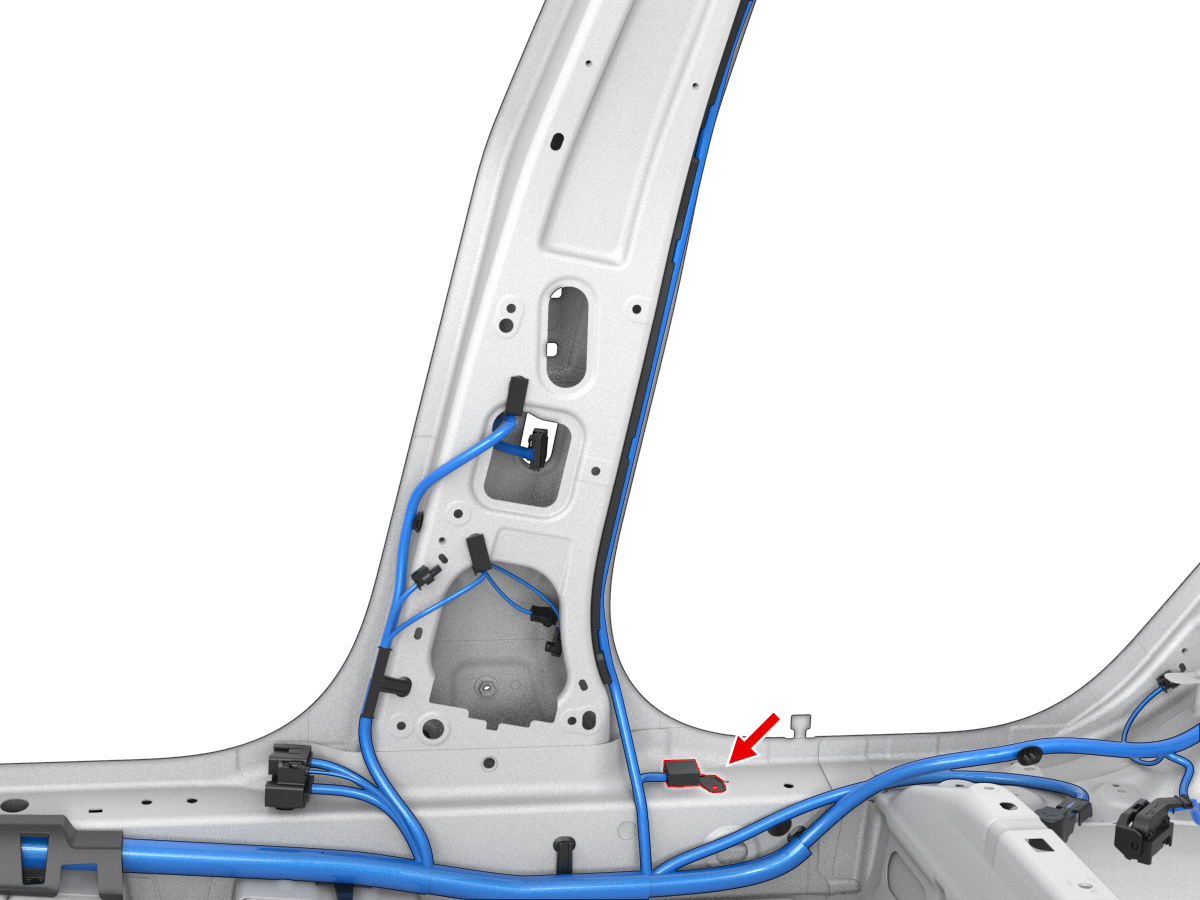

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-0782 | 4.8x0.8F | BK | 3.00 | G042 | 1 | ||
| 2 | unused | ||||||||
| 3 | unused | ||||||||
| 4 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.50 | X677 | 1 | ||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | unused | ||||||||
| 8 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.50 | X179 | 20 | ||
| 9 | unused | ||||||||
| 10 | unused | ||||||||
| 11 | unused | ||||||||
| 12 | unused | ||||||||
| 13 | SUMITOMO | 8240-0213 | 1.5x0.64F | BK | 0.75 | X098 | 9 | ||
| 14 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X494 | 5 | ||
| 15 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X962M | 4 | ||
