G042

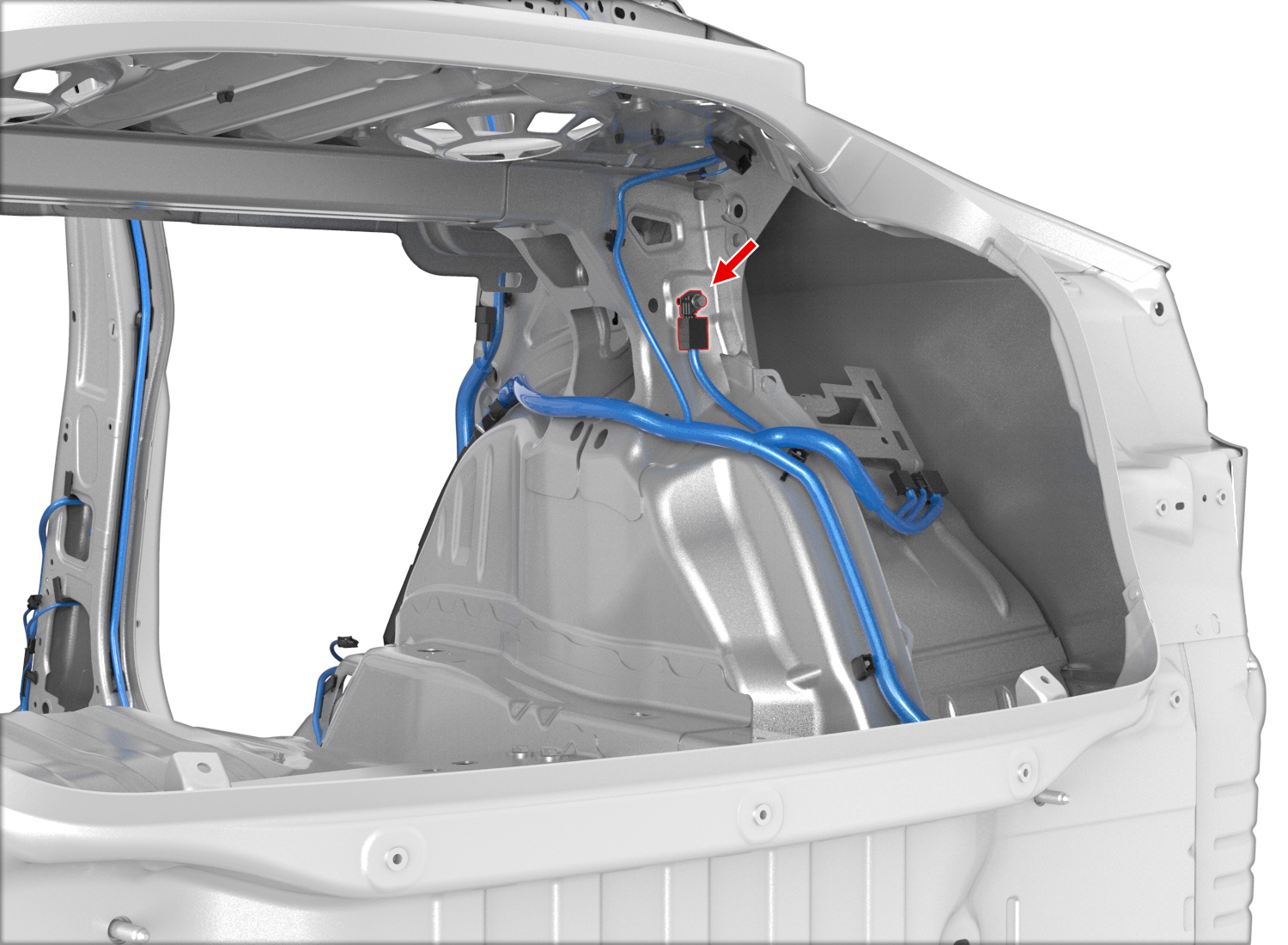

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-0782 | 4.8x0.8F | BK | 3.00 | G032 | 1 | ||
| 2 | unused | ||||||||
| 3 | SUMITOMO | 8100-0782 | 4.8x0.8F | BK | 3.00 | X561 | 5 | ||
| 4 | unused | ||||||||
| 5 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.50 | X952M | 14 | ||
| 6 | unused | ||||||||
| 7 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.50 | X949M | 7 | ||
| 8 | unused | ||||||||
| 9 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X297 | 2 | ||
| 10 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X562 | 4 | ||
| 11 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X970M | 7 | ||
| 12 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 1.50 | X952M | 8 | ||
| 13 | unused | ||||||||
| 14 | unused | ||||||||
| 15 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.50 | X949M | 11 | ||
