X031

Tesla Part Number

1506906-01-A

Connector

SUMITOMO 6098-8975

Color

GY

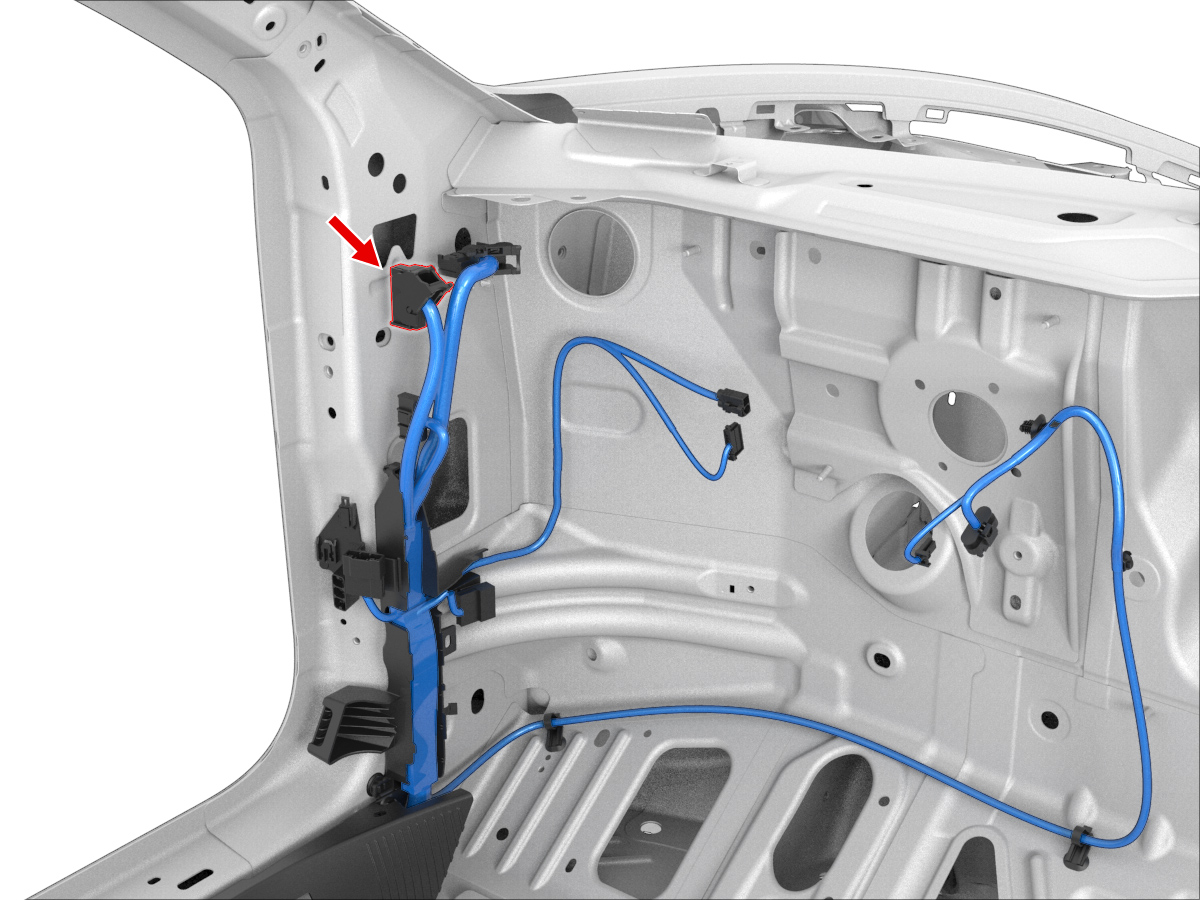

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X924F	1
2	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X162A	3
3	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X930F	1
4	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X924F	13
5	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X930F	10
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X685	1
7	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X924F	24
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X924F	25
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X296	1
10	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X935F	31
11	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X935F	15
12	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X935F	14
13	unused
14	unused
15	SUMITOMO	8240-0214	1.5x0.64F	GN	1.50			X924F	15
16	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X685	2
17	SUMITOMO	8240-0214	1.5x0.64F	GY	1.50			X162A	4
18	SUMITOMO	8240-0214	1.5x0.64F	BN	2.00			X930F	11
19	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X924F	12
20	SUMITOMO	8240-0215	1.5x0.64F	BN	0.50			X924F	4
21	unused
22	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X930F	8
23	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X924F	16
24	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X924F	9
25	unused
26	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X686	9
27	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X686	7
28	unused
29	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X909M	16
30	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X909M	17
31	SUMITOMO	8240-0214	1.5x0.64F	GY	2.00			X353	8
32	SUMITOMO	8240-0214	1.5x0.64F	VT	2.00			X353	5
33	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X936F	14
34	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X936F	26
35	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X935F	6
36	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X935F	5
37	unused
38	unused
39	unused
40	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X673	2
41	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X685	4
42	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X935F	27
43	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X935F	26
44	SUMITOMO	8100-3625	0.64x0.64F	YE/DKBU	0.35			X201	72
45	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X201	71
