X033A

Tesla Part Number

1800524-01-A

Connector

YAZAKI 7287-1673

Color

NA

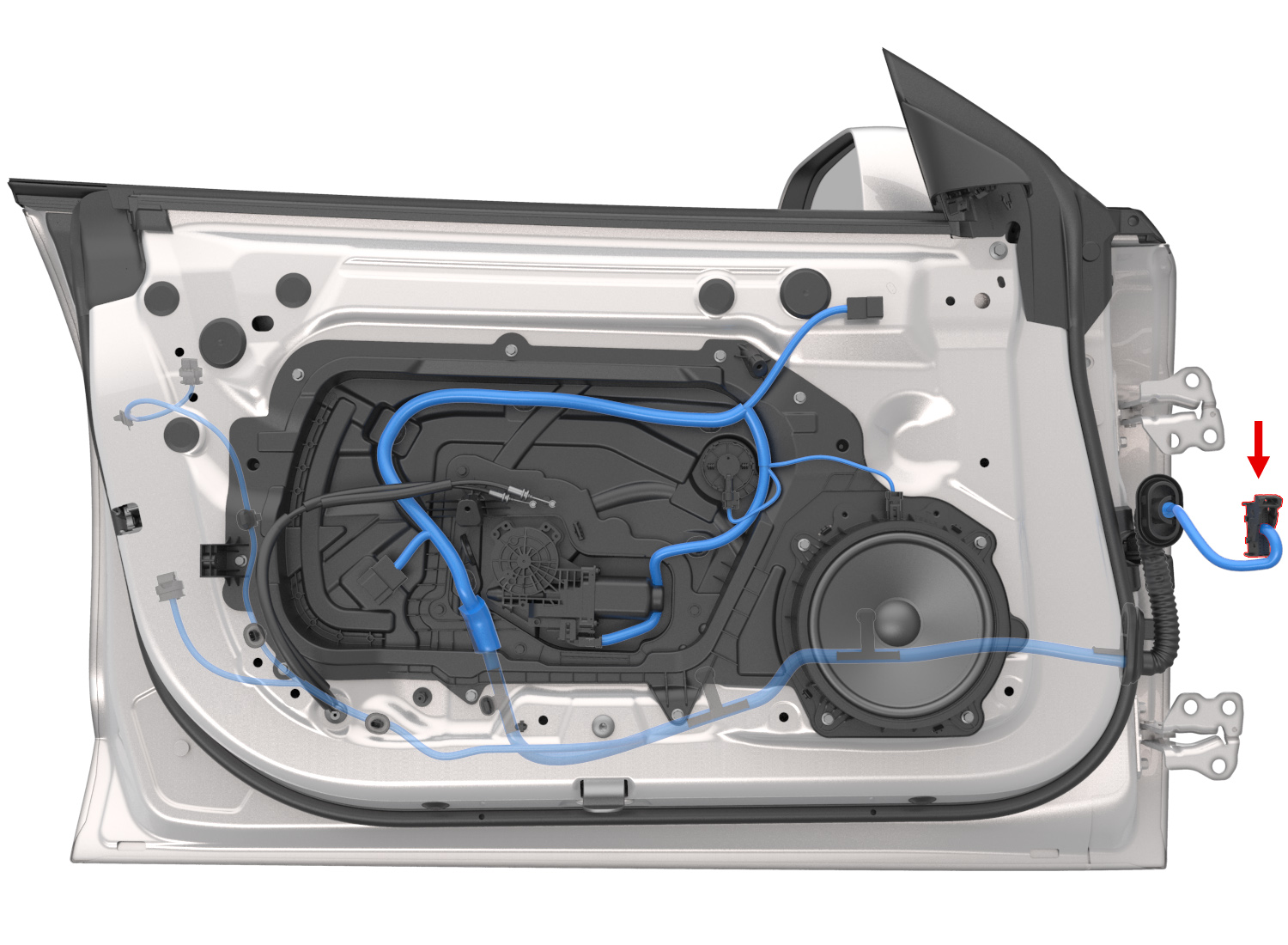

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7116-5751-02	1.5x0.8F	RD	1.50			X373	5
2	YAZAKI	7116-5751-02	1.5x0.8F	TN	1.50			X373	1
3	YAZAKI	7116-5750-02	1.5x0.8F	BN	1.00
4	unused
5	YAZAKI	7116-5750-02	1.5x0.8F	VT	0.75			X922M	1
6	YAZAKI	7116-5750-02	1.5x0.8F	BU	0.75			X922M	12
7	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X922M	14
8	unused
9	unused
10	YAZAKI	7116-3153-02	0.64x0.64F	BK	0.35			X373	3
11	YAZAKI	7116-3153-02	0.64x0.64F	YE	0.35			X376	8
12	YAZAKI	7116-3153-02	0.64x0.64F	BU	0.35			X376	10
13	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X376	2
14	YAZAKI	7116-3153-02	0.64x0.64F	GN	0.35			X922M	18
15	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X922M	8
16	YAZAKI	7116-3153-02	0.64x0.64F	WH	0.35			X380	4
17	YAZAKI	7116-3153-02	0.64x0.64F	BU	0.35			X380	3
18	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X376	14
19	YAZAKI	7116-3153-02	0.64x0.64F	YE	0.35			X922M	4
20	YAZAKI	7116-3153-02	0.64x0.64F	VT	0.35			X922M	5
21	YAZAKI	7116-3153-02	0.64x0.64F	TN	0.35			X376	1
22	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X922M	19
23	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X922M	7
24	YAZAKI	7116-3153-02	0.64x0.64F	BU	0.35			X922M	10
