X033B

Tesla Part Number

1800524-02-A

Connector

YAZAKI 7287-1674

Color

NA

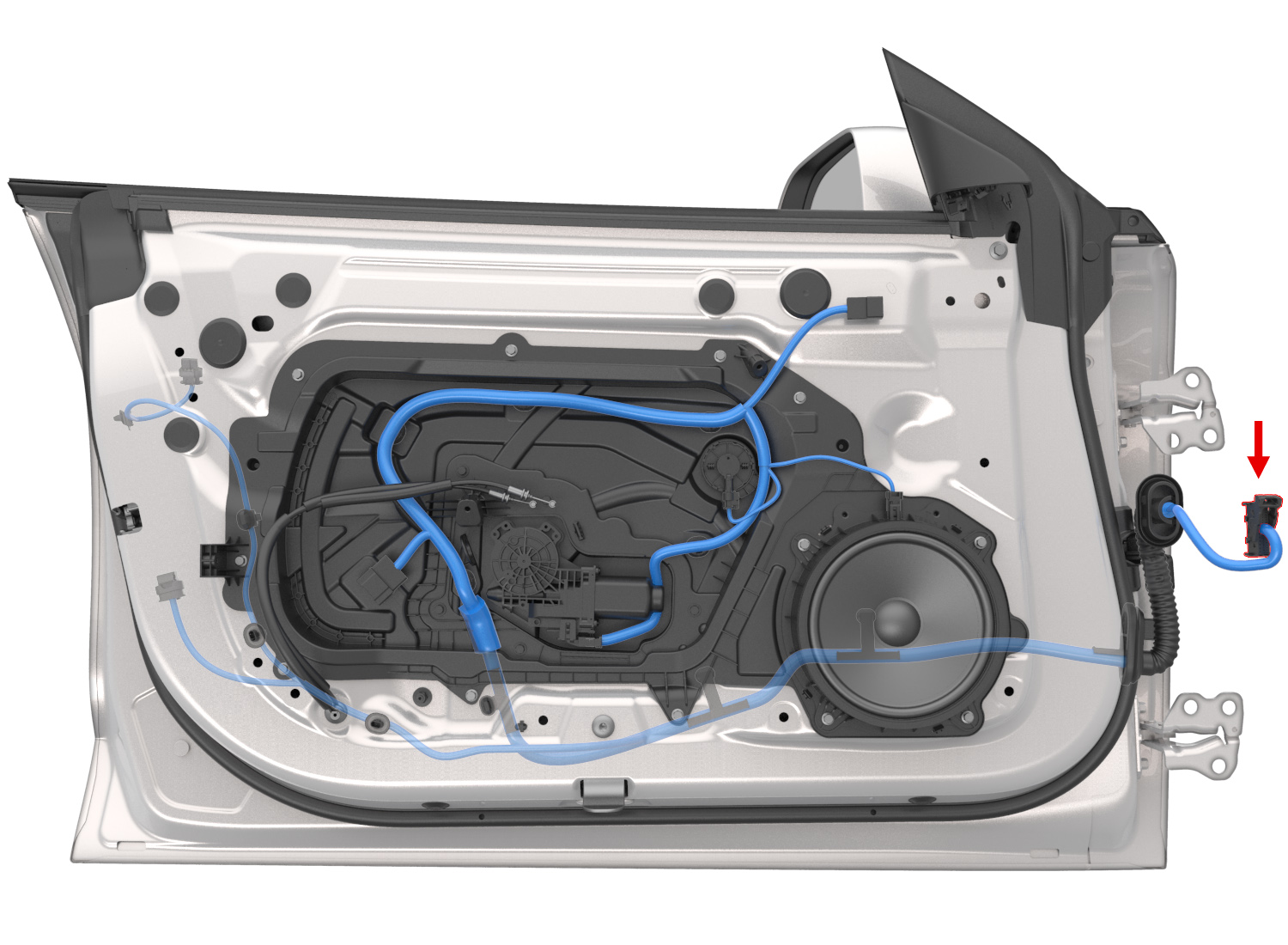

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7116-5750-02	1.5x0.8F	VT	0.75			X922M	1
2	YAZAKI	7116-5750-02	1.5x0.8F	BU	0.75			X922M	12
3	YAZAKI	7116-5750-02	1.5x0.8F	YE	1.00			X567	1
4	YAZAKI	7116-5750-02	1.5x0.8F	BU	1.00			X567	2
5	YAZAKI	7116-5750-02	1.5x0.8F	GN	1.00			X922M	11
6	YAZAKI	7116-5750-02	1.5x0.8F	VT	1.00			X922M	20
7	YAZAKI	7116-3153-02	0.64x0.64F	VT	0.35			X376	9
8	YAZAKI	7116-3153-02	0.64x0.64F	YE	0.35			X922M	16
9	YAZAKI	7116-3153-02	0.64x0.64F	BU	0.35			X922M	15
10	YAZAKI	7116-3153-02	0.64x0.64F	VT	0.35			X380	8
11	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X376	4
12	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X380	1
13	YAZAKI	7116-3153-02	0.64x0.64F	YE	0.35			X204	1
14	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X204	2
15	YAZAKI	7116-3153-02	0.64x0.64F	BU	0.35			X373	4
16	unused
17	YAZAKI	7116-3153-02	0.64x0.64F	WH	0.35			X376	3
18	YAZAKI	7116-3153-02	0.64x0.64F	TN	0.35			X367	2
19	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X367	4
20	YAZAKI	7116-3153-02	0.64x0.64F	WH	0.35			X922M	9
21	YAZAKI	7116-3153-02	0.64x0.64F	VT	0.35			X922M	17
22	YAZAKI	7116-3153-02	0.64x0.64F	TN	0.35			X376	5
23	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X376	12
24	YAZAKI	7116-3153-02	0.64x0.64F	GN	0.35			X373	2
