X039

Tesla Part Number

1047432-00-A

Connector

SUMITOMO 6098-4740

Color

WH

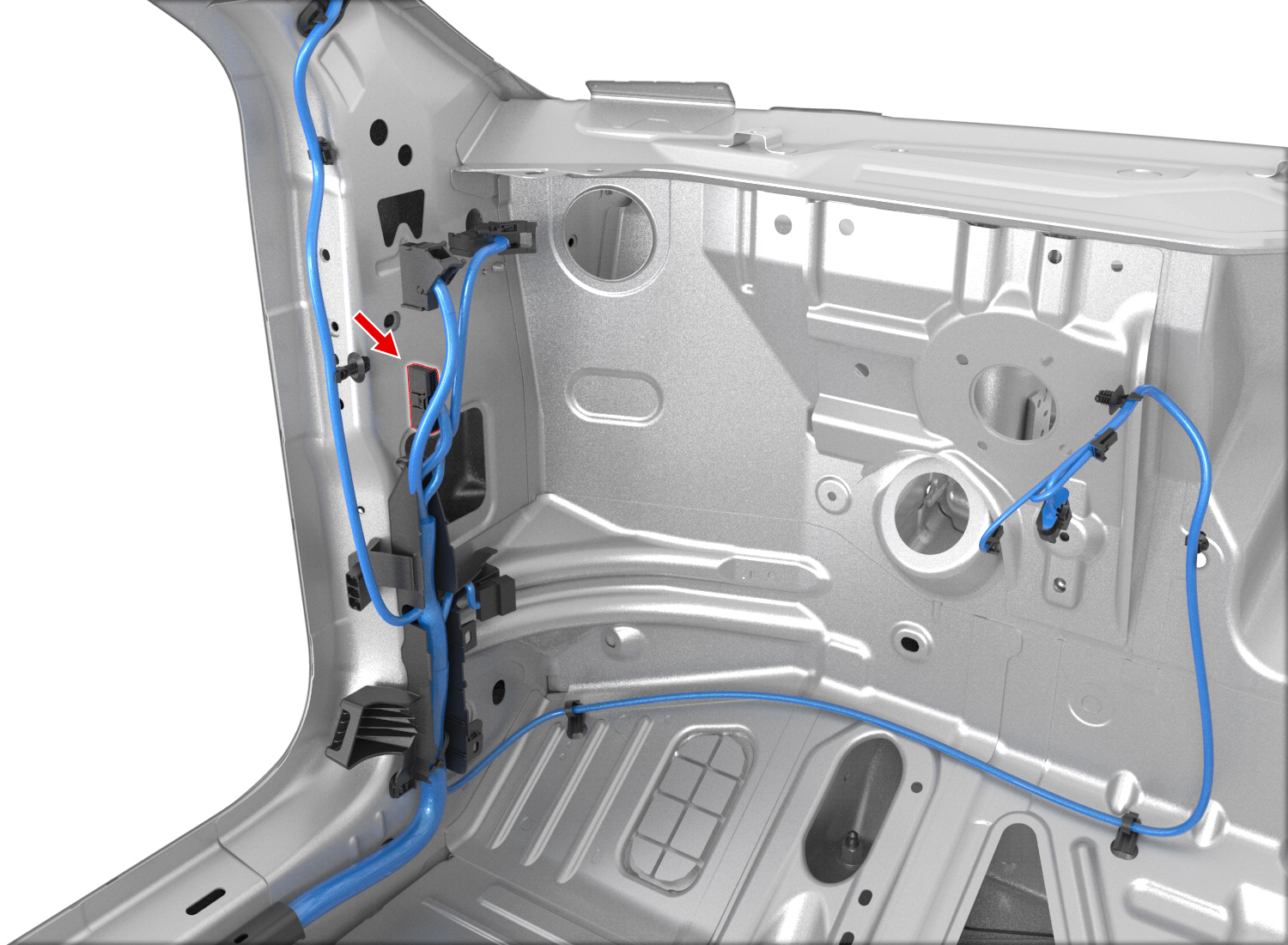

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	unused
4	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X924F	18
5	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X673	1
6	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X686	10
7	unused
8	unused
9	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X981M	16
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X353	2
11	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X935F	25
12	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X353	3
13	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X353	4
14	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X935F	32
15	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X935F	16
16	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X493	6
17	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X493	3
18	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X490	1
19	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X490	3
20	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X935F	21
21	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X935F	22
22	unused
23	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X497	2
24	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X497	1
25	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X493	1
26	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X495	2
27	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X495	1
28	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X930F	15
29	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X930F	14
30	unused
31	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X924F	22
32	unused
33	unused
34	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X353	1
35	unused
36	unused
