X050

Tesla Part Number

1517048-00-A

Connector

YAZAKI 7289-4104-40

Color

GY

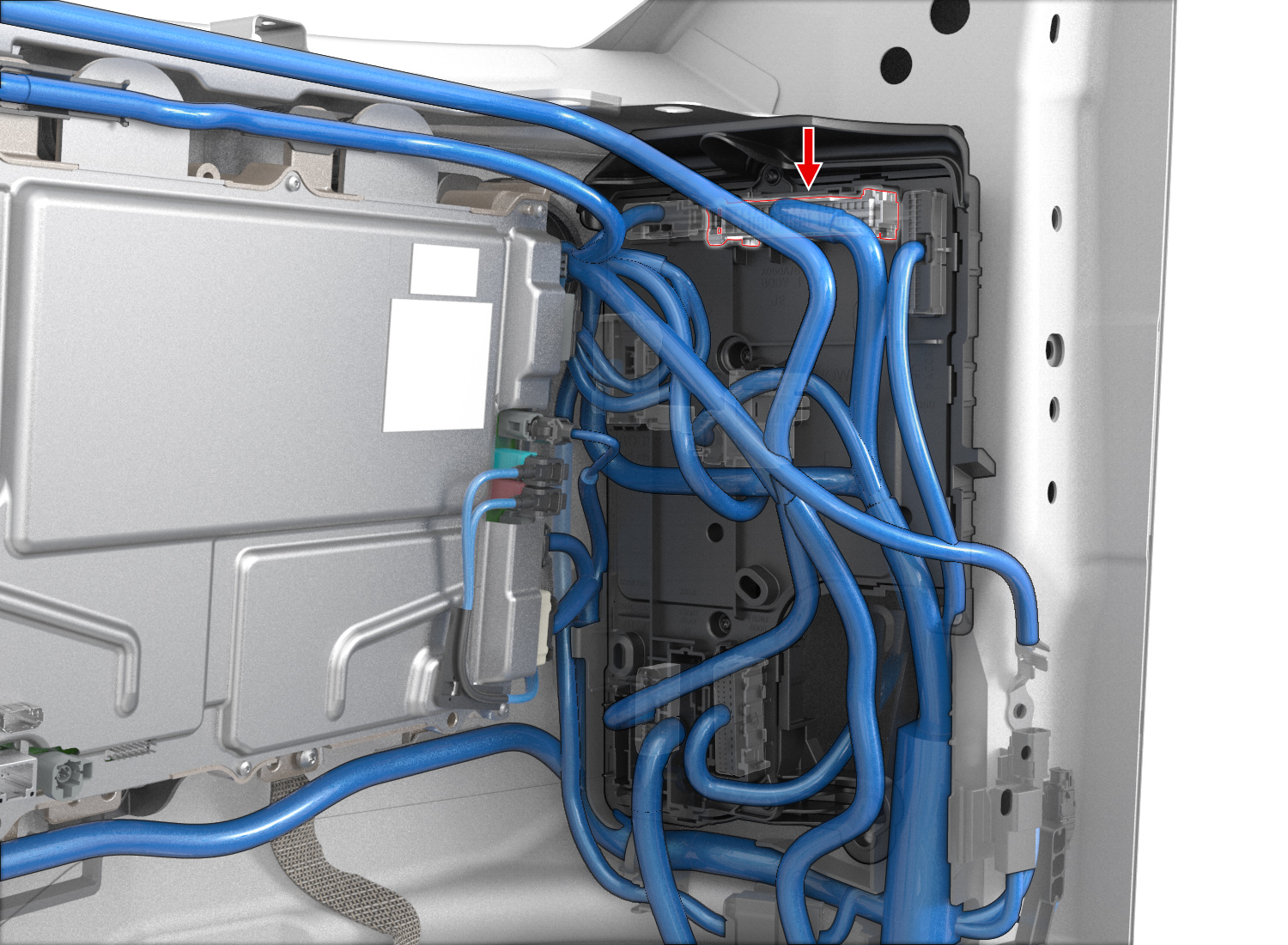

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	unused
4	unused
5	unused
6	unused
7	unused
8	unused
9	unused
10	unused
11	unused
12	SUMITOMO	8240-0213	1.5x0.64F	GY	1.00			X954M	20
13	SUMITOMO	8240-0213	1.5x0.64F	RD	1.00			X954M	11
14	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35			X674	2
15	SUMITOMO	8240-0215	1.5x0.64F	BN	0.50			X926F	4
16	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35			X962M	9
17	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X962M	2
18	unused
19	SUMITOMO	8240-0213	1.5x0.64F	TN	1.00			X098	18
20	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X494	2
21	unused
22	unused
23	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X970M	6
24	unused
25	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X926F	6
26	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X167A	2
27	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X167A	6
28	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X167A	4
29	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X926F	2
30	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X926F	19
31	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X926F	12
32	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X954M	3
33	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X098	15
34	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X098	16
35	unused
36	SUMITOMO	8100-3625	0.64x0.64F	RD/WH	0.35			X954M	15
37	SUMITOMO	8100-3625	0.64x0.64F	YE/GN	0.35			X954M	14
38	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X954M	5
39	SUMITOMO	8240-0213	1.5x0.64F	YE	0.75			X098	8
40	unused
41	unused
42	unused
43	unused
44	unused
45	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X562	1
46	unused
47	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X949M	1
48	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X926F	5
49	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X167A	5
50	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X167A	1
51	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X167A	3
52	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X954M	4
53	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X926F	3
54	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X926F	13
55	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X179	10
56	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X179	9
57	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X952M	7
58	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X952M	6
59	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X952M	12
60	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X952M	11
61	unused
62	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X354	8
63	SUMITOMO	8240-0214	1.5x0.64F	VT	2.00			X354	5
