X053A

Tesla Part Number

1800524-01-A

Connector

YAZAKI 7287-1673

Color

NA

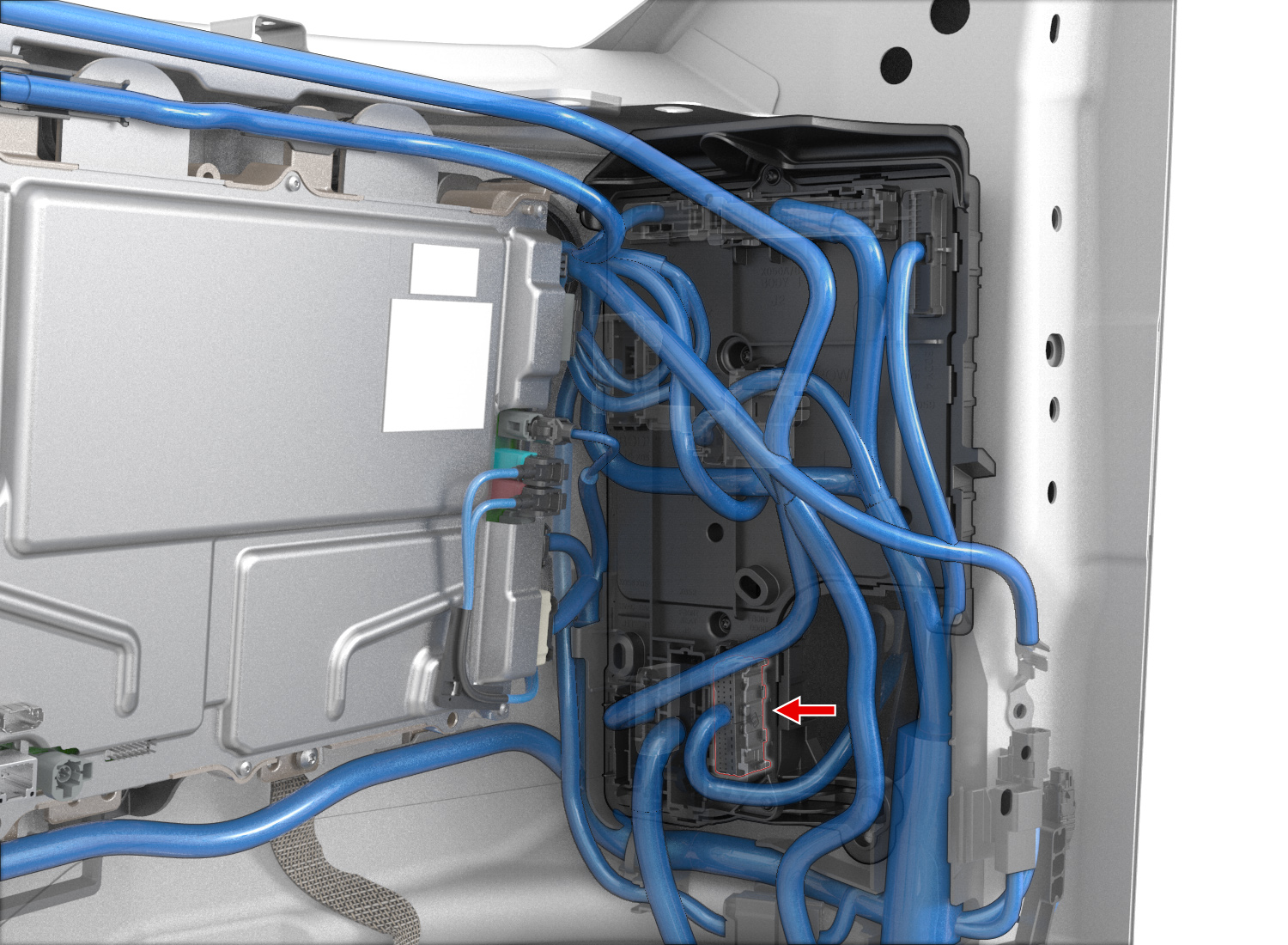

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7116-5751-02	1.5x0.8F	RD	1.50			X403	5
2	YAZAKI	7116-5751-02	1.5x0.8F	TN	1.50			X403	1
3	YAZAKI	7116-5749-02	1.5x0.8F	BU	0.35			X410	3
4	YAZAKI	7116-5749-02	1.5x0.8F	WH	0.35			X410	4
5	YAZAKI	7116-5750-02	1.5x0.8F	VT	0.75			X923M	1
6	YAZAKI	7116-5750-02	1.5x0.8F	BU	0.75			X923M	12
7	YAZAKI	7116-3153-02	0.64x0.64F	GN	0.35			X403	2
8	YAZAKI	7116-3153-02	0.64x0.64F	VT	0.35			X923M	5
9	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X923M	14
10	YAZAKI	7116-3153-02	0.64x0.64F	YE	0.35			X923M	16
11	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X923M	7
12	YAZAKI	7116-3153-02	0.64x0.64F	VT	0.35			X410	8
13	YAZAKI	7116-3153-02	0.64x0.64F	TN	0.35			X397	2
14	YAZAKI	7116-3153-02	0.64x0.64F	YE	0.35			X923M	4
15	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X923M	19
16	YAZAKI	7116-3153-02	0.64x0.64F	BU	0.35			X403	4
17	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X406	12
18	YAZAKI	7116-3153-02	0.64x0.64F	TN	0.35			X406	5
19	YAZAKI	7116-3153-02	0.64x0.64F	VT	0.35			X923M	17
20	YAZAKI	7116-3153-02	0.64x0.64F	BU	0.35			X923M	15
21	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X397	4
22	YAZAKI	7116-3154-02	0.64x0.64F	VT	0.50			X923M	1
23	YAZAKI	7116-3154-02	0.64x0.64F	BU	0.50			X923M	12
24	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X410	1
