X053B

Tesla Part Number

1800524-02-A

Connector

YAZAKI 7287-1674

Color

NA

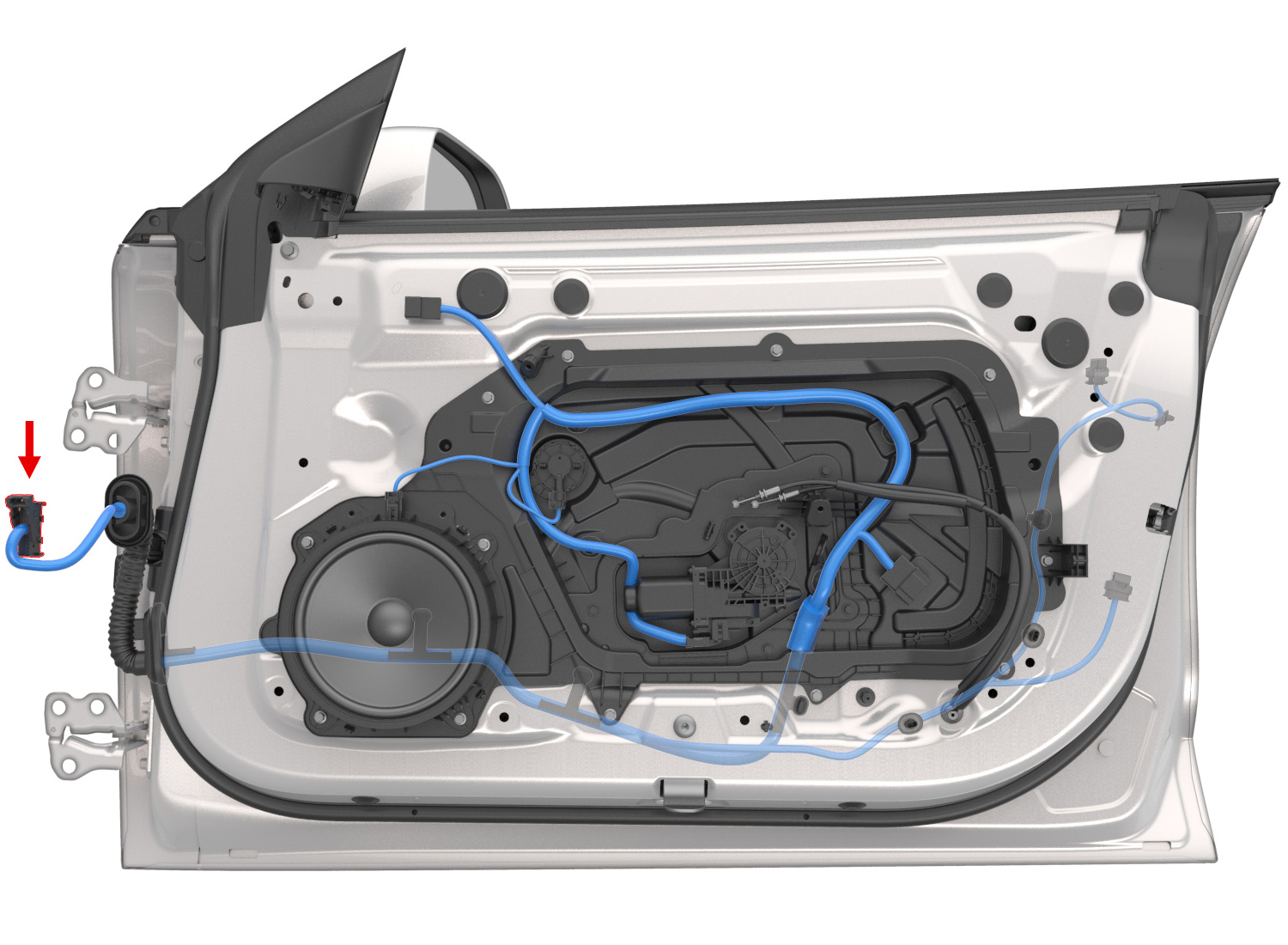

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7116-5750-02	1.5x0.8F	BU	1.00			X577	2
2	YAZAKI	7116-5750-02	1.5x0.8F	YE	1.00			X577	1
3	unused
4	YAZAKI	7116-5750-02	1.5x0.8F	BN	1.00
5	YAZAKI	7116-5750-02	1.5x0.8F	VT	1.00			X923M	20
6	YAZAKI	7116-5750-02	1.5x0.8F	GN	1.00			X923M	11
7	YAZAKI	7116-3153-02	0.64x0.64F	WH	0.35			X923M	9
8	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X406	4
9	YAZAKI	7116-3153-02	0.64x0.64F	BU	0.35			X923M	10
10	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X923M	8
11	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X406	2
12	YAZAKI	7116-3153-02	0.64x0.64F	WH	0.35			X406	3
13	YAZAKI	7116-3153-02	0.64x0.64F	VT	0.35			X406	9
14	YAZAKI	7116-3153-02	0.64x0.64F	YE	0.35			X406	8
15	unused
16	YAZAKI	7116-3153-02	0.64x0.64F	BK	0.35			X403	3
17	YAZAKI	7116-3153-02	0.64x0.64F	GN	0.35			X923M	18
18	YAZAKI	7116-3153-02	0.64x0.64F	TN	0.35			X205	1
19	YAZAKI	7116-3153-02	0.64x0.64F	GN	0.35			X205	2
20	unused
21	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X406	14
22	YAZAKI	7116-3153-02	0.64x0.64F	TN	0.35			X406	1
23	YAZAKI	7116-3153-02	0.64x0.64F	BU	0.35			X406	10
24	unused
