X154A

Tesla Part Number

1516302-00-A

Connector

MOLEX 33482-4801

Color

BK

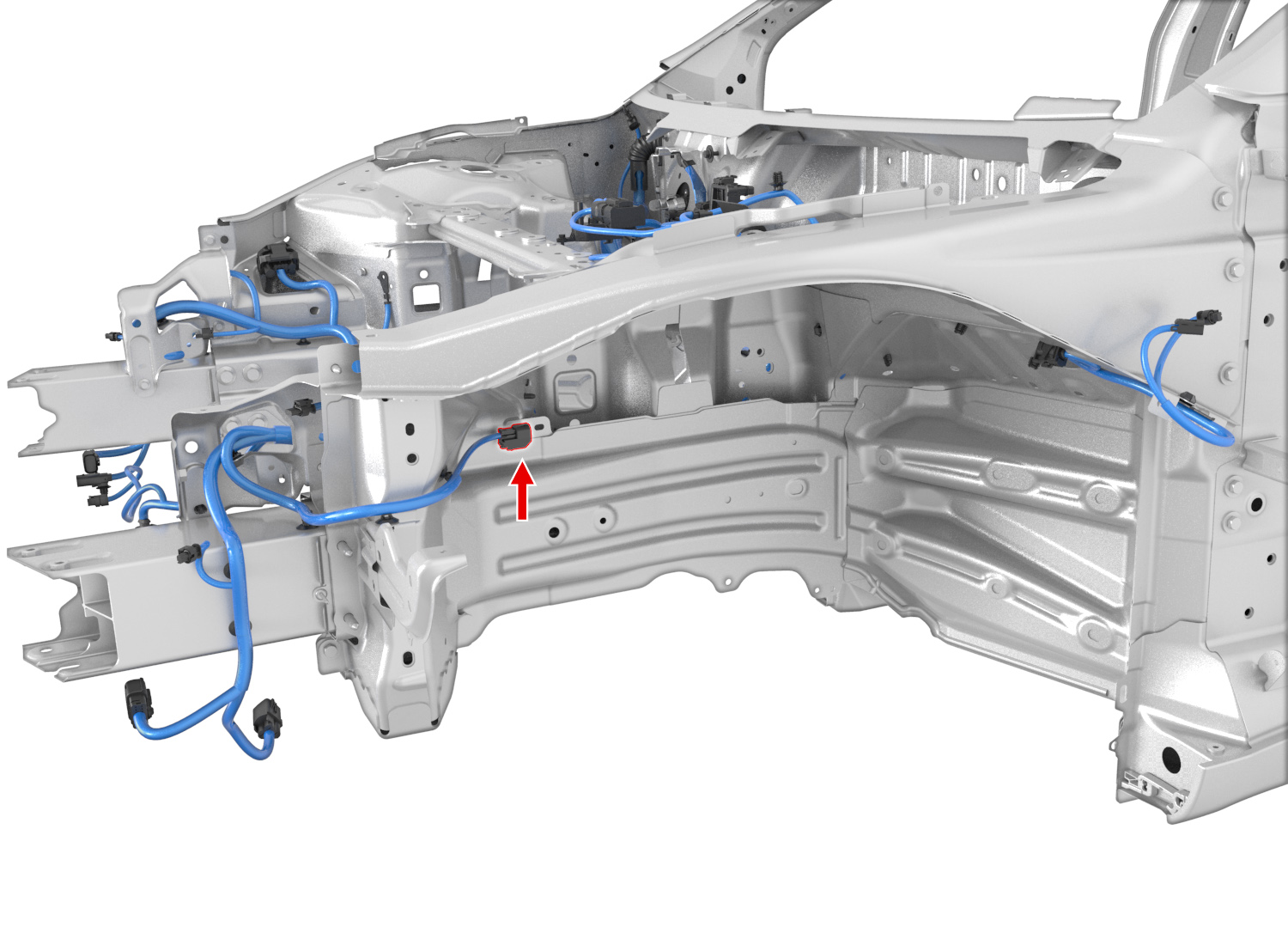

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X155A	4
2	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X155A	3
3	unused
4	unused
5	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X057	16
6	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X057	17
7	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X151	24
8	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X151	7
