X155A

Tesla Part Number

1516302-00-A

Connector

MOLEX 33482-4801

Color

BK

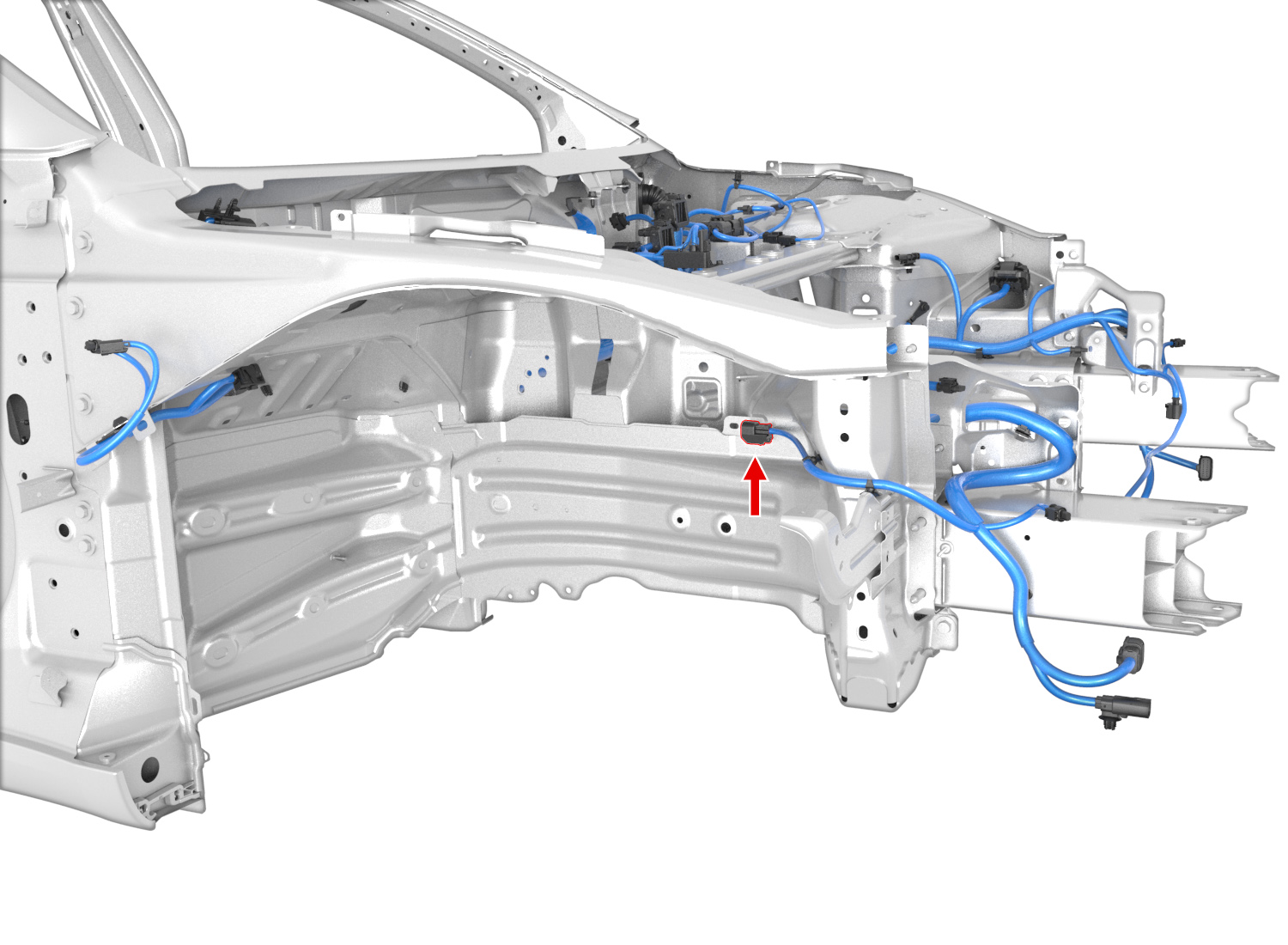

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X057	21
2	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X057	20
3	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X154A	2
4	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X154A	1
5	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X057	5
6	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X057	4
7	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X151	21
8	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X151	26
