X157A

Tesla Part Number

1555679-00-A

Connector

MOLEX 33472-4806

Color

BK

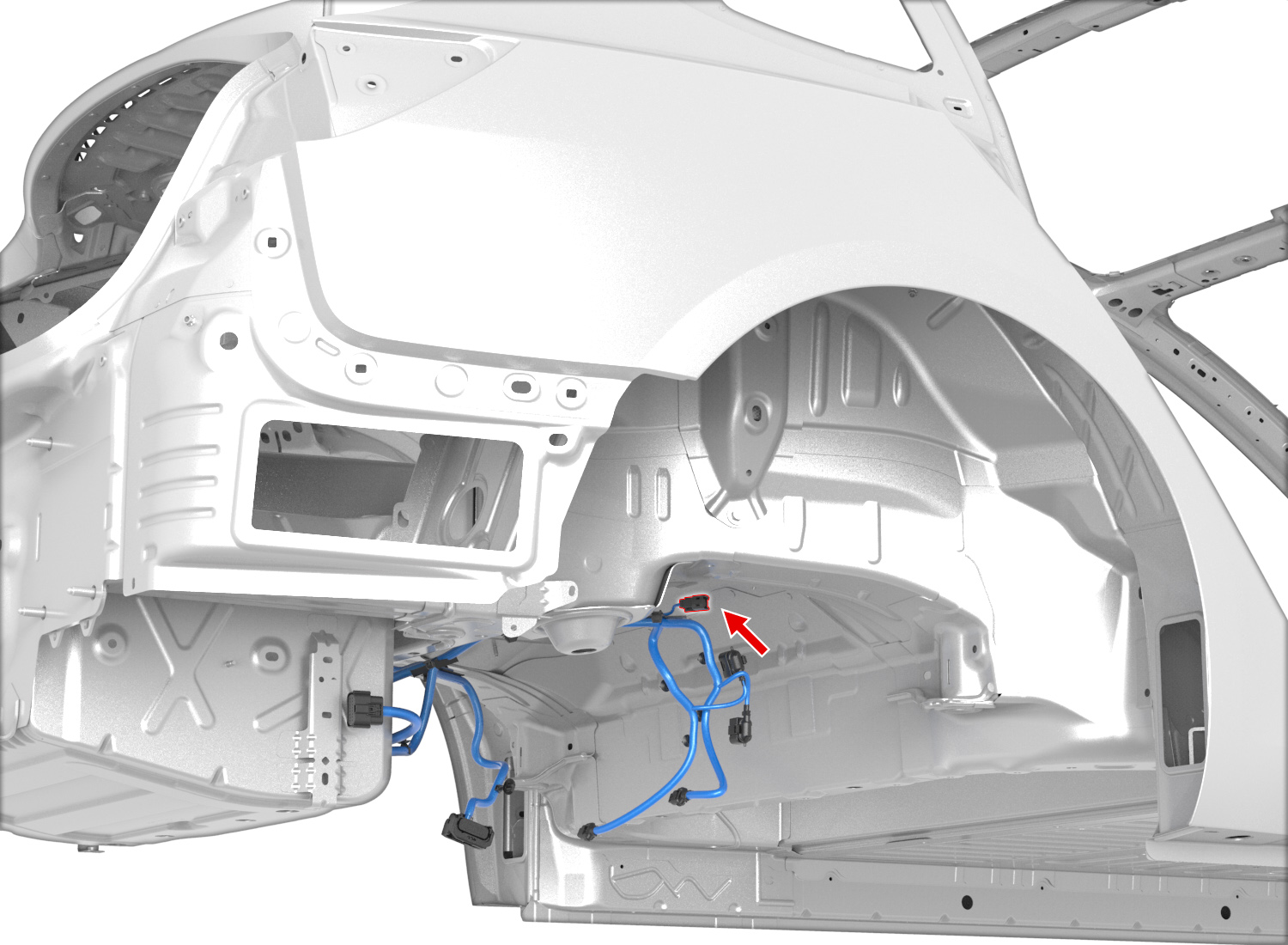

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X952F	12
2	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X952F	11
3	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X156A	2
4	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X156A	1
5	unused
6	unused
7	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X952F	4
8	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X952F	5
