X173A

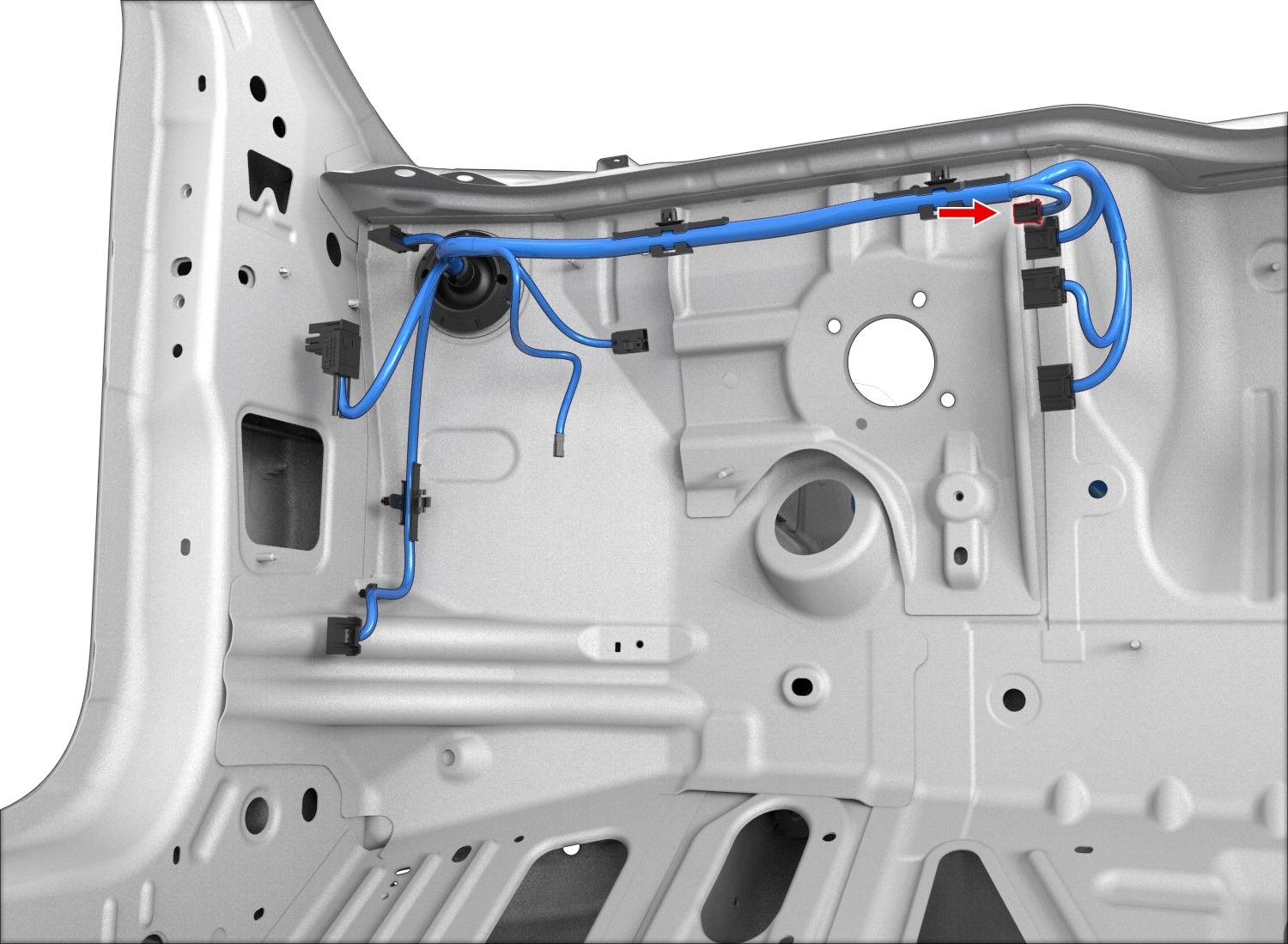

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMPHENOL | 10155447-111LF | 1.72x0.9F | VT | 0.35 | X181 | 11 | ||
| 2 | AMPHENOL | 10155447-111LF | 1.72x0.9F | YE | 0.35 | X181 | 12 | ||
| 3 | unused | ||||||||
| 4 | AMPHENOL | 10155447-111LF | 1.72x0.9F | RD | 0.35 | X908F | 9 | ||
| 5 | AMPHENOL | 10155447-111LF | 1.72x0.9F | WH | 0.35 | X181 | 3 | ||
| 6 | AMPHENOL | 10155447-111LF | 1.72x0.9F | BU | 0.35 | X181 | 13 | ||
| 7 | AMPHENOL | 10155447-111LF | 1.72x0.9F | YE | 0.35 | X908F | 2 | ||
| 8 | unused | ||||||||
