X175

Tesla Part Number

1660467-00-A

Connector

HIROSE GT25-16DS-HU

Color

BK

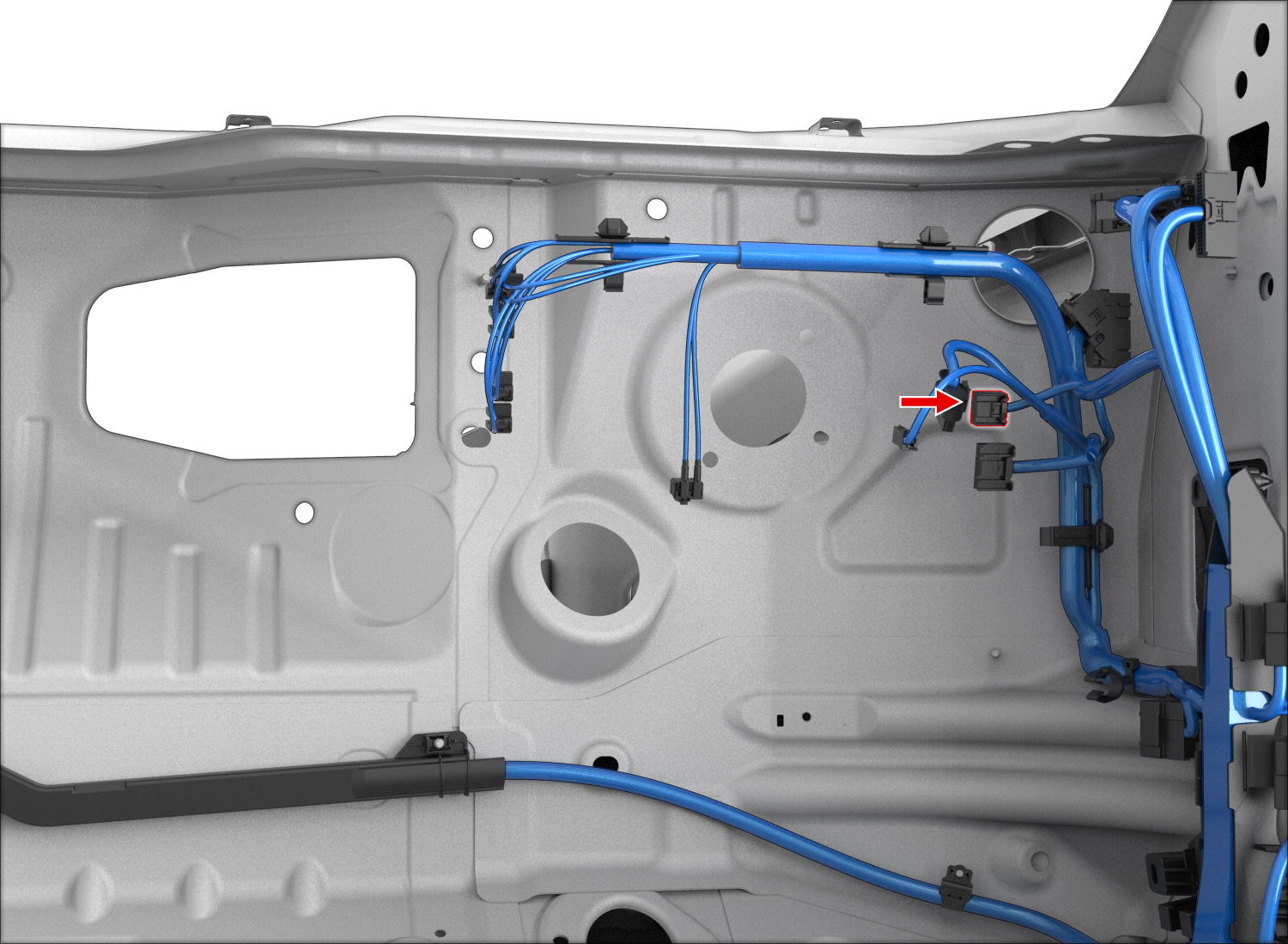

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	HIROSE	GT25H-2024SCF	0.64F	BK	0.50			X051	33
4	HIROSE	GT25H-2024SCF	0.64F	TN	0.50			X051	34
5	HIROSE	GT25H-2024SCF	0.64F	YE/LTBU	0.35			X051	12
6	HIROSE	GT25H-2024SCF	0.64F	YE	0.35			X051	28
7	HIROSE	GT25H-2024SCF	0.64F	GN	0.50			X908M	5
8	HIROSE	GT25H-2024SCF	0.64F	BU	0.50			X908M	6
9	HIROSE	GT25H-2024SCF	0.64F	VT	0.50			X051	31
10	HIROSE	GT25H-2024SCF	0.64F	YE	0.50			X051	32
11	HIROSE	GT25H-2024SCF	0.64F	GY	0.35			X562	7
12	HIROSE	GT25H-2024SCF	0.64F	BU	0.35			X562	9
13	HIROSE	GT25H-2024SCF	0.64F	RD	0.50			X936M	1
14	HIROSE	GT25H-2024SCF	0.64F	BK	0.50			X936M	15
15	HIROSE	GT25H-2024SCF	0.64F	WH	0.35			X607	4
16	HIROSE	GT25H-2024SCF	0.64F	VT	0.35			X607	3
