X181

Tesla Part Number

1473341-00-A

Connector

AMP 179631-2

Color

BK

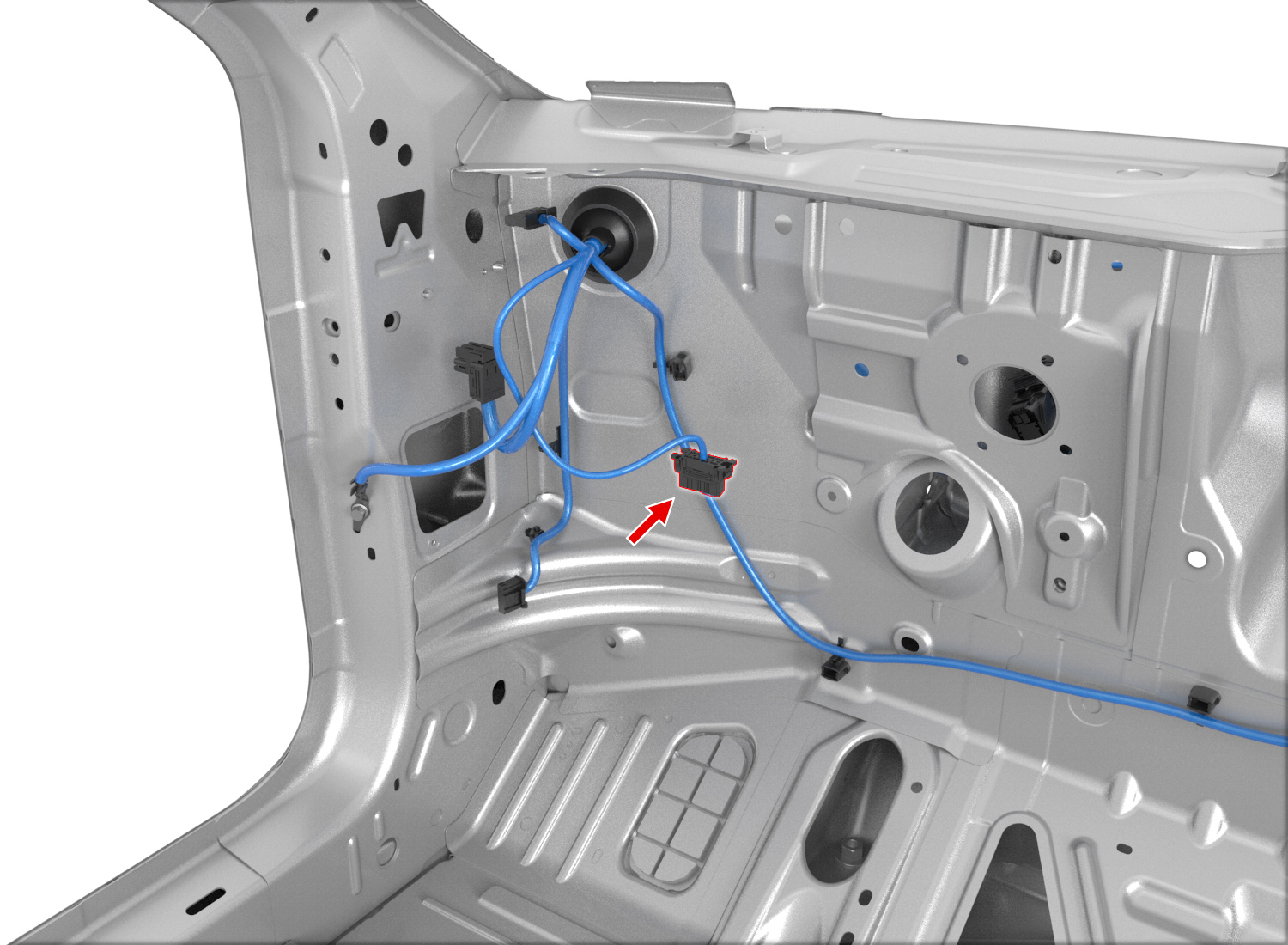

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	AMP	776001-1	1.5	WH	0.35			X173	5
4	AMP	776001-1	1.5	BN	0.50
5	AMP	776001-1	1.5	BN	0.50
6	AMP	776001-1	1.5	TN	0.35			X037	23
7	unused
8	AMP	776001-1	1.5	YE	0.35			X037	26
9	unused
10	unused
11	AMP	776001-1	1.5	VT	0.35			X173	1
12	AMP	776001-1	1.5	YE	0.35			X173A	2
13	AMP	776001-1	1.5	BU	0.35			X173A	6
14	AMP	776001-1	1.5	VT	0.35			X037	22
15	unused
16	AMP	776001-1	1.5	RD	0.50			X037	27
