X193

Tesla Part Number
1496688-00-A
Connector
DELPHI 35126369
Color
BK

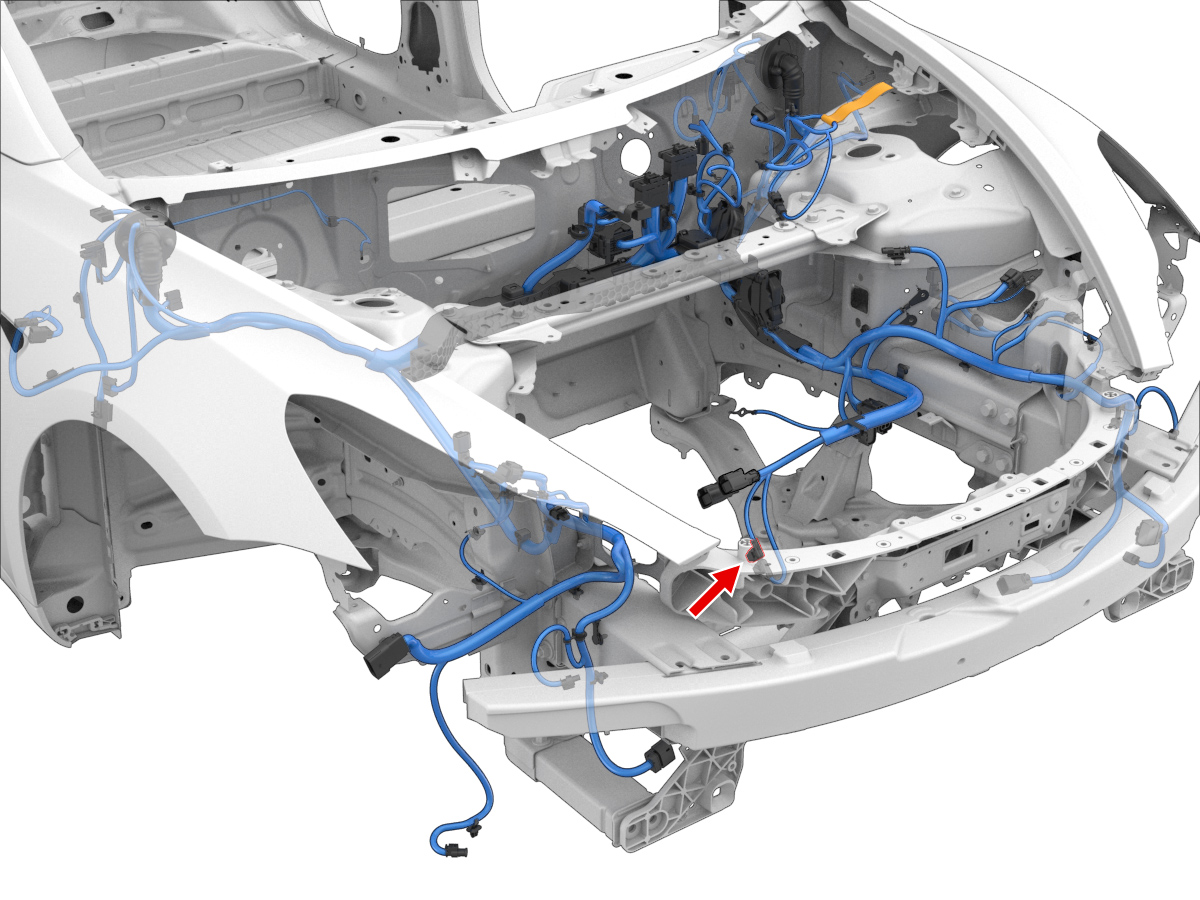

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591201.2x0.6FSYE0.35DELPHI13887349X01017
2DELPHI139591201.2x0.6FSDKGN/WH0.35DELPHI13887349
3DELPHI139591201.2x0.6FSGN0.35DELPHI13887349
