X195_1

Tesla Part Number

1507844-00-A

Connector

MOLEX 560123-1200

Color

WH

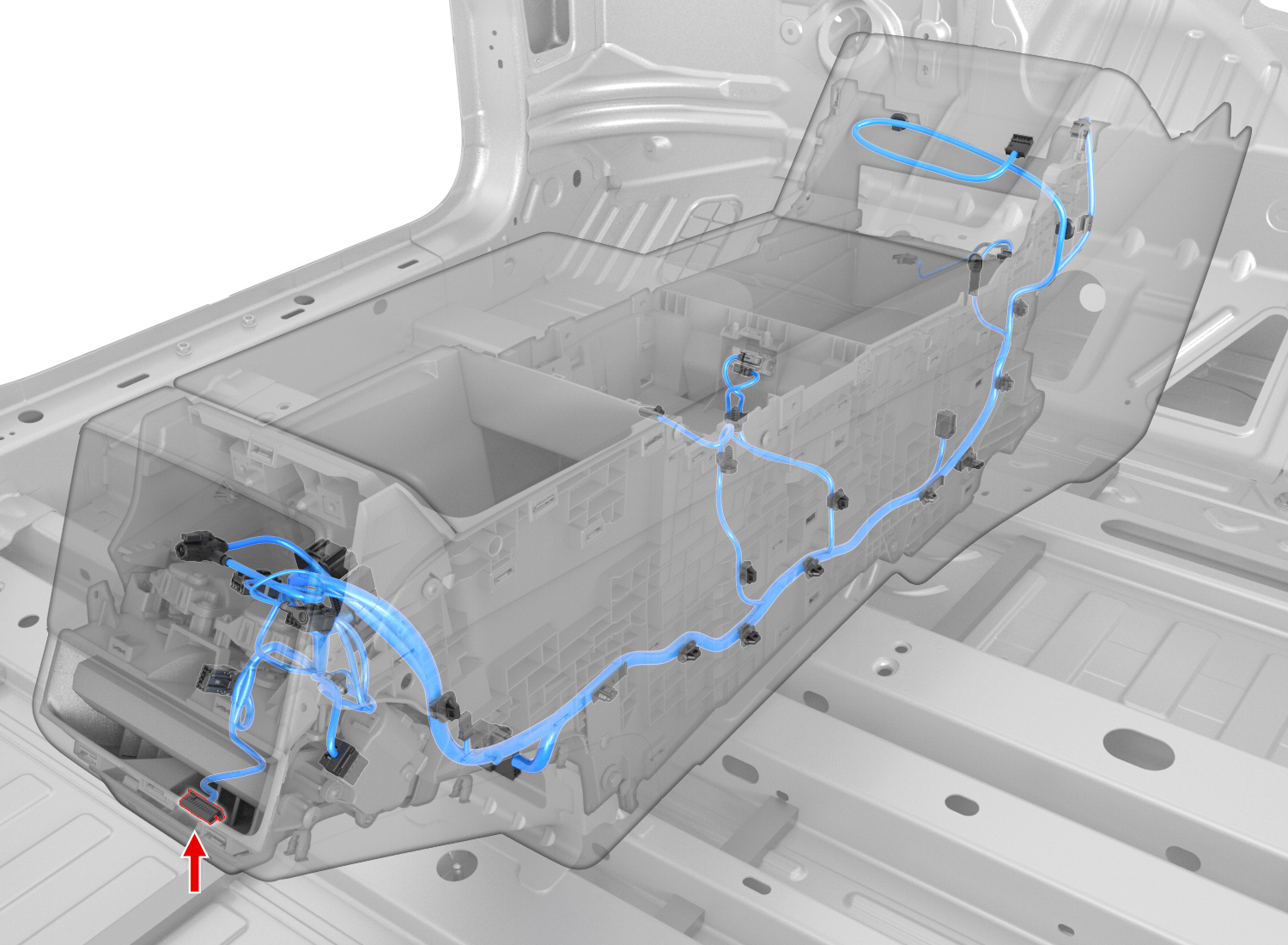

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	560124-0101	0.5F	GY	0.35			X501_1	2
2	MOLEX	560124-0101	0.5F	BN	0.35			X501_1	3
3	MOLEX	560124-0101	0.5F	WH	0.35			X501_1	4
4	MOLEX	560124-0101	0.5F	BU	0.35			X501_1	5
5	MOLEX	560124-0101	0.5F	VT	0.35			X501_1	7
6	MOLEX	560124-0101	0.5F	YE	0.35			X501_1	6
7	MOLEX	560124-0101	0.5F	BU	0.35			X501_1	11
8	MOLEX	560124-0101	0.5F	GY	0.35			X501_1	10
9	MOLEX	560124-0101	0.5F	VT	0.35			X501_1	9
10	MOLEX	560124-0101	0.5F	WH	0.35			X501_1	8
11	MOLEX	560124-0101	0.5F	BN	0.35			X501_1	12
12	MOLEX	560124-0101	0.5F	RD	0.35			X501_1	13
