X265

Tesla Part Number

1506109-00-A

Connector

DELPHI 13890301

Color

BK

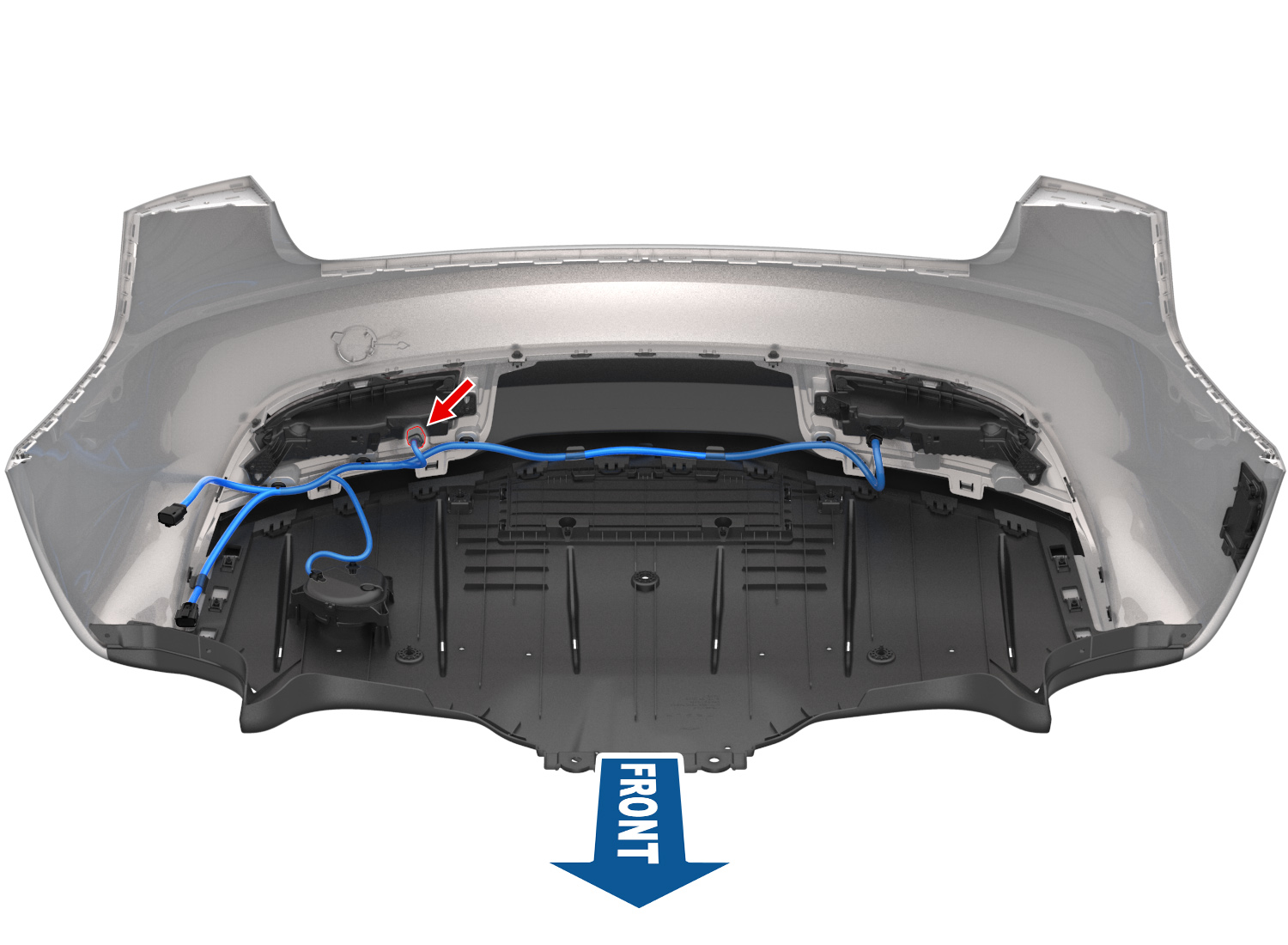

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35410019	1.2x0.6F	BU	0.35	TESLA	MAT-120-190	X949F	10
2	DELPHI	35410019	1.2x0.6F	GY	0.35	TESLA	MAT-120-190	X949F	5
3	DELPHI	35410019	1.2x0.6F	RD	0.35	TESLA	MAT-120-190	X949F	9
4	DELPHI	35410019	1.2x0.6F	VT	0.35	TESLA	MAT-120-190	X264	5
5	DELPHI	35410019	1.2x0.6F	TN	0.35	TESLA	MAT-120-190	X264	1
6	DELPHI	35410019	1.2x0.6F	YE	0.35	TESLA	MAT-120-190	X949F	4
7	DELPHI	35410019	1.2x0.6F	WH	0.35	TESLA	MAT-120-190	X264	6
8	DELPHI	35072403	1.2x0.6F	BK	0.50	TESLA	MAT-120-190	X949F	11
