X273

Tesla Part Number
1496689-00-A
Connector
DELPHI 35126375
Color
BK

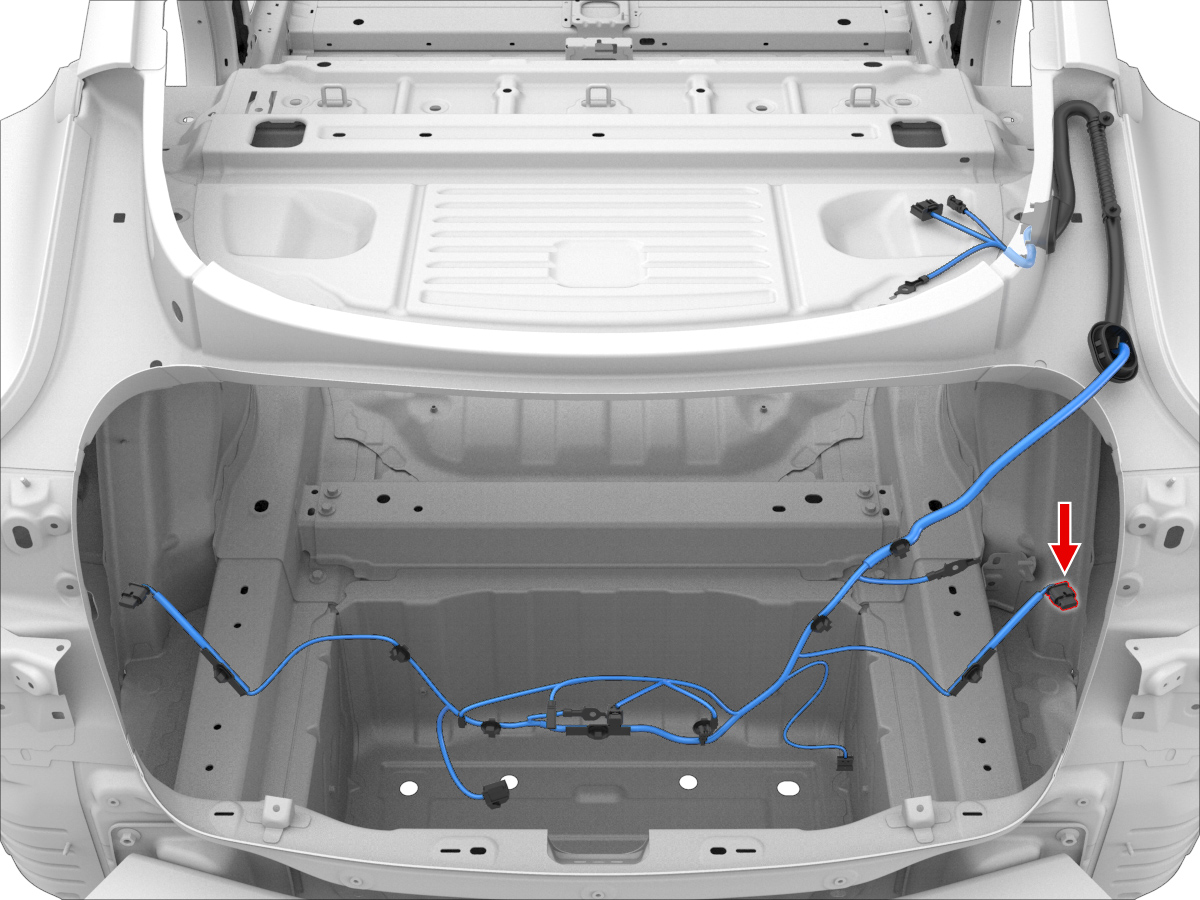

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591411.2x0.6FSBK0.50AMP967067-1G0451
2DELPHI139591201.2x0.6FSYE/GN0.35DELPHI13887349X954F14
3DELPHI139591201.2x0.6FSBU/WH0.35DELPHI13887349X954F3
4DELPHI139591201.2x0.6FSRD/WH0.35DELPHI13887349X954F15
