X284

Tesla Part Number
1509529-01-A
Connector
MOLEX 560123-0400
Color
WH

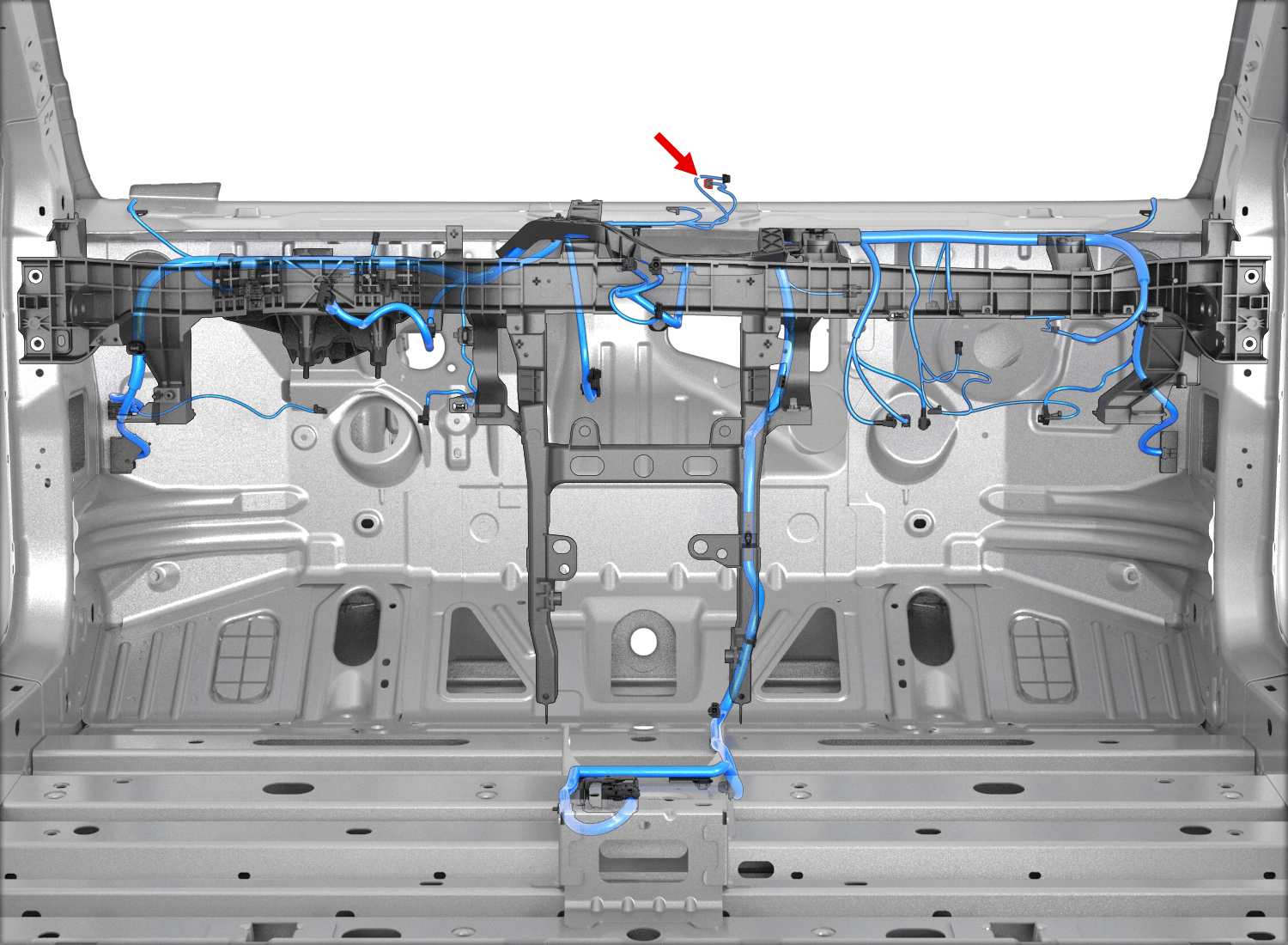

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1MOLEX560124-01010.5FGY0.35X03514
2unused
3MOLEX560124-01010.5FWH/GN0.35X2832
4MOLEX560124-01010.5FBN0.35
