X294

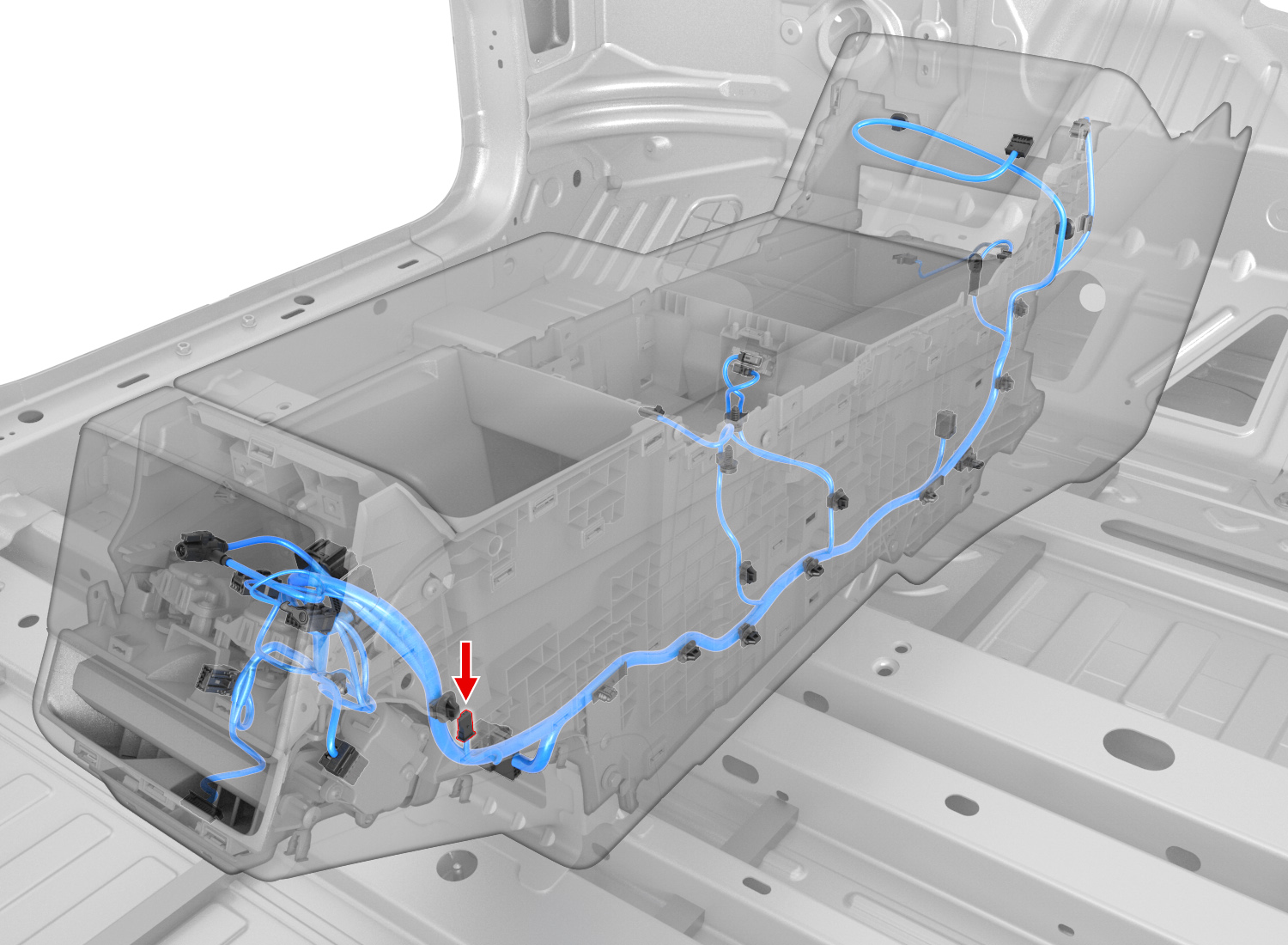

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | GEN | PIA-PIGTAIL | PIGTAIL | YE | 0.3f | X196 | 15 | ||
| 3 | GEN | PIA-PIGTAIL | PIGTAIL | BK | 0.3f | X292 | 1 | ||
