X408

Tesla Part Number
1509529-00-A
Connector
MOLEX 560123-0401
Color
BK

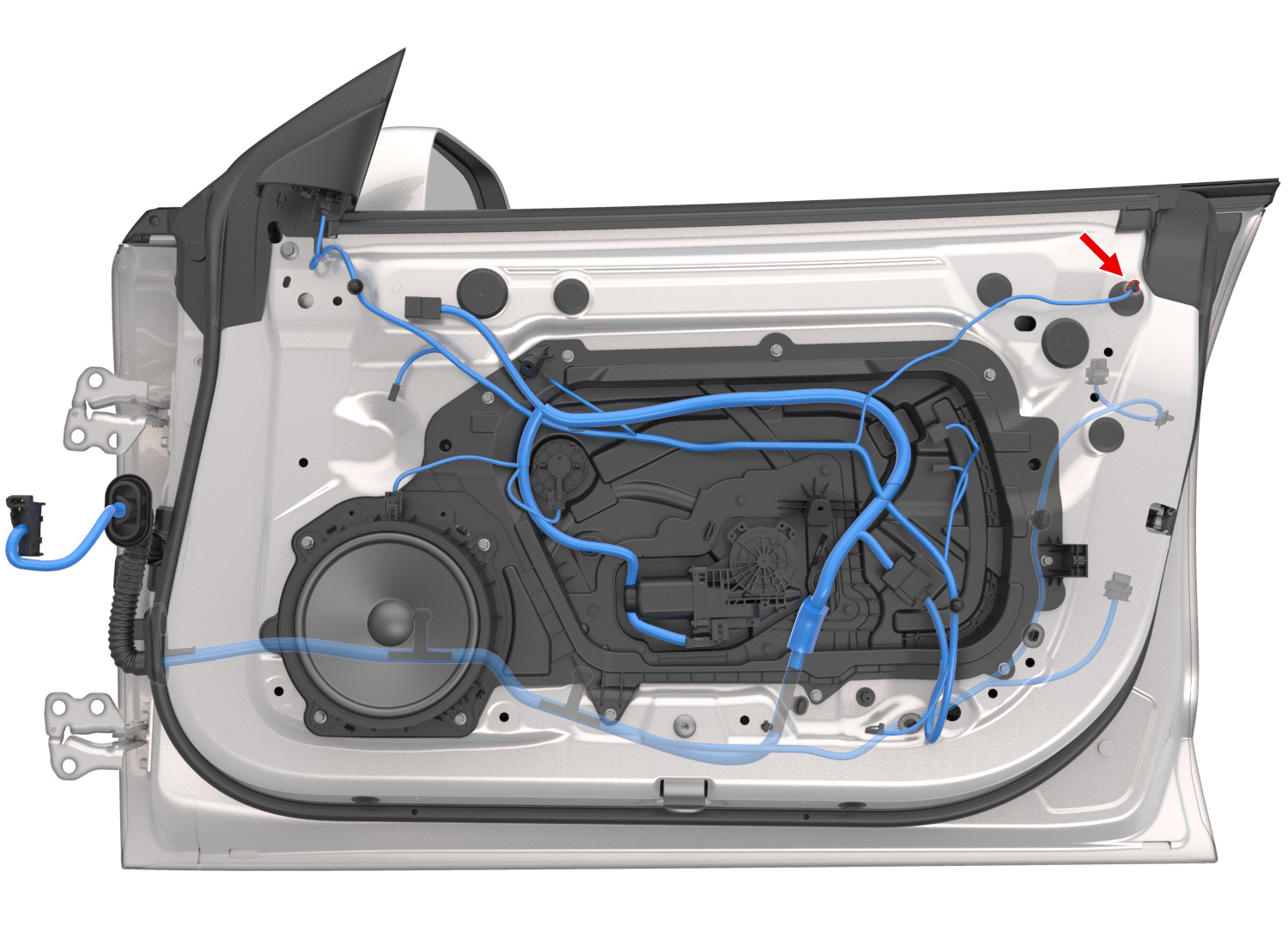

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1MOLEX560124-01010.5FRD0.35X923F19
2unused
3MOLEX560124-01010.5FGN0.35X923F18
4MOLEX560124-01010.5FBN0.35
