X419

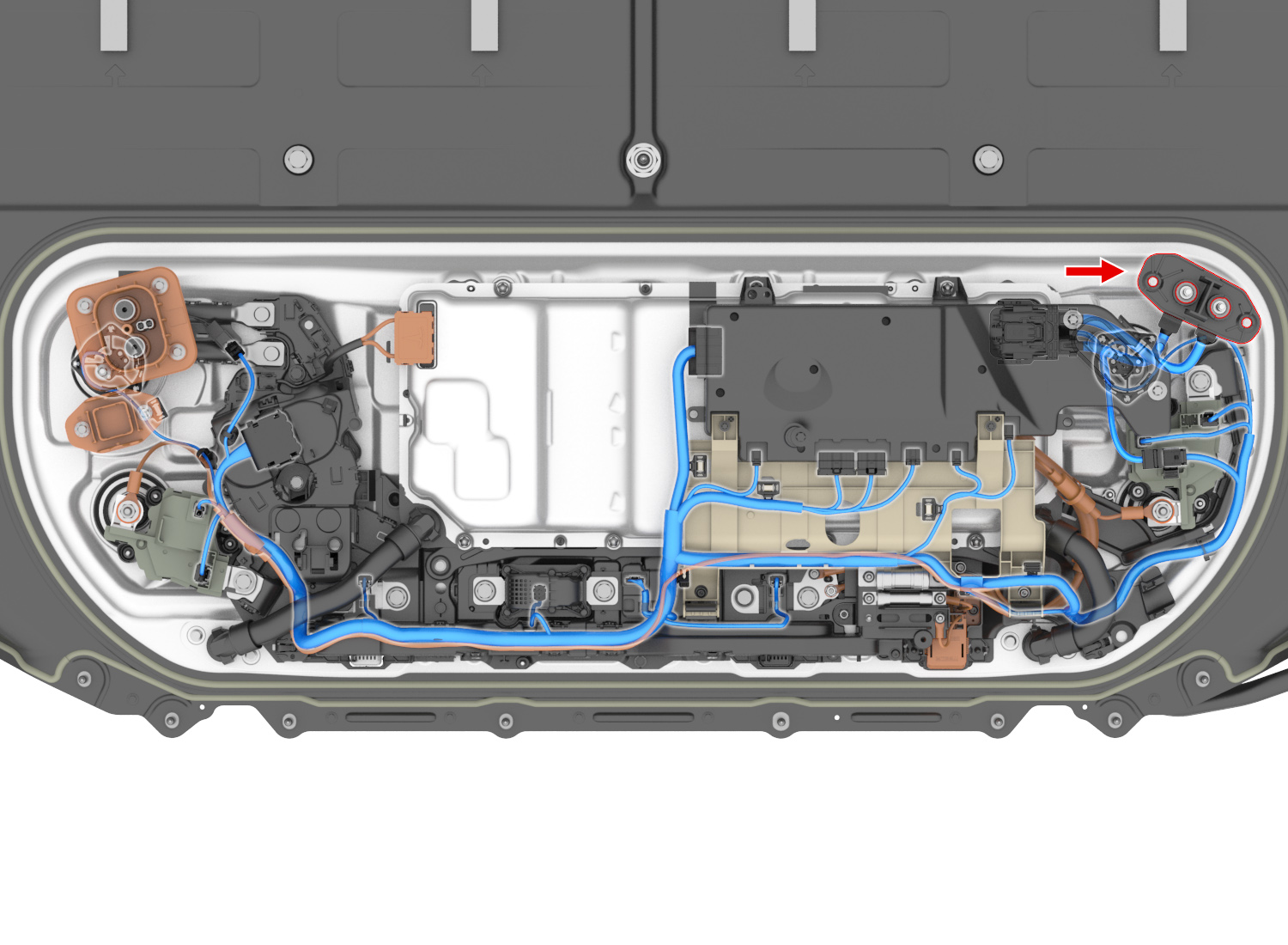

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| NEG | RSD | 1834359-00-A | M8 | BK | 35 | PIA | PIA-SEAL | X420 | 16 |
| POS | ROYAL DIE | 1478644-00-A | M8 | RD | 35 | PIA | PIA-SEAL | X420 | 15 |
