X420

Tesla Part Number

1787000-91-D

Connector

TESLA 1787000-91-D

Color

LB

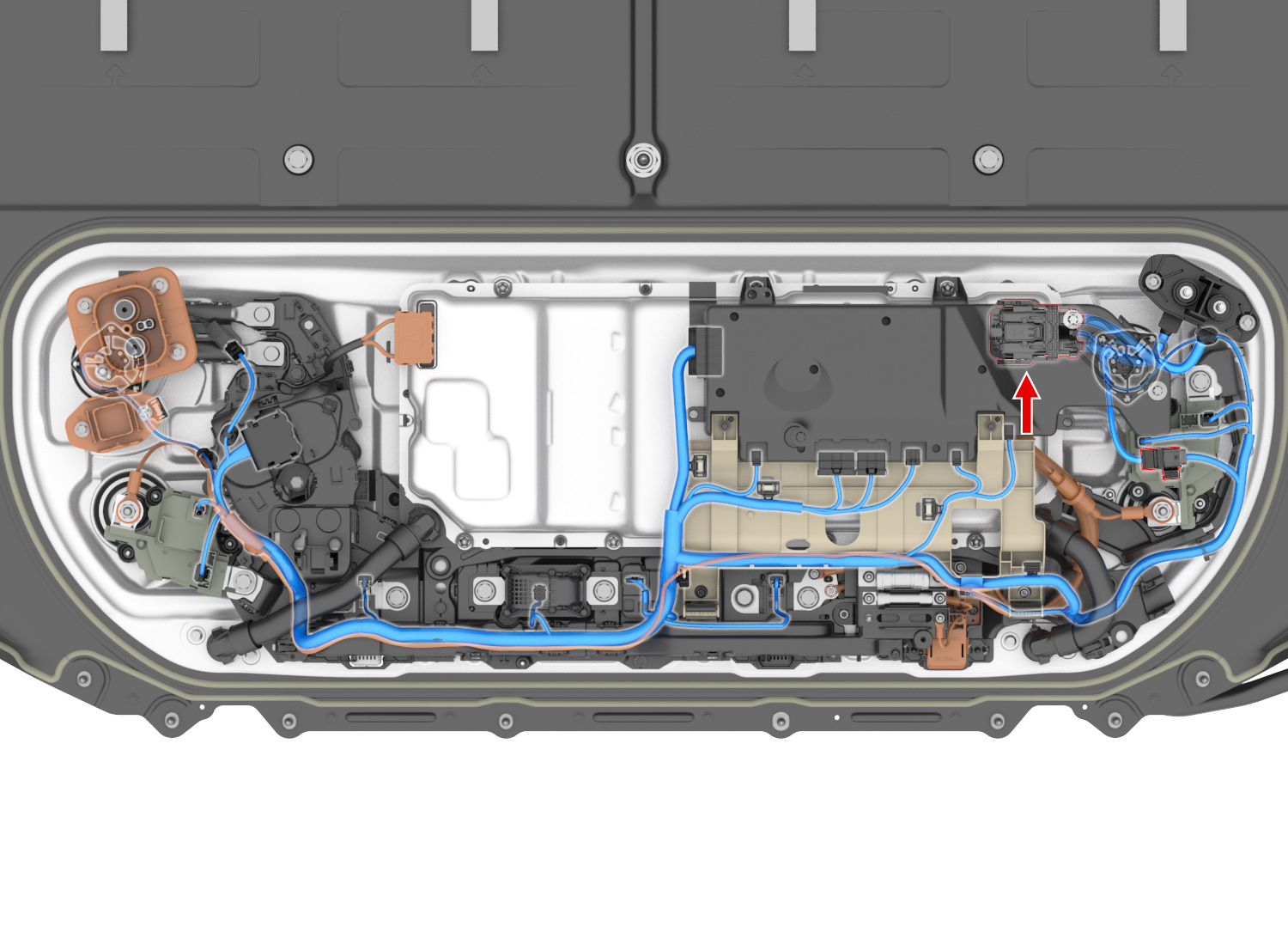

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0845	0.64x0.64F	YE	0.35	PIA	PIA-SEAL	X975M	5
2	SUMITOMO	8240-0845	0.64x0.64F	RD/BK	0.35	PIA	PIA-SEAL	X975M	6
3	unused
4	unused
5	SUMITOMO	8240-0845	0.64x0.64F	RD	0.35	PIA	PIA-SEAL	X975M	2
6	SUMITOMO	8240-0845	0.64x0.64F	WH	0.35	PIA	PIA-SEAL	X975M	1
7	unused
8	unused
9	SUMITOMO	8240-0845	0.64x0.64F	BN	0.35	PIA	PIA-SEAL	X975M	12
10	SUMITOMO	8240-0845	0.64x0.64F	YE	0.35	PIA	PIA-SEAL	X975M	3
11	unused
12	SUMITOMO	8240-0845	0.64x0.64F	WH	0.35	PIA	PIA-SEAL	X975M	11
13	SUMITOMO	8240-0845	0.64x0.64F	YE	0.35	PIA	PIA-SEAL	X975M	10
14	SUMITOMO	8240-0845	0.64x0.64F	WH	0.35	PIA	PIA-SEAL	X975M	4
15	TESLA	1787005-20-D	5-50mm2	RD	35	TESLA	1787004-64-C	X419	POS
16	TESLA	1787005-20-D	5-50mm2	BK	35	TESLA	1787004-64-C	X419	NEG
