X486

Tesla Part Number
1614532-00-A
Connector
AMP 2309873-1
Color
BK

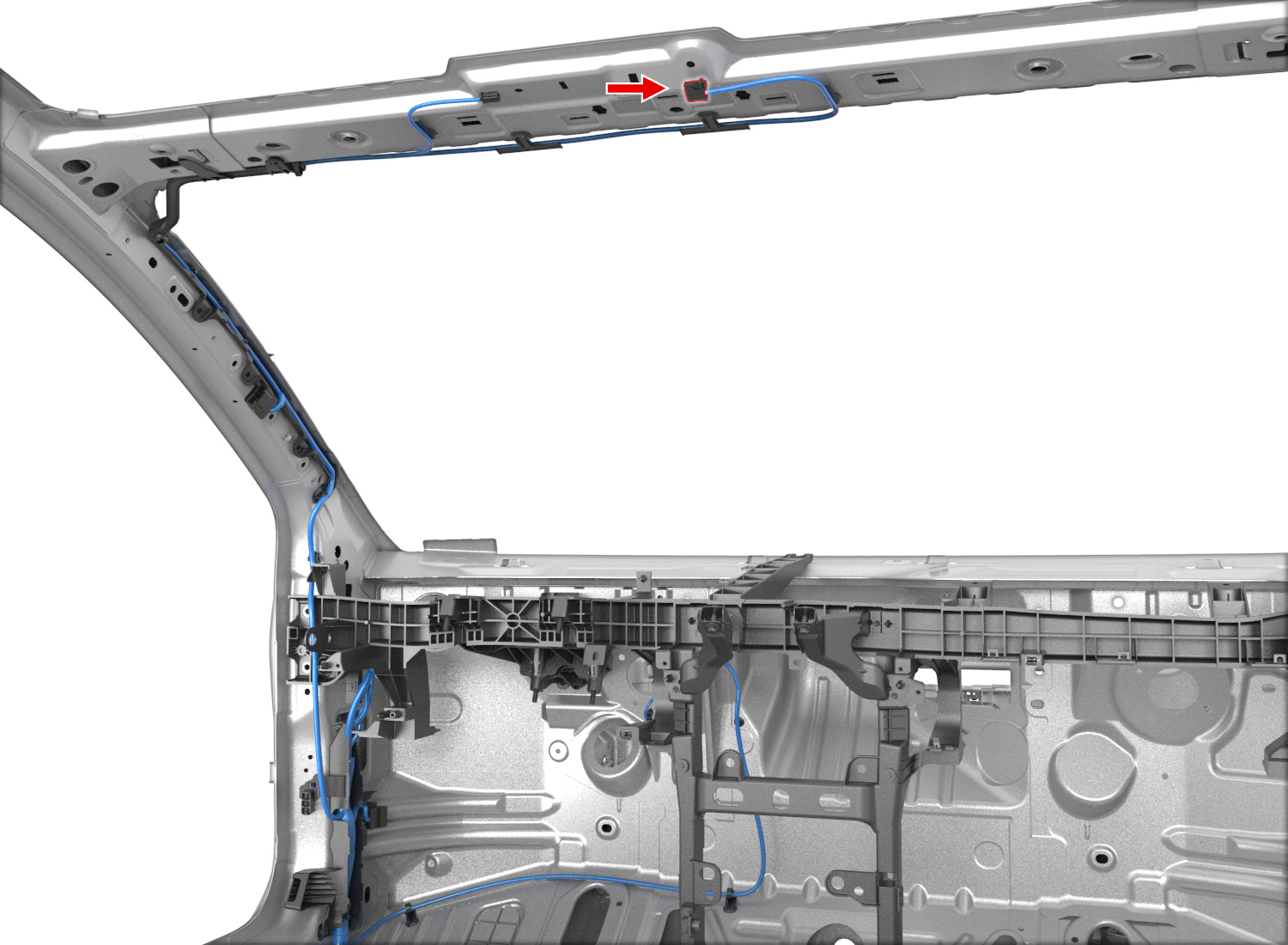

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
3AMP2-1703930-10.50x0.40FRD0.35X935F10
4AMP2-1703930-10.50x0.40FBK0.35G0318
5AMP2-1703930-10.50x0.40FRD0.35X909M6
6AMP2-1703930-10.50x0.40FBU0.35X909M5
7AMP2-1703930-10.50x0.40FBN0.35X030A16
8AMP2-1703930-10.50x0.40FBN/WH0.35X030A15
