X490

Tesla Part Number
1821297-00-A
Connector
AMP 2345104-1
Color
BK

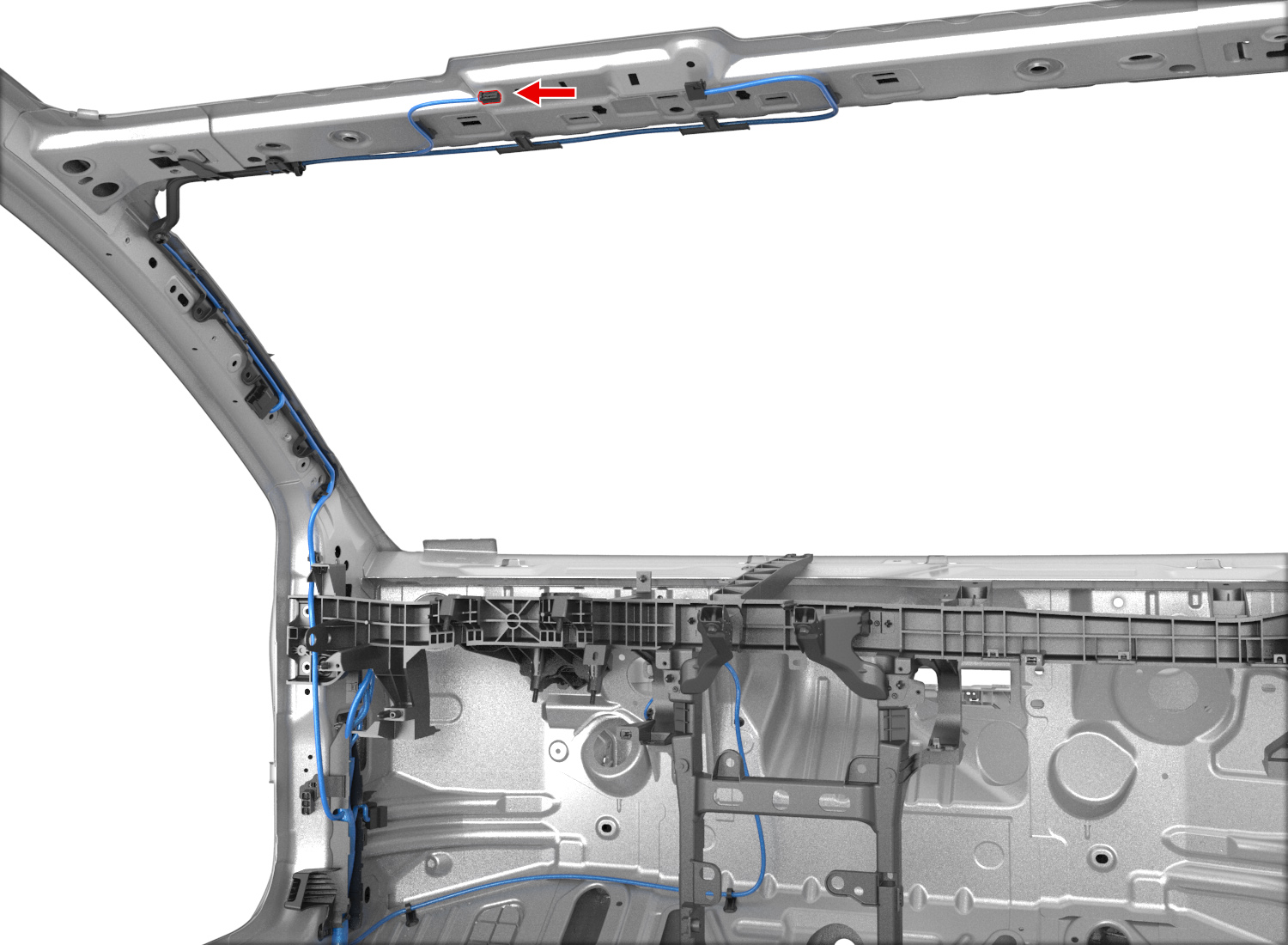

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2-1703930-10.50x0.40FVT0.35X03918
2AMP2-1703930-10.50x0.40FYE0.35X030A21
3AMP2-1703930-10.50x0.40FGY0.35X03919
4AMP2-1703930-10.50x0.40FBK0.35G0317
