X497

Tesla Part Number
1894422-00-A
Connector
HIRSCHMANN 805-122-531
Color
BK

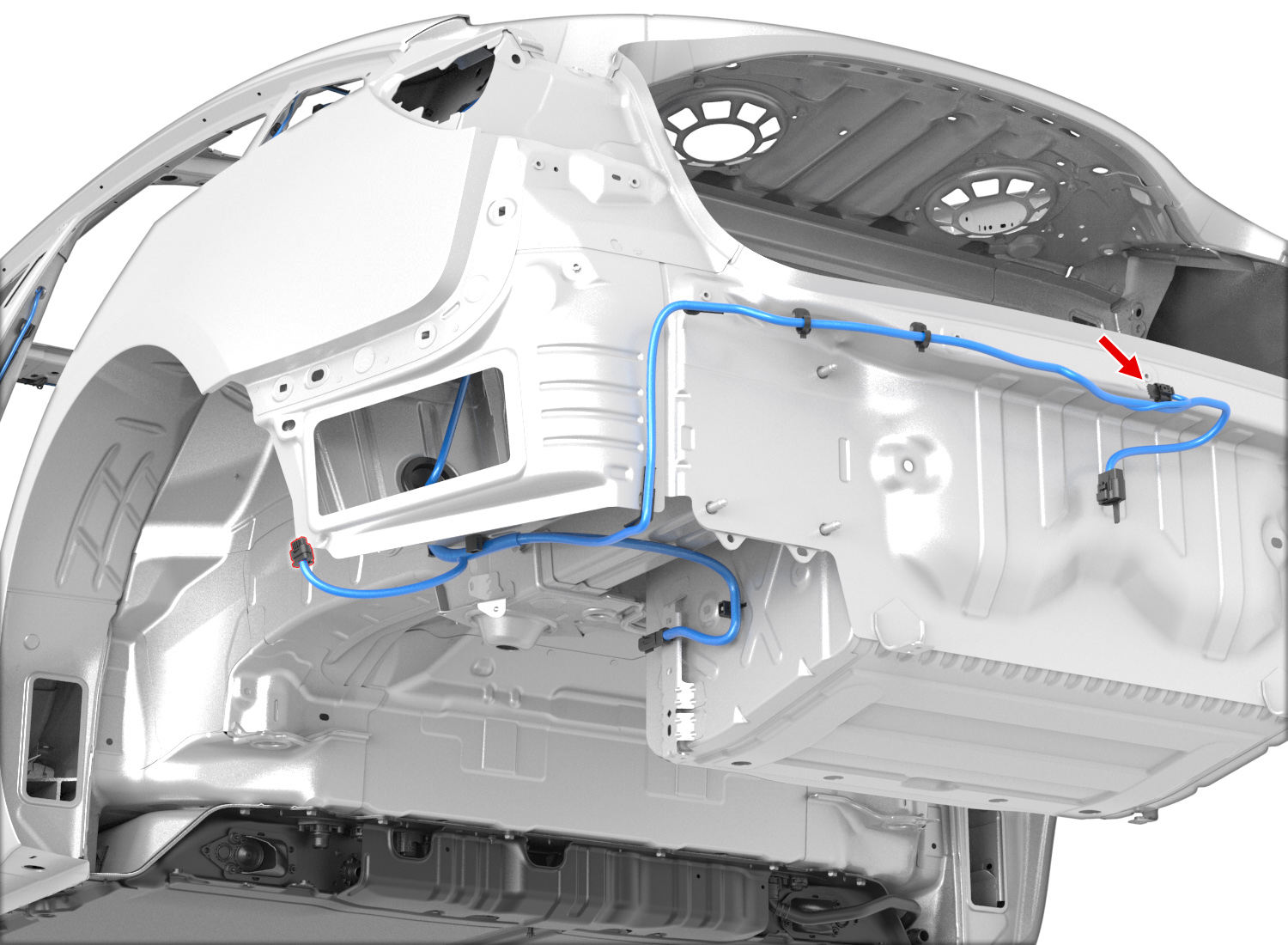

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591201.2x0.6FSWH0.35DELPHI13887349X03924
2DELPHI139591201.2x0.6FSGY0.35DELPHI13887349X03923
3DELPHI139591201.2x0.6FSBK0.35DELPHI13887349G0419
4DELPHI139591201.2x0.6FSRD0.35DELPHI13887349X030A25
