X501_1

Tesla Part Number

1768342-00-A

Connector

SUMITOMO 6098-4013

Color

NA

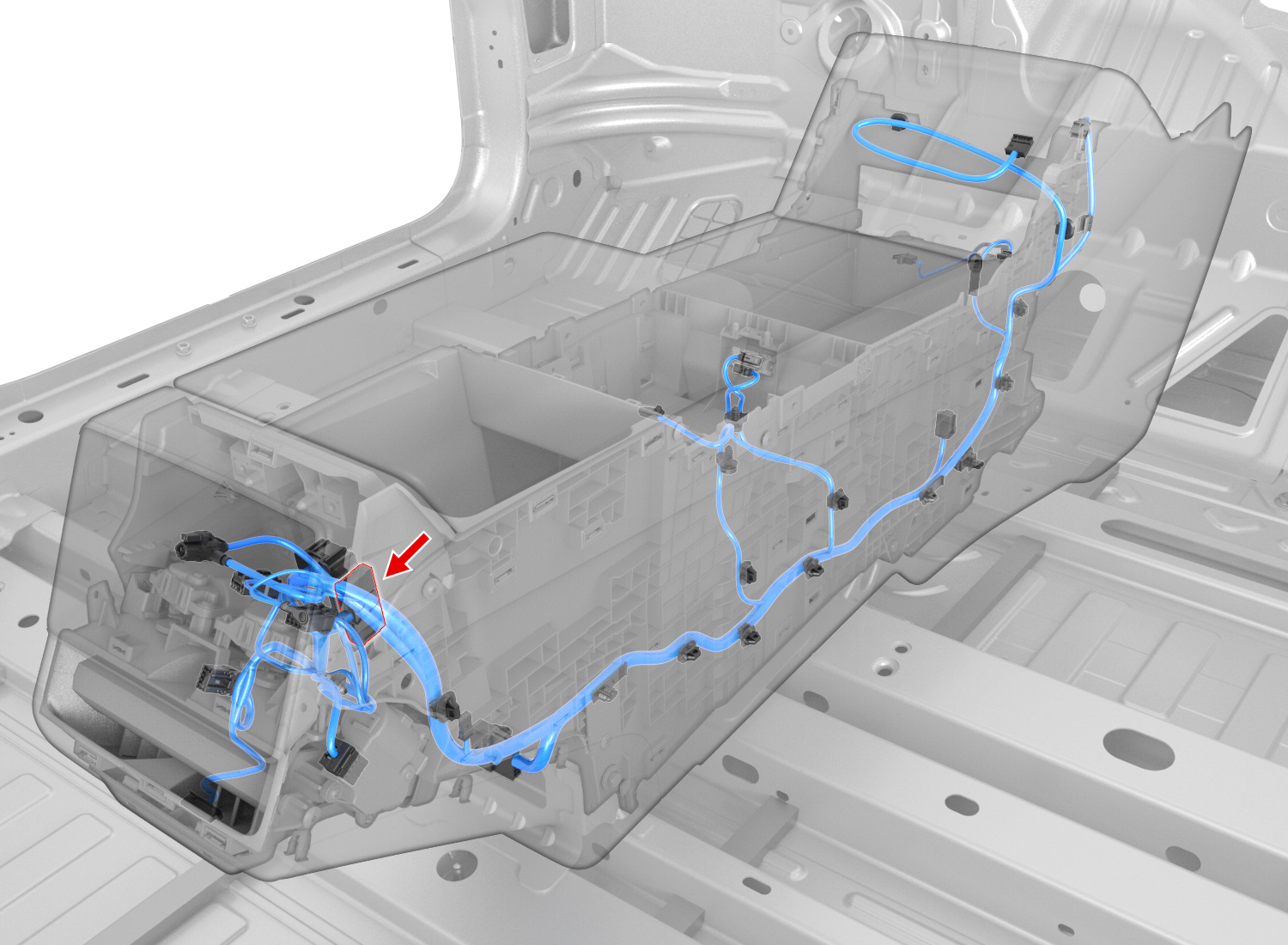

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X524	3
2	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X195_1	1
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X195_1	2
4	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X195_1	3
5	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X195_1	4
6	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X195_1	6
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X195_1	5
8	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X195_1	10
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X195_1	9
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X195_1	8
11	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X195_1	7
12	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X195_1	11
13	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X195_1	12
14	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X524	7
15	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X524	4
16	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X524	5
17	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X522	3
18	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X522	7
19	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X522	4
20	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X522	5
21	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X528	3
22	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X528	7
23	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X528	4
24	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X528	5
25	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X526	3
26	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X526	7
27	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X526	4
28	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X526	5
29	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X524	6
30	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X522	6
31	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X528	6
32	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X526	6
