X524

Tesla Part Number

1079658-01-A

Connector

KUM PH845-07020

Color

BK

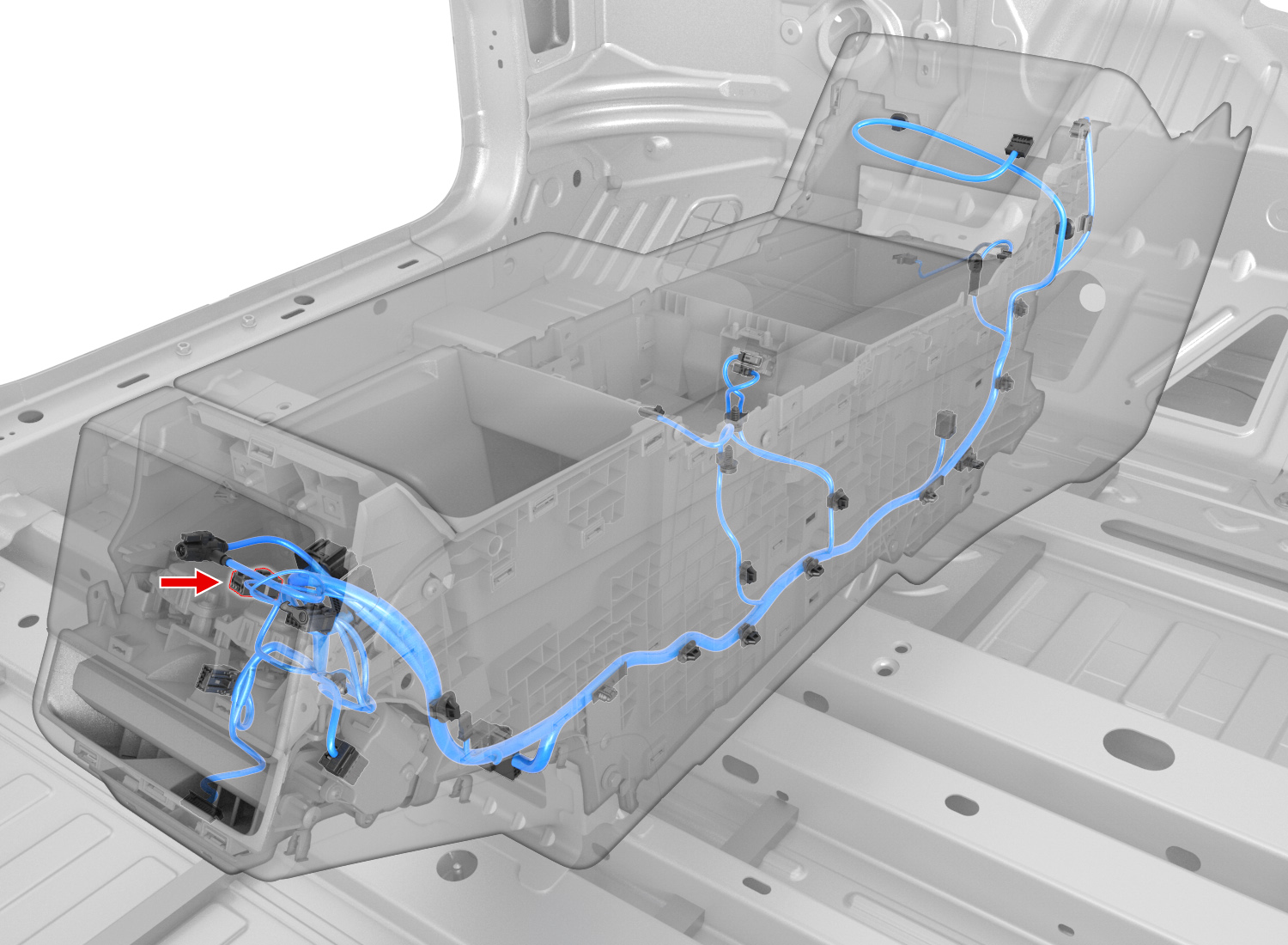

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	KUM	MT095-29080	0.5x0.5F	YE	0.35			X501_1	1
4	KUM	MT095-29080	0.5x0.5F	RD	0.35			X501_1	15
5	KUM	MT095-29080	0.5x0.5F	BU	0.35			X501_1	16
6	KUM	MT095-29080	0.5x0.5F	BN	0.35			X501_1	29
7	KUM	MT095-29080	0.5x0.5F	VT	0.35			X501_1	14
