X558

Tesla Part Number
1079658-00-A
Connector
KUM PH845-07010
Color
WT

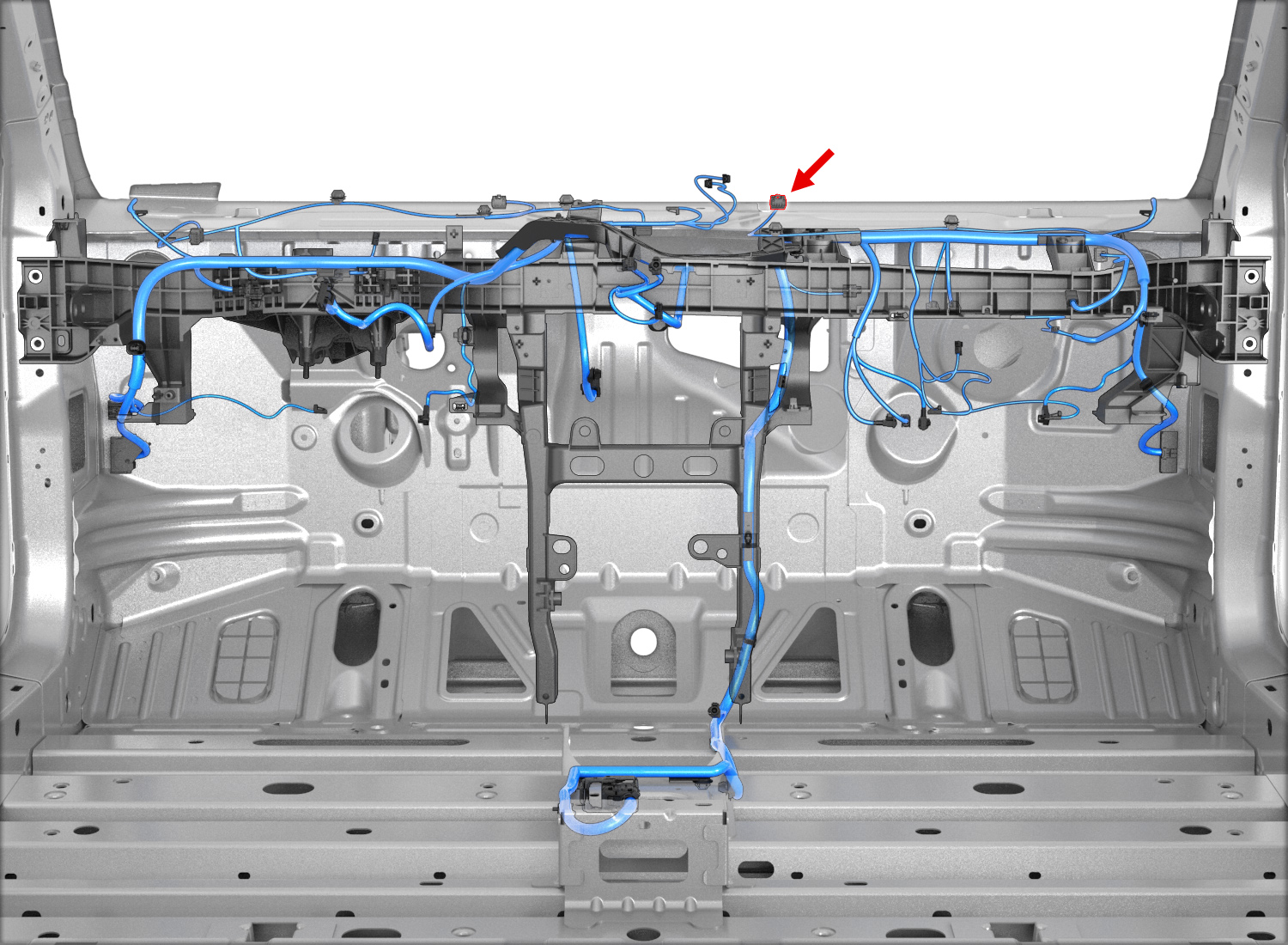

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1unused
2unused
3KUMMT095-290800.5x0.5FYE/BU0.35X991F1
4KUMMT095-290800.5x0.5FRD0.35X991F9
5KUMMT095-290800.5x0.5FWH/RD0.35X991F3
6KUMMT095-290800.5x0.5FBU0.35X991F7
7KUMMT095-290800.5x0.5FBK0.35X991F6
