X607

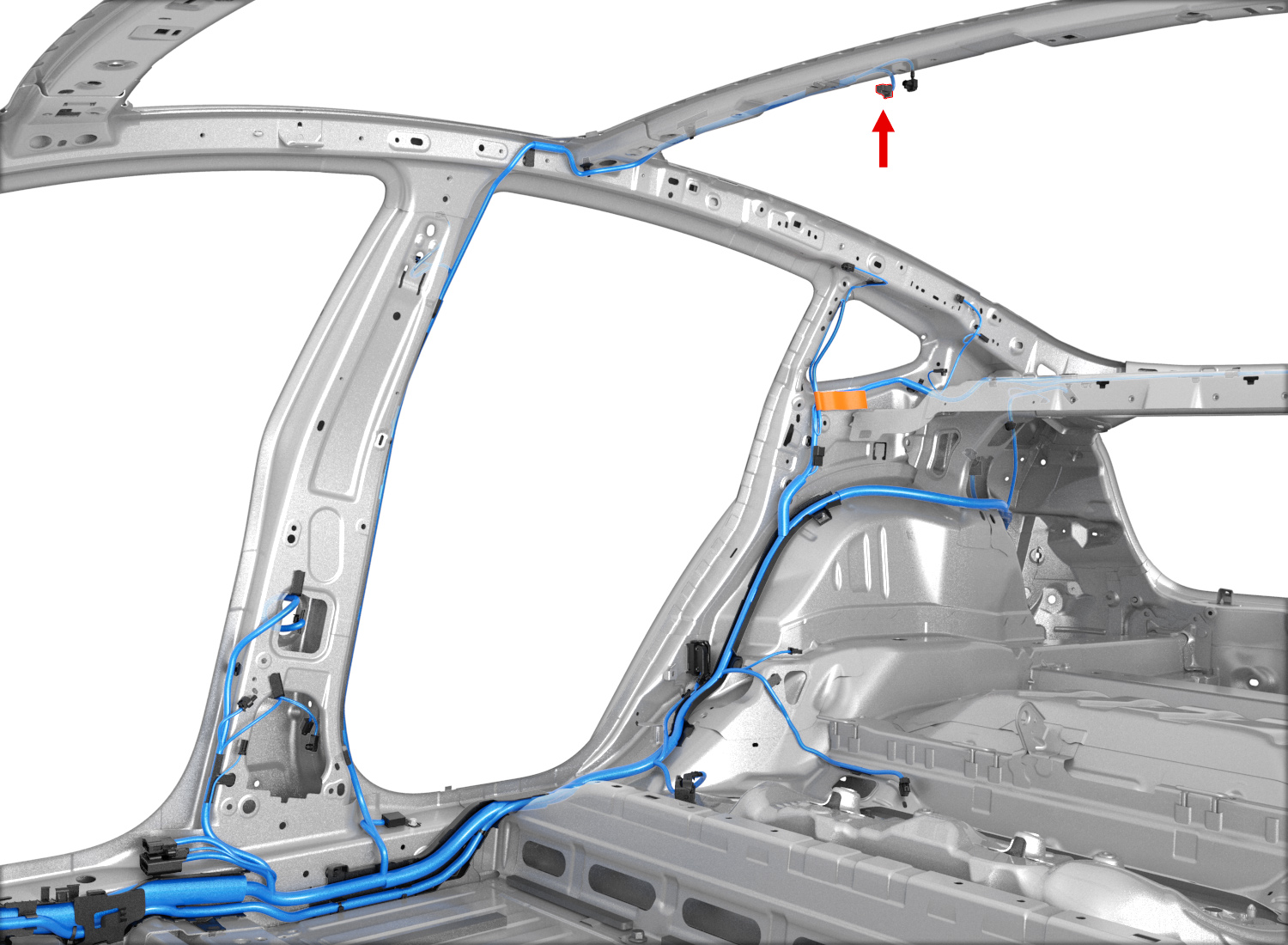

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | unused | ||||||||
| 3 | HIROSE | GT25H-2024SCF | 0.64F | VT | 0.35 | X175A | 16 | ||
| 4 | HIROSE | GT25H-2024SCF | 0.64F | WH | 0.35 | X175A | 15 | ||
| 5 | HIROSE | GT25H-2024SCF | 0.64F | RD | 0.35 | X171 | 14 | ||
| 6 | unused | ||||||||
| 7 | HIROSE | GT25H-2024SCF | 0.64F | BN | 0.35 | X936M | 8 | ||
| 8 | HIROSE | GT25H-2024SCF | 0.64F | GN | 0.35 | X936M | 7 | ||
