X609

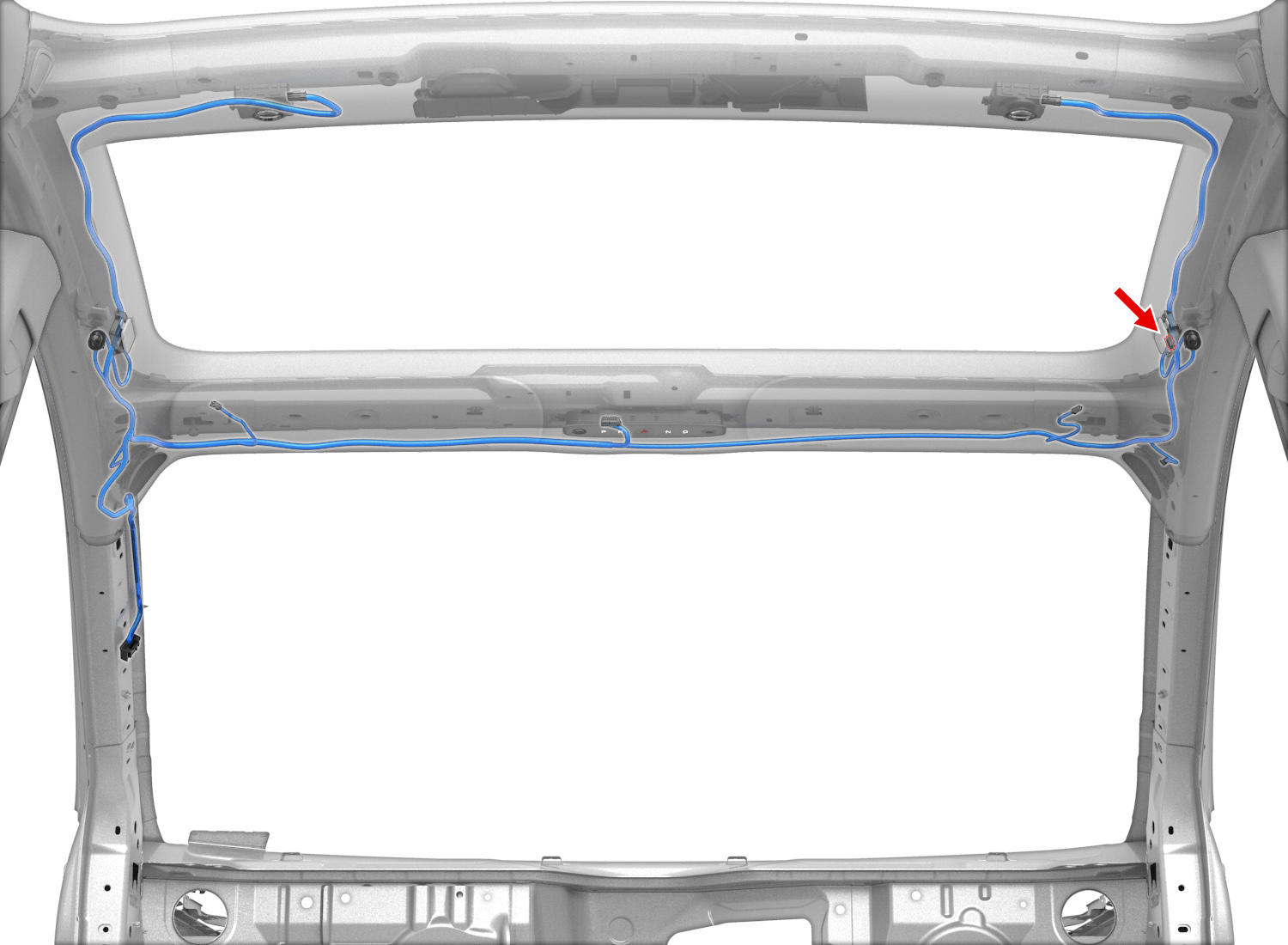

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 560124-0101 | 0.5F | YE | 0.35 | X608 | 5 | ||
| 2 | MOLEX | 560124-0101 | 0.5F | BU | 0.35 | X608 | 4 | ||
| 3 | MOLEX | 560124-0101 | 0.5F | BN | 0.35 | X299 | 16 | ||
| 4 | MOLEX | 560124-0101 | 0.5F | VT | 0.35 | X981F | 15 | ||
| 5 | MOLEX | 560124-0101 | 0.5F | WH | 0.35 | X981F | 14 |
