X613R

Tesla Part Number
1075477-00-B
Connector
DELPHI 13597381
Color
BN

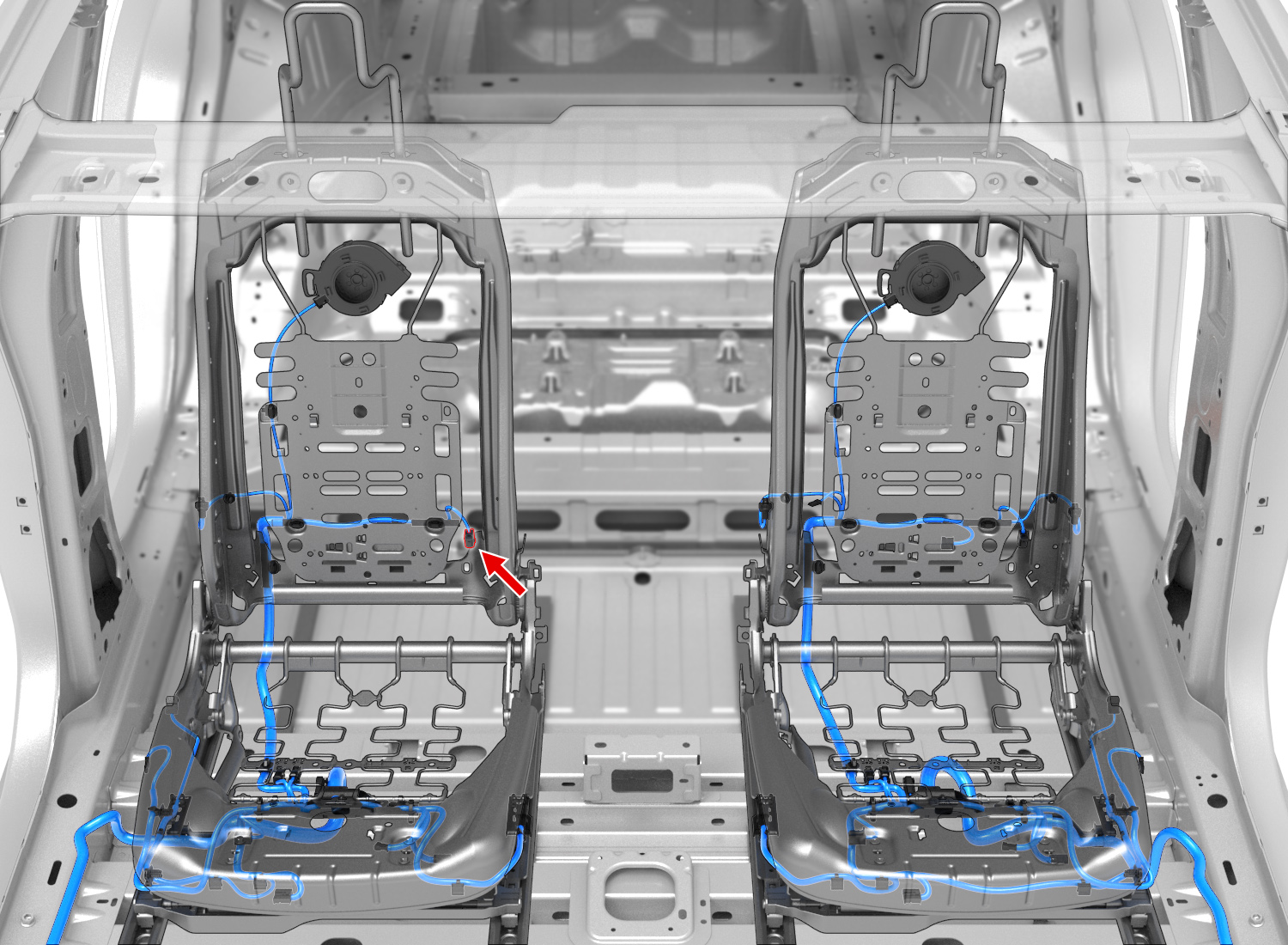

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP968074-22.8x0.6FGN1.00X05230
2AMP5-928999-10.63x0.63FTN0.35X0525
3AMP968074-22.8x0.6FBK1.00X05229
4AMP5-928999-10.63x0.63FBN0.35
