X619R

Tesla Part Number
1102680-00-A
Connector
AMP 2-1241370-3
Color
WH

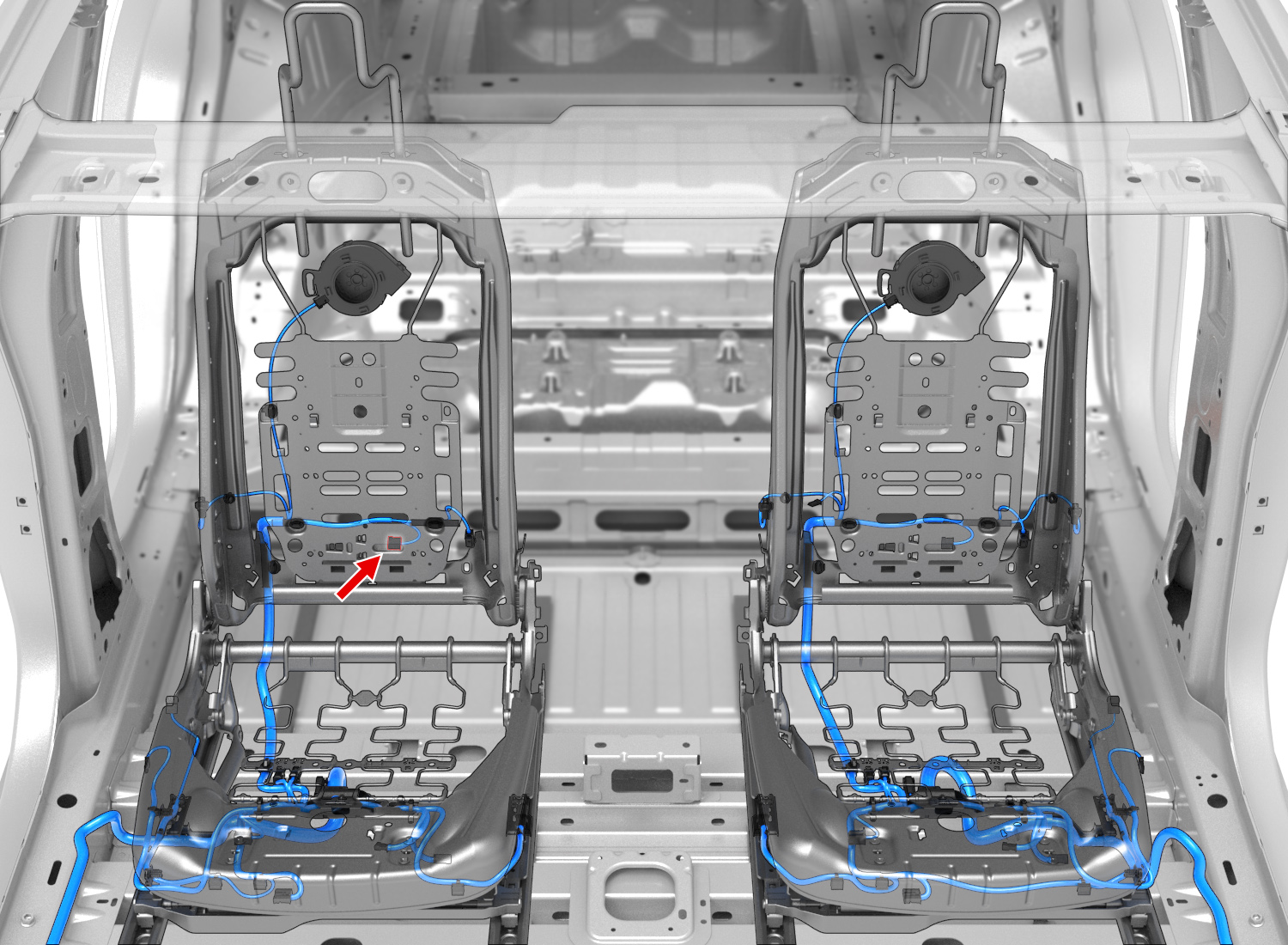

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-928999-10.63x0.63FRD0.35X05234
2AMP5-928999-10.63x0.63FBN0.35
3AMP5-928999-10.63x0.63FTN0.35X620R1
4AMP5-928999-10.63x0.63FBN/WH0.35X620R3
5unused
6AMP5-928999-10.63x0.63FGN0.35X05221
