X694

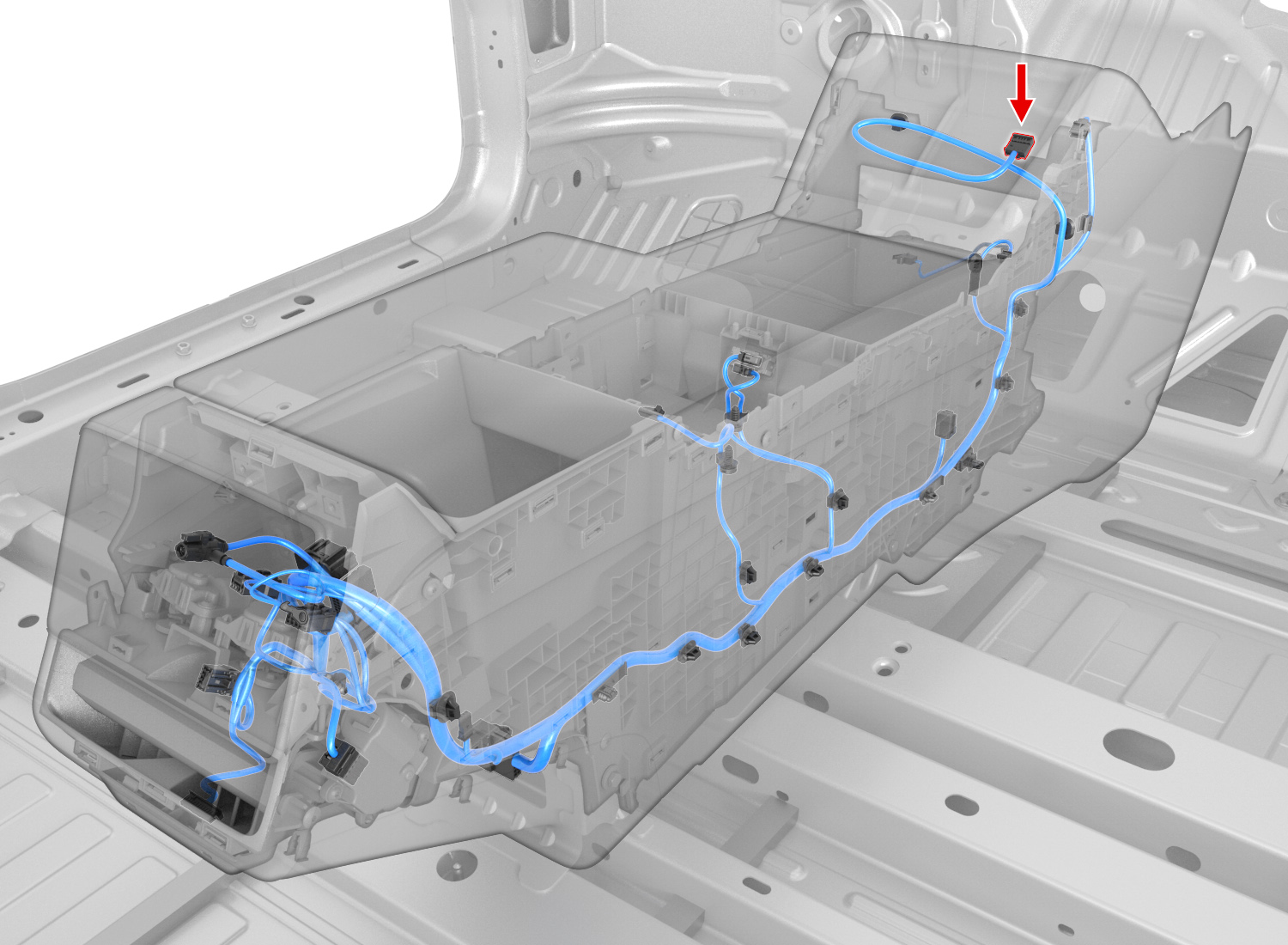

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 968075-2 | 2.8x0.6F | RD | 2.00 | X196 | 20 | ||
| 2 | AMP | 5-928999-1 | 0.63x0.63F | GN/WH | 0.35 | X196 | 16 | ||
| 3 | AMP | 5-928999-1 | 0.63x0.63F | WH | 0.35 | X930M | 15 | ||
| 4 | AMP | 5-928999-1 | 0.63x0.63F | YE | 0.35 | X930M | 14 | ||
| 5 | AMP | 968075-2 | 2.8x0.6F | BN | 2.00 | X196 | 12 |
