X697

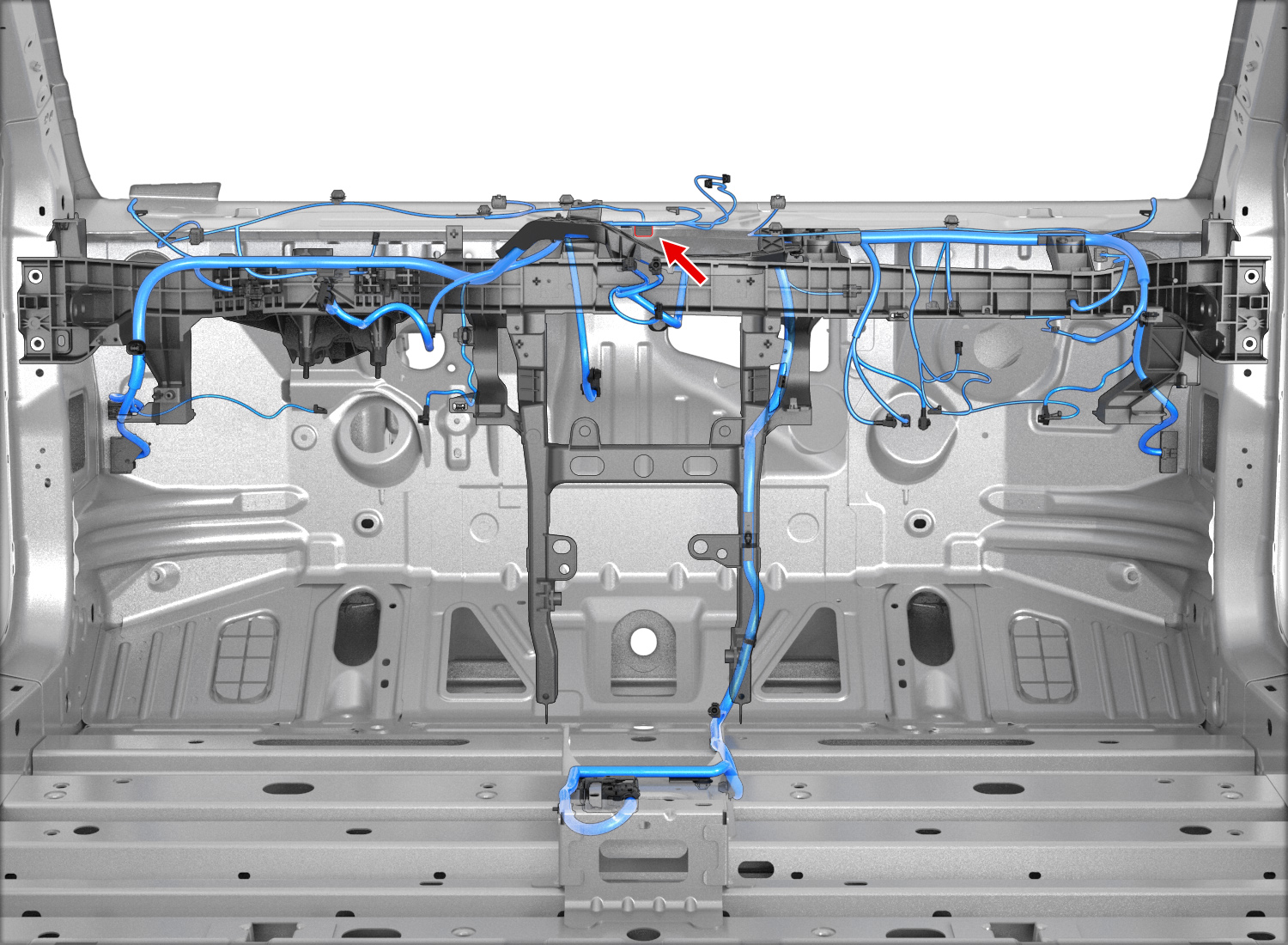

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | unused | ||||||||
| 3 | IRISO | IPS-13065T-01A-T | 0.50 | TN | 0.35 | X990F | 14 | ||
| 4 | IRISO | IPS-13065T-01A-T | 0.50 | VT | 0.35 | X990F | 7 | ||
| 5 | IRISO | IPS-13065T-01A-T | 0.50 | BN | 0.35 | X990F | 6 | ||
| 6 | unused | ||||||||
| 7 | IRISO | IPS-13065T-01A-T | 0.50 | BU | 0.35 | X990F | 13 | ||
| 8 | unused | ||||||||
