X901F

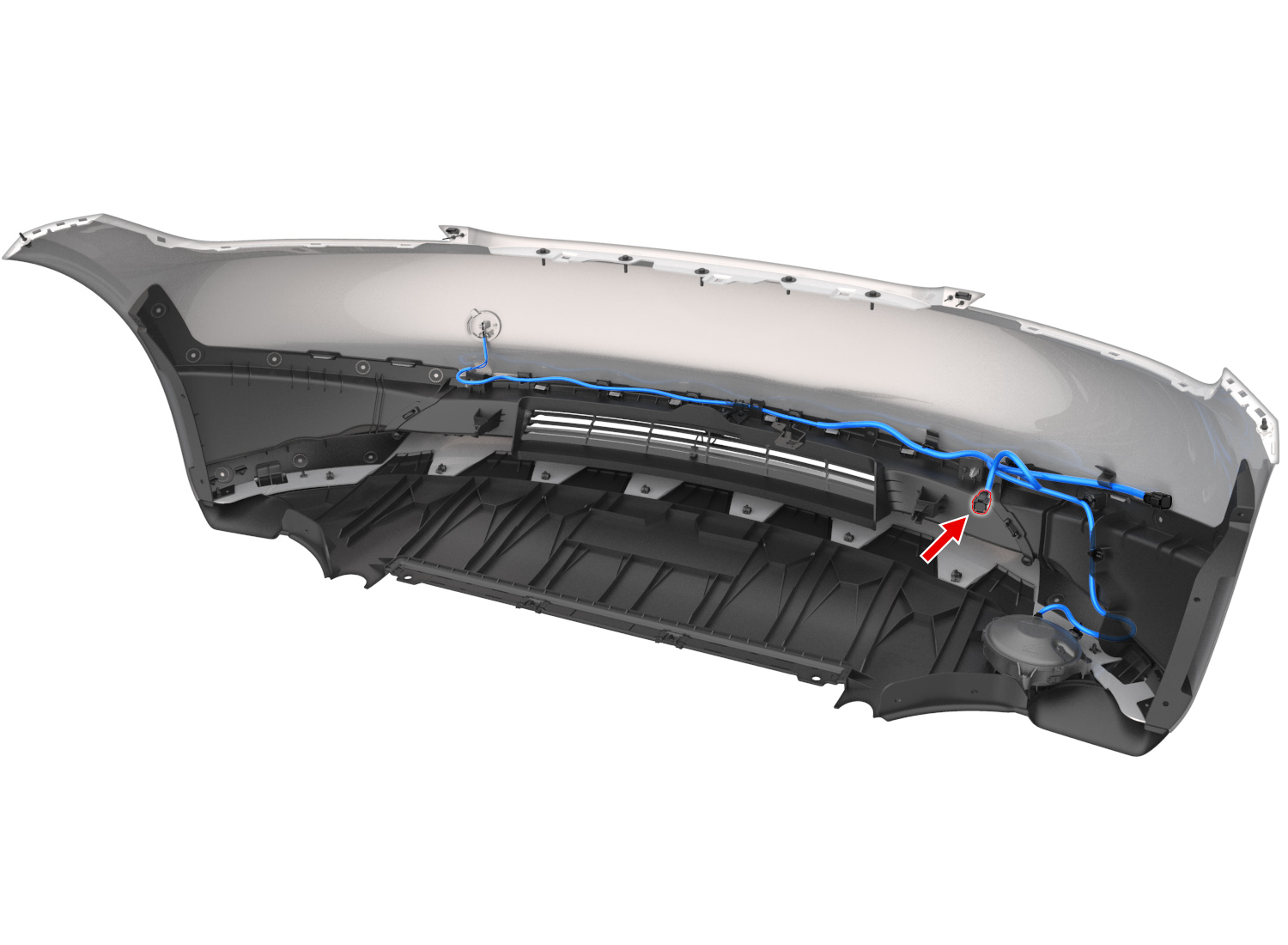

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3002 | 1.5x0.8F | BK | 1.00 | TESLA | MAT-120-240 | X356 | 1 |
| 2 | MOLEX | 33012-3002 | 1.5x0.8F | GN | 1.00 | TESLA | MAT-120-240 | X602 | 1 |
| 3 | MOLEX | 33012-3002 | 1.5x0.8F | BU | 1.00 | TESLA | MAT-120-240 | X602 | 2 |
| 4 | unused | ||||||||
| 5 | MOLEX | 33012-3002 | 1.5x0.8F | RD | 1.00 | TESLA | MAT-120-240 | X355 | 1 |
| 6 | MOLEX | 33012-3002 | 1.5x0.8F | WH | 1.00 | TESLA | MAT-120-240 | X102 | 1 |
