X922M

Tesla Part Number

1849225-01-B

Connector

KSE K30M31012

Color

BK

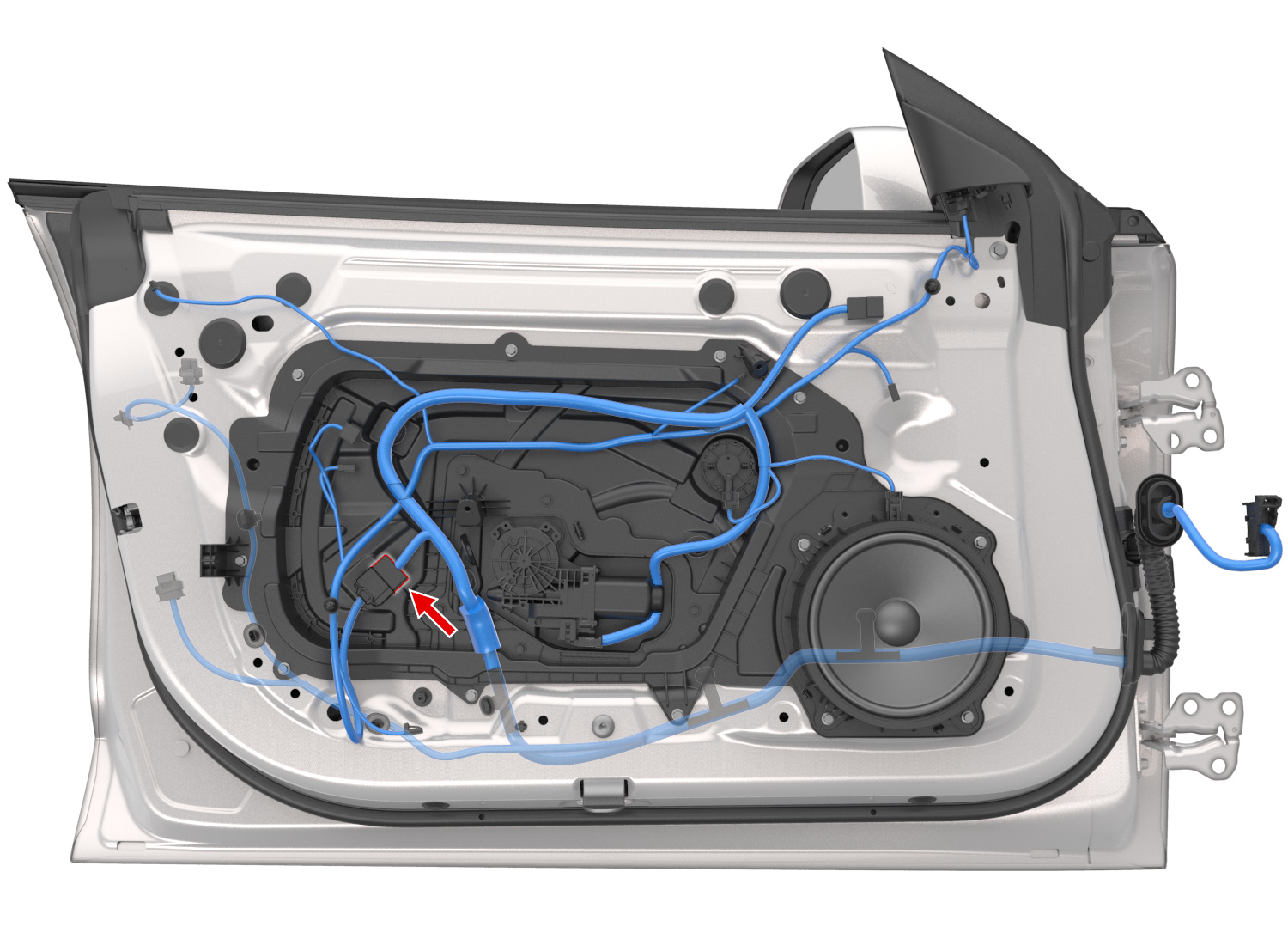

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4924	1.5x0.6M	VT	0.75			X033B	1
2	unused
3	unused
4	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X033A	19
5	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X033A	20
6	unused
7	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X033A	23
8	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X033A	15
9	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X033B	20
10	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X033A	24
11	SUMITOMO	8230-4924	1.5x0.6M	GN	1.00			X033B	5
12	SUMITOMO	8230-4924	1.5x0.6M	BU	0.75			X033B	2
13	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50
14	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X033A	7
15	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X033B	9
16	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X033B	8
17	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X033B	21
18	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X033A	14
19	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X033A	22
20	SUMITOMO	8230-4924	1.5x0.6M	VT	1.00			X033B	6
