X923F

Tesla Part Number

1849224-01-B

Connector

KSE K20F01112

Color

BK

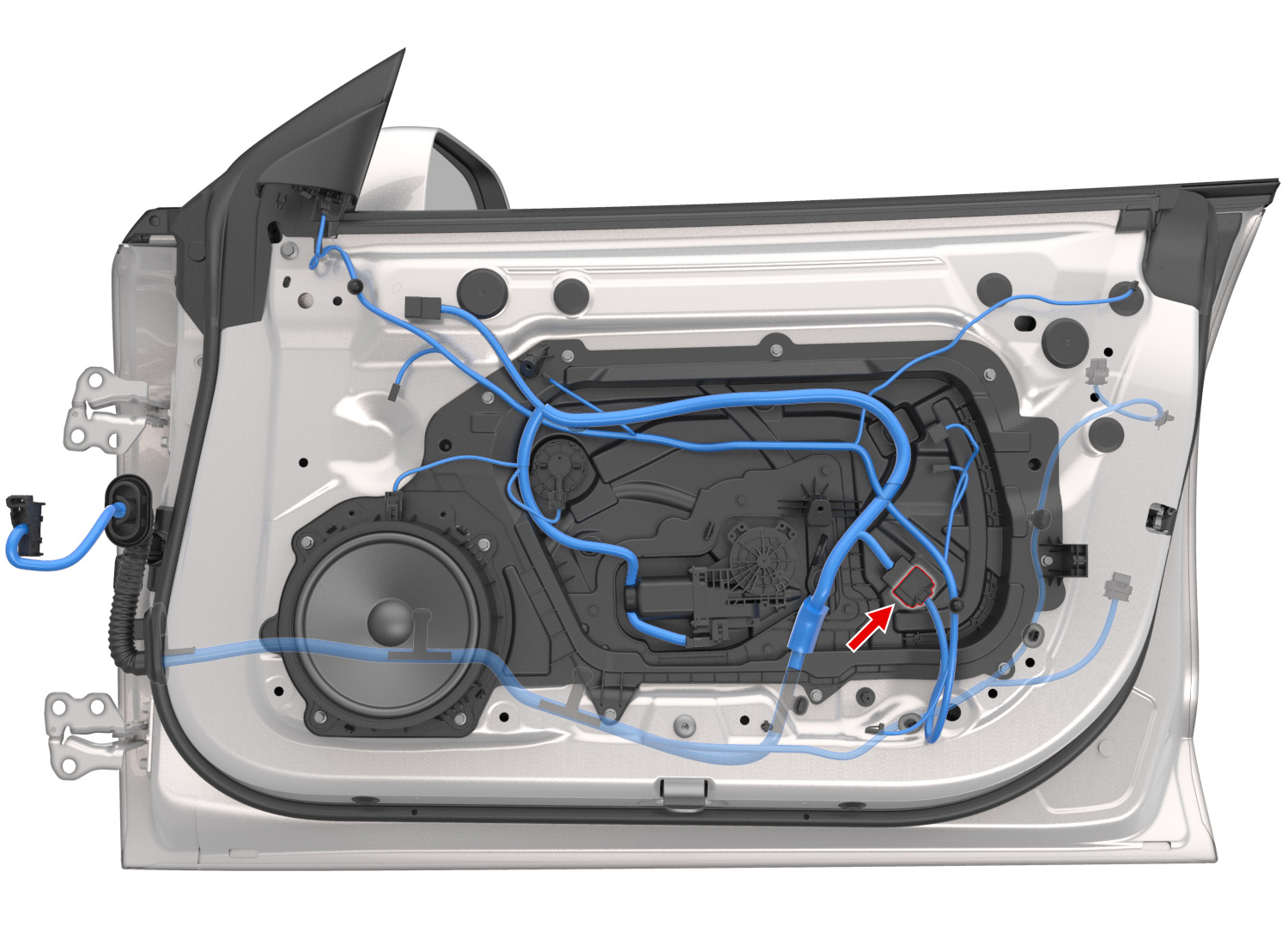

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X575	1
2	unused
3	unused
4	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X409	1
5	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X401	1
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X395	1
8	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X395	5
9	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X396	3
10	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X396	2
11	SUMITOMO	8240-0213	1.5x0.64F	GN	0.75			X580	1
12	SUMITOMO	8240-0213	1.5x0.64F	BU	0.75			X575	2
13	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50
14	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X400	1
15	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X395	3
16	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X399	2
17	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X395	4
18	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X408	3
19	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X408	1
20	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X580	2
