X924F

Tesla Part Number

1849226-01-C

Connector

KSE K20F01222

Color

BK

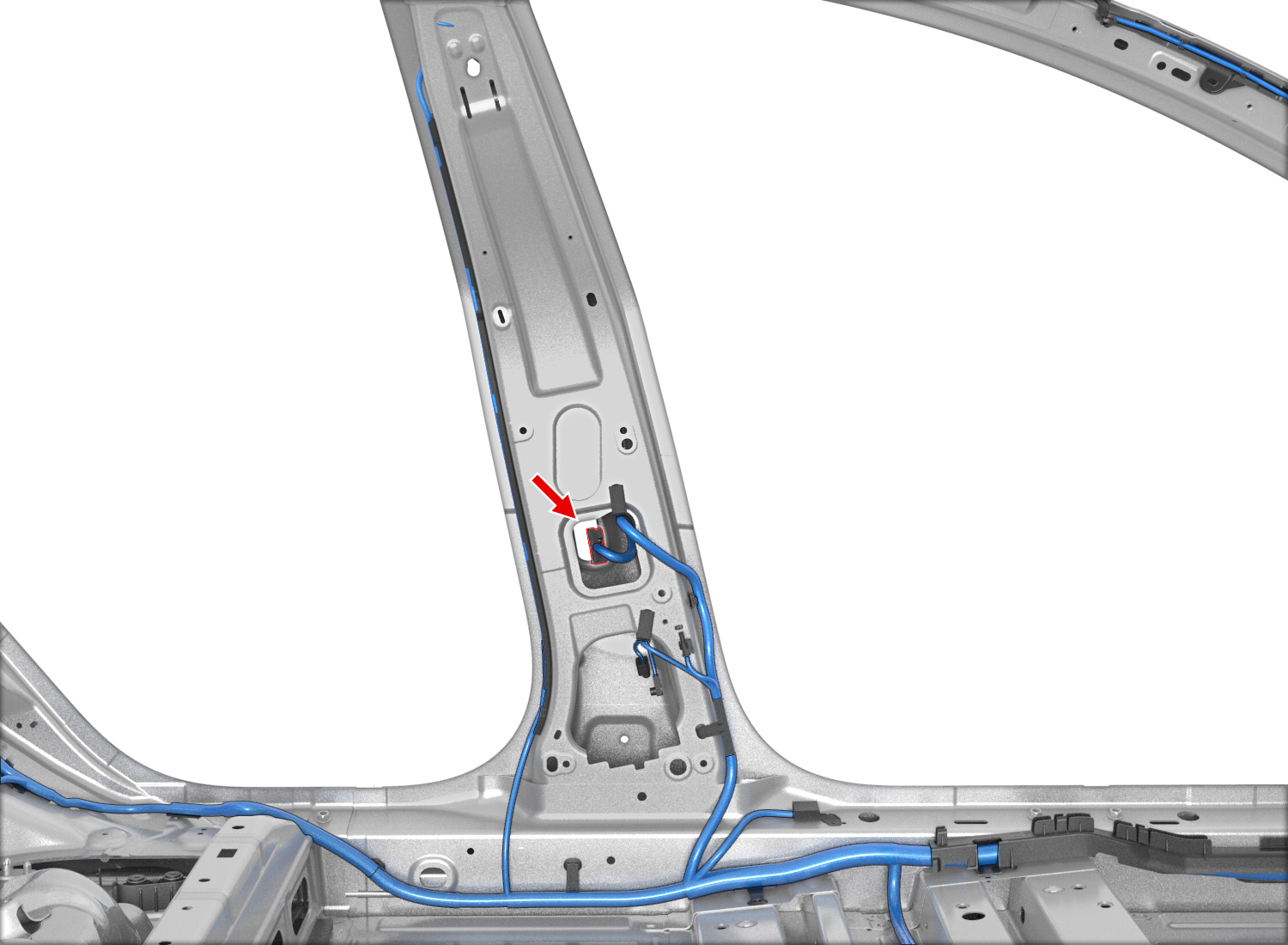

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X031	1
2	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X030A	11
3	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X030A	14
4	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X031	20
5	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X030A	17
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X030A	18
7	unused
8	unused
9	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X031	24
10	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X030A	8
11	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X030A	22
12	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X031	19
13	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X031	4
14	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X936F	1
15	SUMITOMO	8240-0214	1.5x0.64F	GN	1.50			X031	15
16	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X031	23
17	unused
18	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X039	4
19	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X030A	13
20	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X201	44
21	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X201	43
22	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X039	31
23	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X030A	23
24	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X031	7
25	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X031	8
26	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X936F	15
