X924M

Tesla Part Number

1849227-01-B

Connector

KSE K30M31112

Color

BK

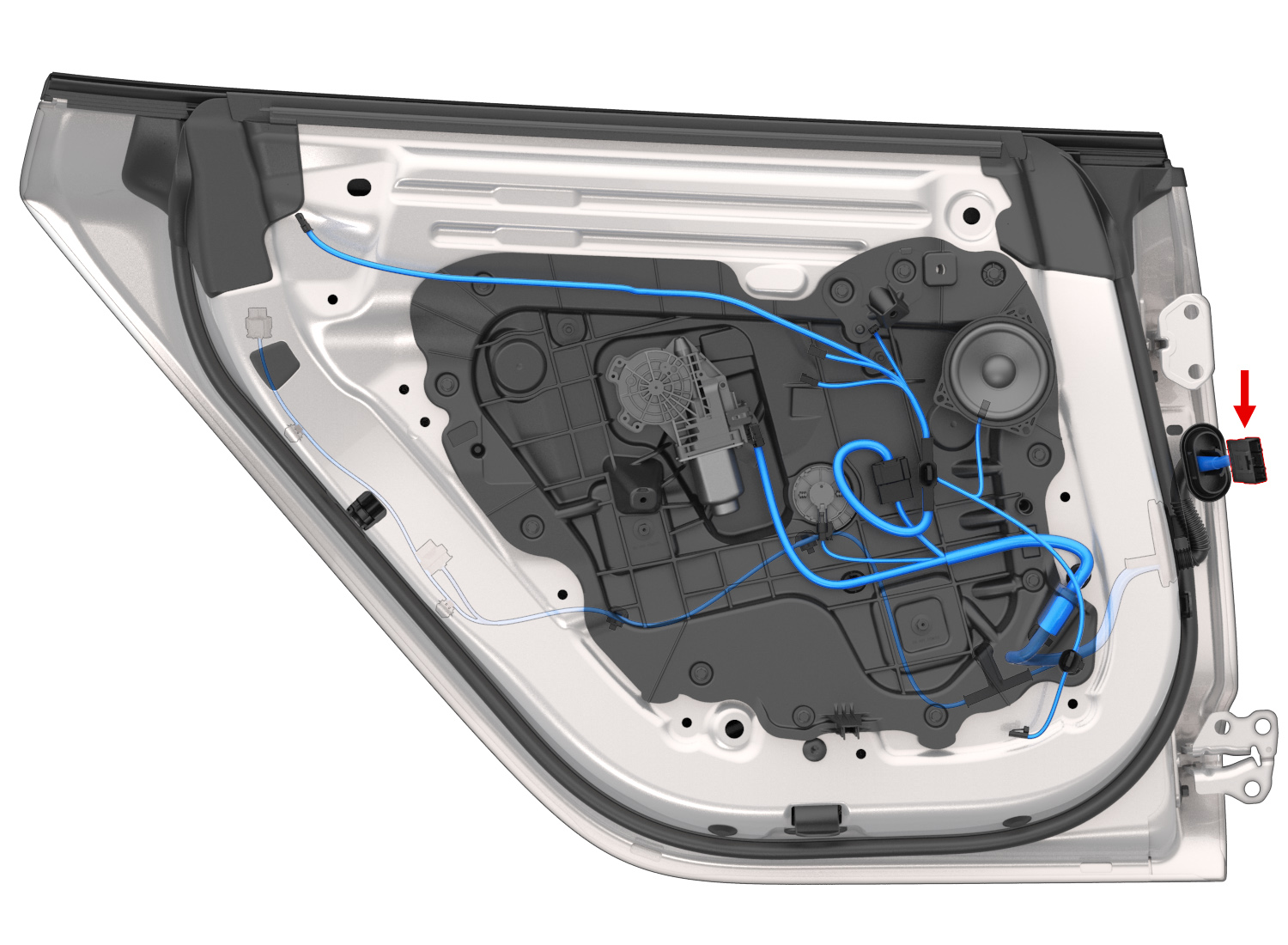

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	WH	1.50			X433	1
2	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X925M	9
3	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X925M	16
4	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50
5	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X433	2
6	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X433	4
7	unused
8	unused
9	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X925M	5
10	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X925M	18
11	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X425	2
12	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X427	4
13	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X427	3
14	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50			X925M	1
15	SUMITOMO	8230-4923	1.5x0.6M	GN	1.50			X433	5
16	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X925M	10
17	unused
18	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X427	8
19	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X427	1
20	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X208	2
21	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X208	1
22	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X925M	19
23	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X425	4
24	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X925M	14
25	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X925M	8
26	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			X925M	12
