X926F

Tesla Part Number

1849226-01-C

Connector

KSE K20F01222

Color

BK

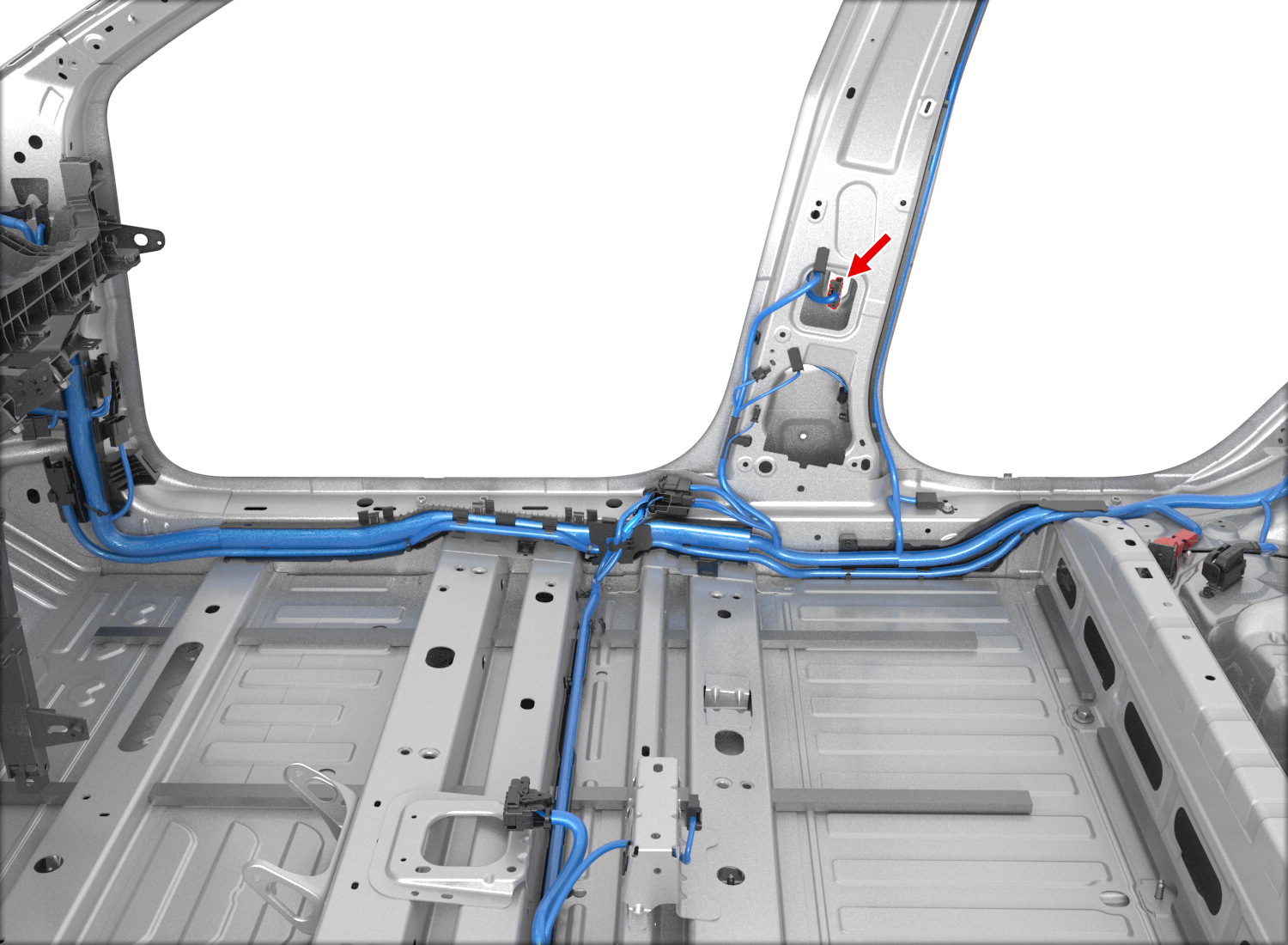

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X051	2
2	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X050	29
3	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X050	53
4	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X050	15
5	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X050	48
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X050	25
7	unused
8	unused
9	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X051	25
10	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X051	23
11	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X051	27
12	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X050	31
13	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X050	54
14	SUMITOMO	8240-0215	1.5x0.64F	RD/WH	0.50			X560	3
15	SUMITOMO	8240-0214	1.5x0.64F	GN	1.50			X051	1
16	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X051	21
17	unused
18	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X059	27
19	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X050	30
20	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X936M	17
21	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X936M	16
22	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X051	44
23	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X051	11
24	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X051	6
25	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X051	22
26	SUMITOMO	8240-0215	1.5x0.64F	BK/WH	0.50			X560	4
