X927M

Tesla Part Number

1849225-01-B

Connector

KSE K30M31012

Color

BK

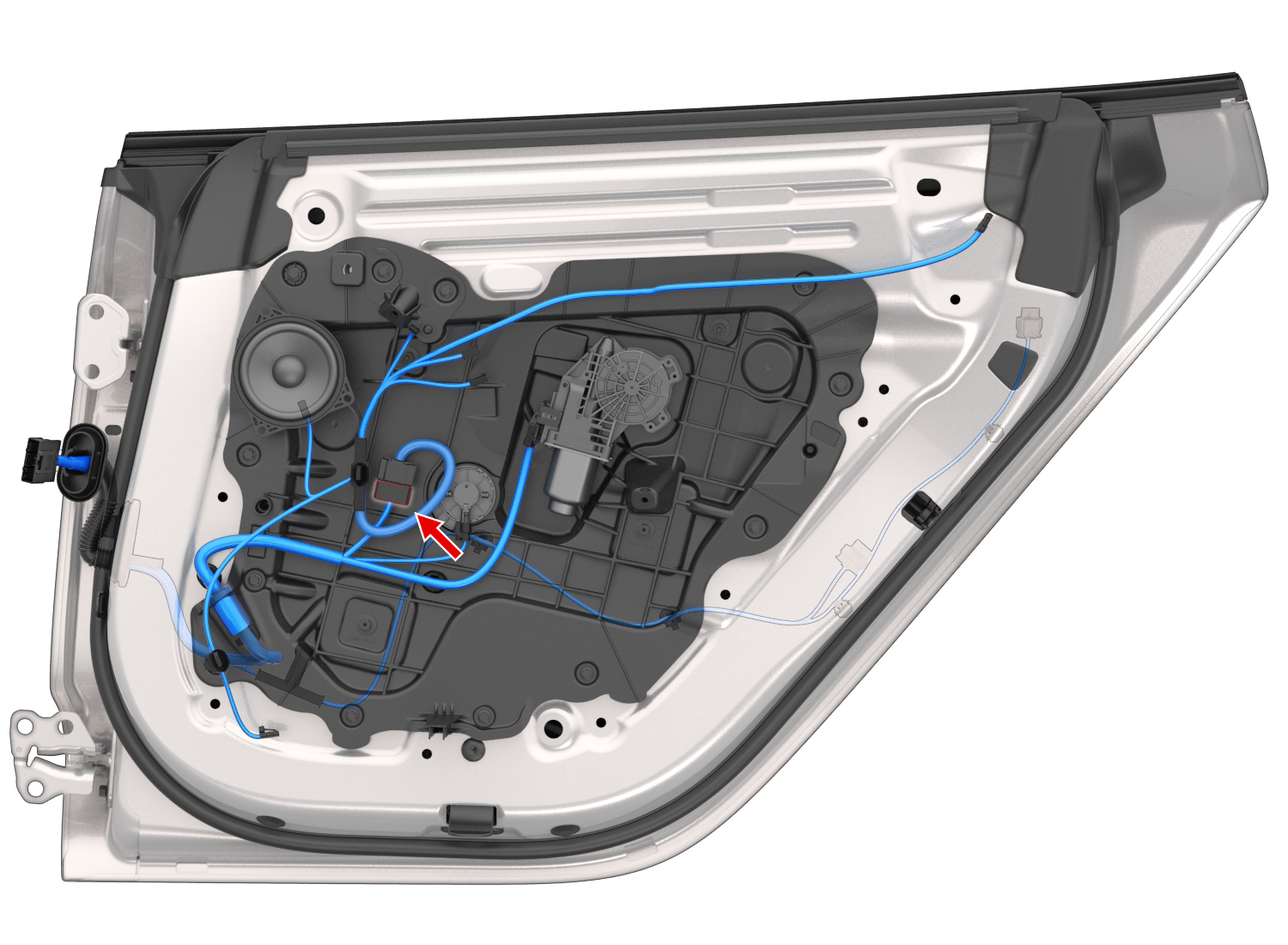

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50			X926M	14
2	unused
3	unused
4	unused
5	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X926M	9
6	unused
7	unused
8	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X926M	25
9	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X926M	2
10	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X926M	16
11	unused
12	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			X926M	26
13	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50
14	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X926M	24
15	unused
16	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X926M	3
17	unused
18	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X926M	10
19	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X926M	22
20	unused
