X930F

Tesla Part Number

1042614-00-A

Connector

SUMITOMO 6098-5604

Color

WH

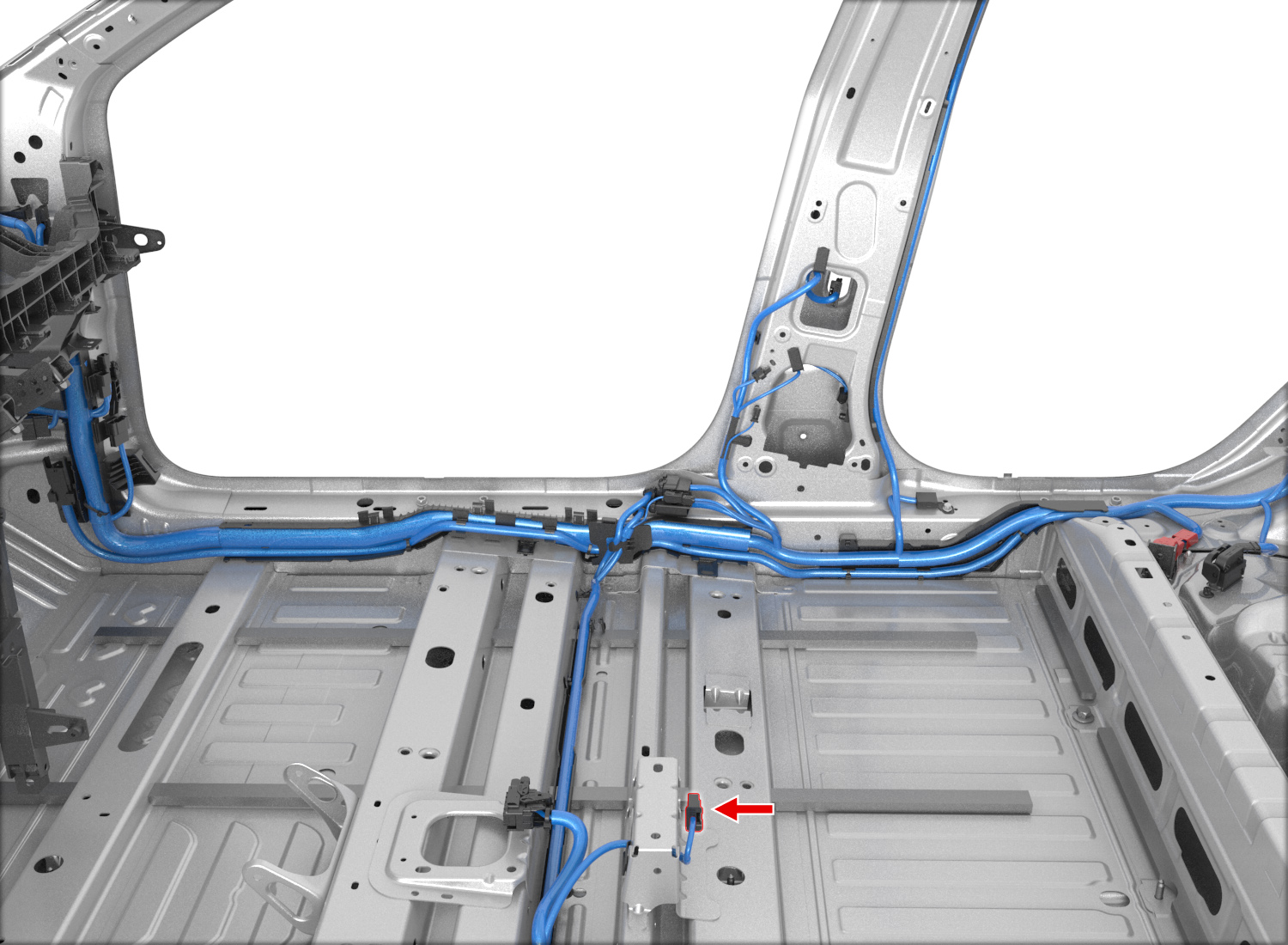

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X031	3
2	SUMITOMO	8240-0214	1.5x0.64F	BK	1.50			G031	14
3	unused
4	unused
5	unused
6	unused
7	unused
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X031	22
9	unused
10	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X031	5
11	SUMITOMO	8240-0214	1.5x0.64F	BN	2.00			X031	18
12	unused
13	unused
14	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X039	29
15	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X039	28
16	unused
17	unused
18	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			G031	12
