X930M

Tesla Part Number

1042613-00-A

Connector

SUMITOMO 6098-5594

Color

WH

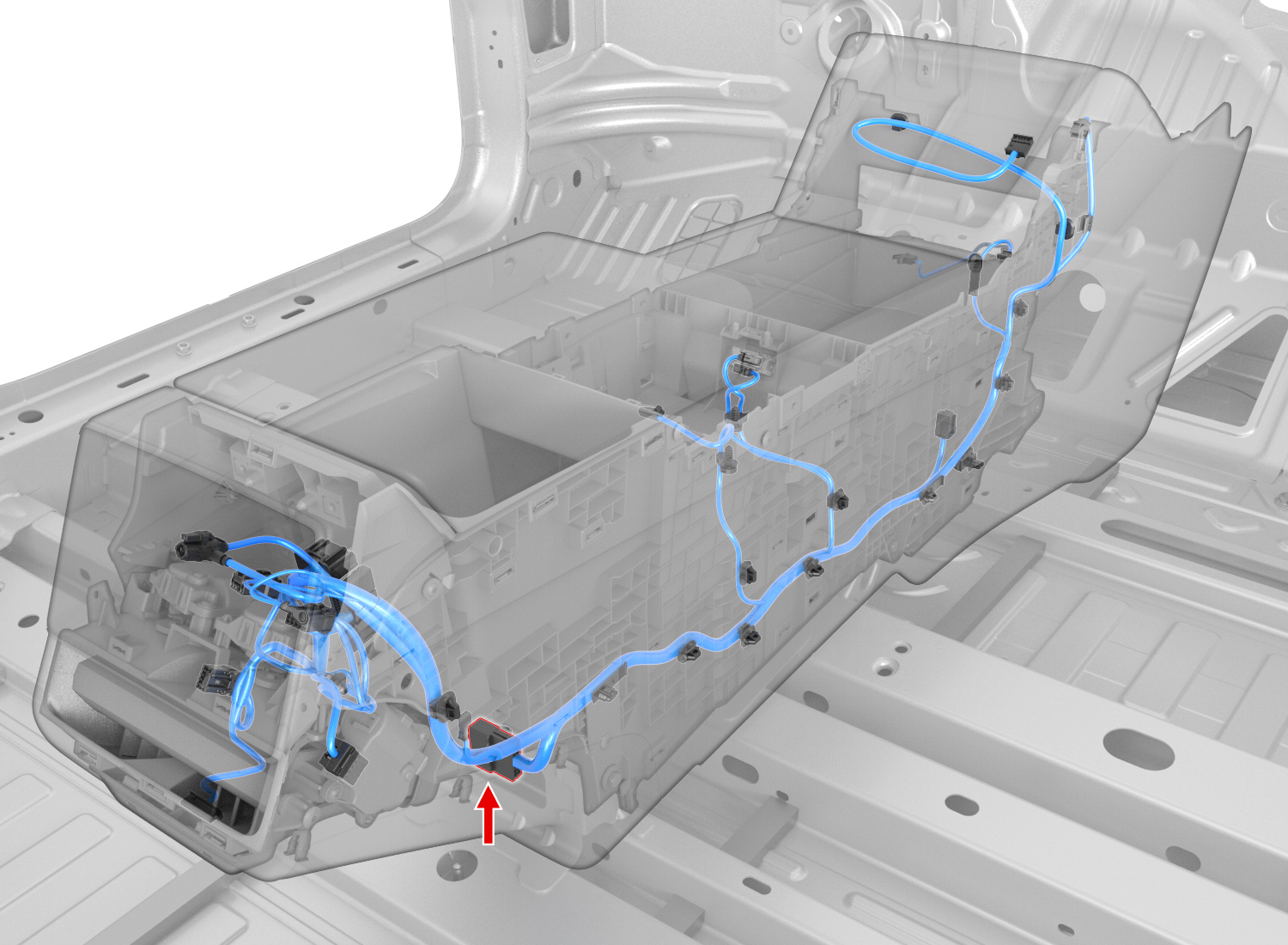

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	BU	2.00			X197	2
2	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			G006	1
3	unused
4	unused
5	unused
6	unused
7	unused
8	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X196	17
9	unused
10	SUMITOMO	8230-4923	1.5x0.6M	YE	2.00			X196	11
11	SUMITOMO	8230-4923	1.5x0.6M	BN	2.00			X197	1
12	unused
13	unused
14	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X694	4
15	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X694	3
16	unused
17	unused
18	SUMITOMO	8230-4923	1.5x0.6M	BK	2.00			X196	1
