X936F

Tesla Part Number

1849226-02-C

Connector

KSE K20F01223

Color

GY

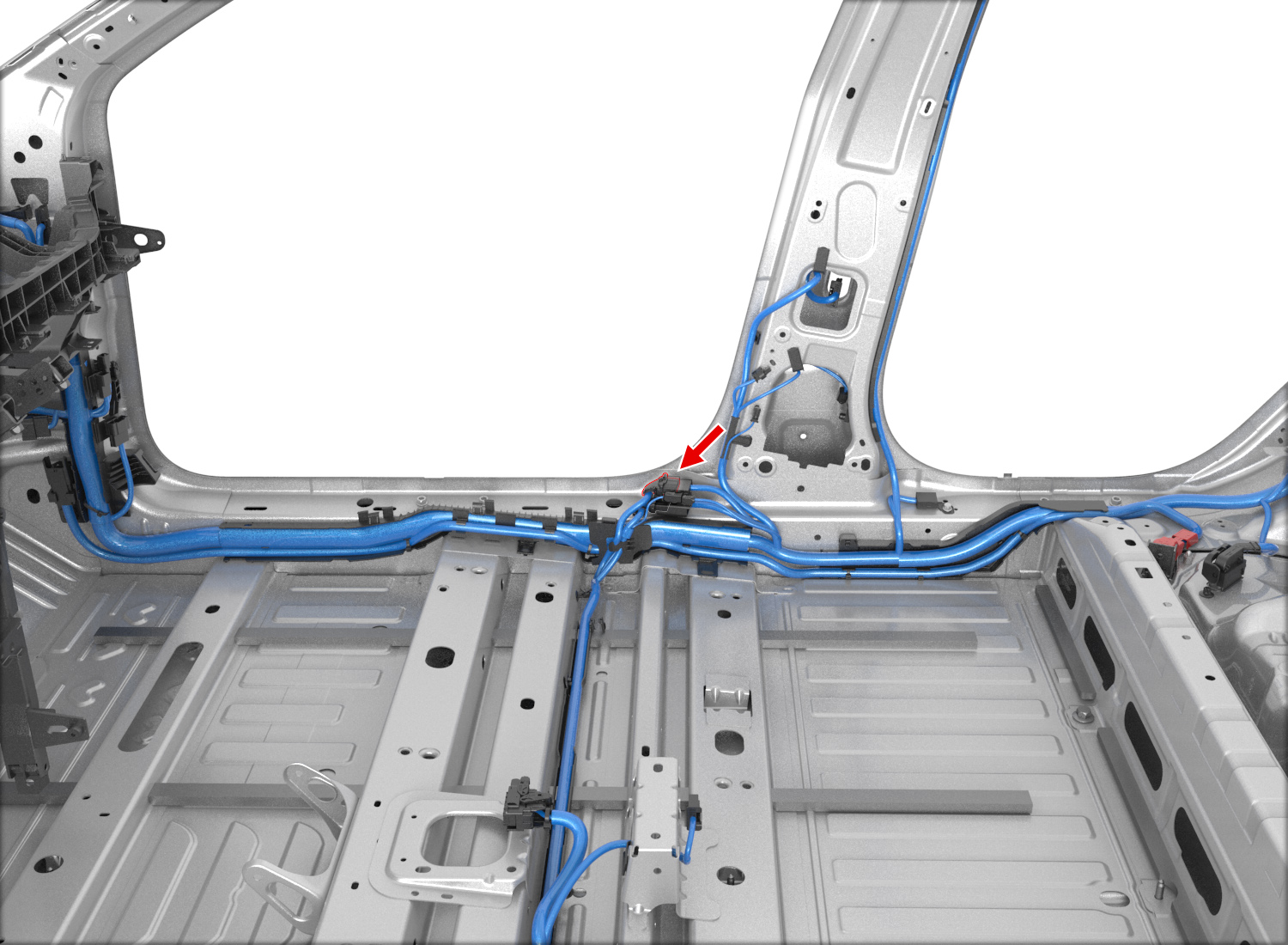

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X924F	14
2	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	9
3	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X201	10
4	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X981M	18
5	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X167	6
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X167	4
7	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X981M	5
8	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X981M	6
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X167	3
10	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X167	1
11	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X981M	1
12	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X201	16
13	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X201	15
14	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X031	33
15	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X924F	26
16	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X201	42
17	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X201	41
18	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50			X981M	10
19	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X167	5
20	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X981M	15
21	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X981M	14
22	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X167	2
23	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X981M	11
24	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	2
25	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X201	1
26	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X031	34
