X936M

Tesla Part Number

1849227-02-B

Connector

KSE K30M31113

Color

GY

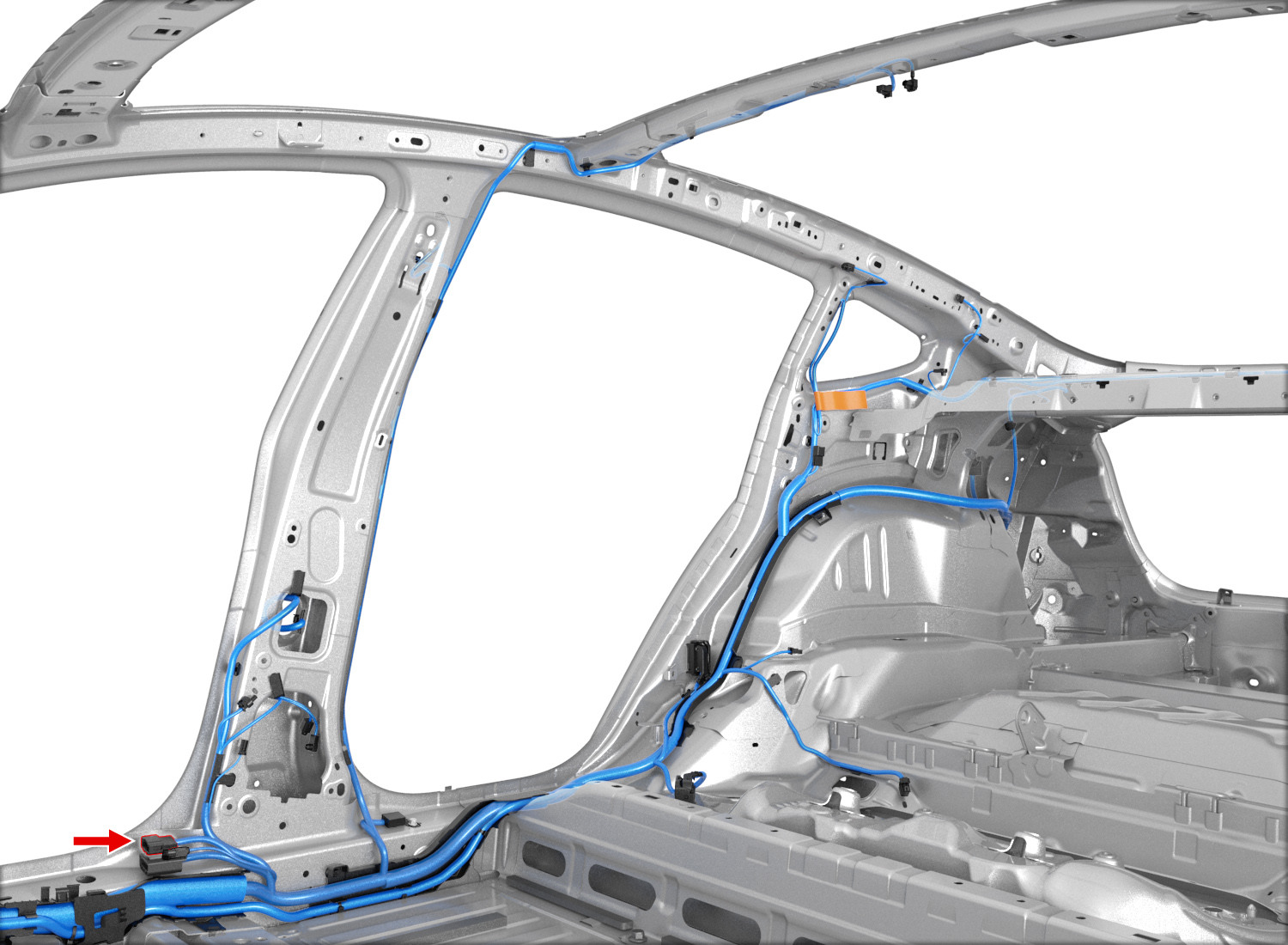

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50			X560	2
2	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X226	1
3	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X226	2
4	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X171	4
5	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X050	27
6	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X050	28
7	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X607	8
8	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X607	7
9	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X050	51
10	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X050	50
11	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50			X175	13
12	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X218	1
13	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X218	2
14	SUMITOMO	8230-4923	1.5x0.6M	BU	2.00			X561	7
15	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			X560	1
16	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X926F	21
17	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X926F	20
18	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X171	3
19	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X050	49
20	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X563	7
21	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X563	8
22	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X050	26
23	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X175	14
24	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X222	2
25	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X222	1
26	SUMITOMO	8230-4923	1.5x0.6M	YE	2.00			X561	8
