X981F

Tesla Part Number

1042614-00-A

Connector

SUMITOMO 6098-5604

Color

WH

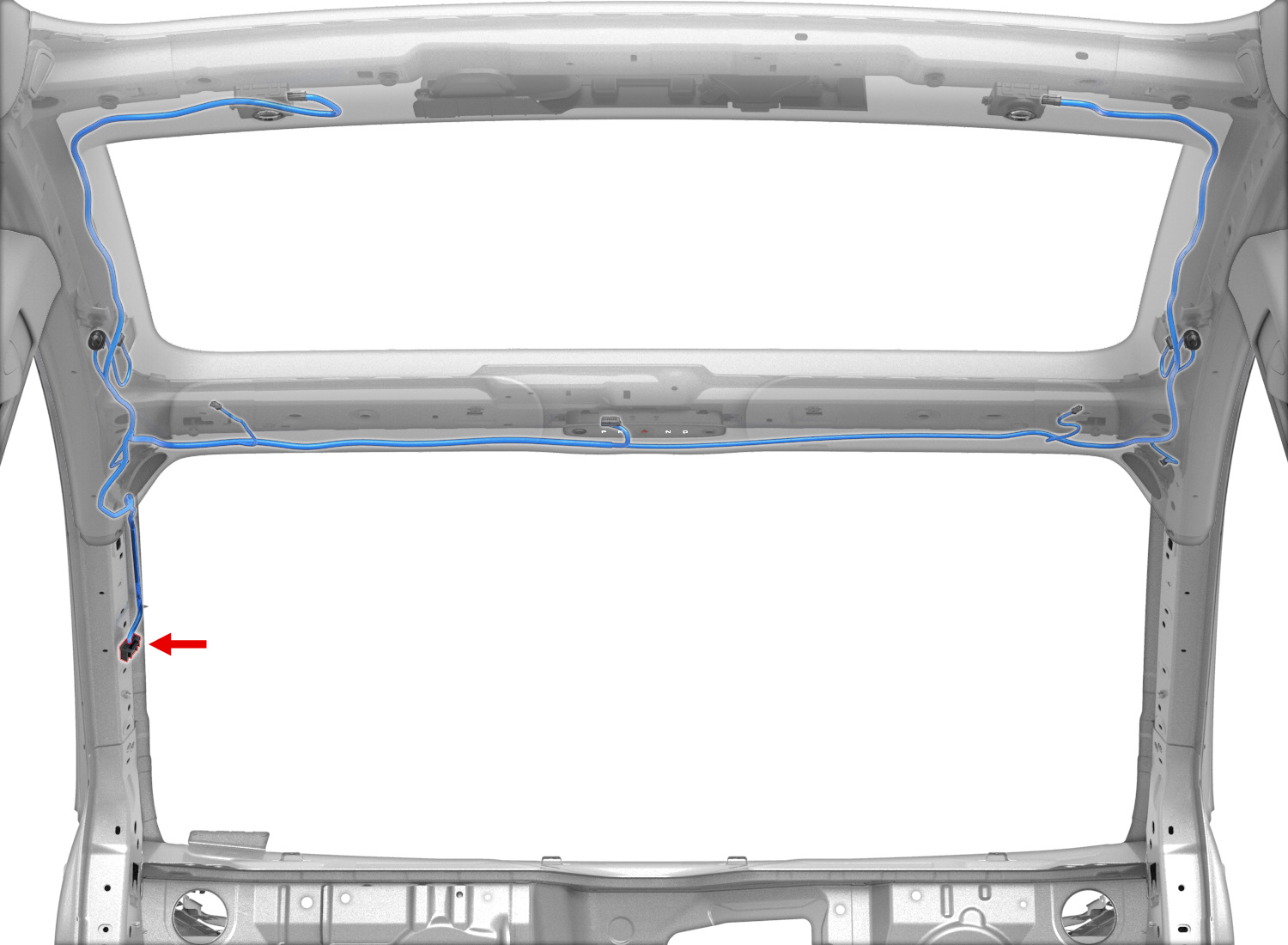

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X569	1
2	unused
3	unused
4	unused
5	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X608	2
6	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X608	1
7	unused
8	SUMITOMO	8100-3625	0.64x0.64F	YE/GN	0.35			X299	7
9	unused
10	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X579	1
11	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X569	2
12	unused
13	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X299	1
14	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X609	5
15	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X609	4
16	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X299	13
17	unused
18	SUMITOMO	8240-0215	1.5x0.64F	BN	0.50			X579	2
