X990F

Tesla Part Number

1042580-00-A

Connector

SUMITOMO 6098-3917

Color

WH

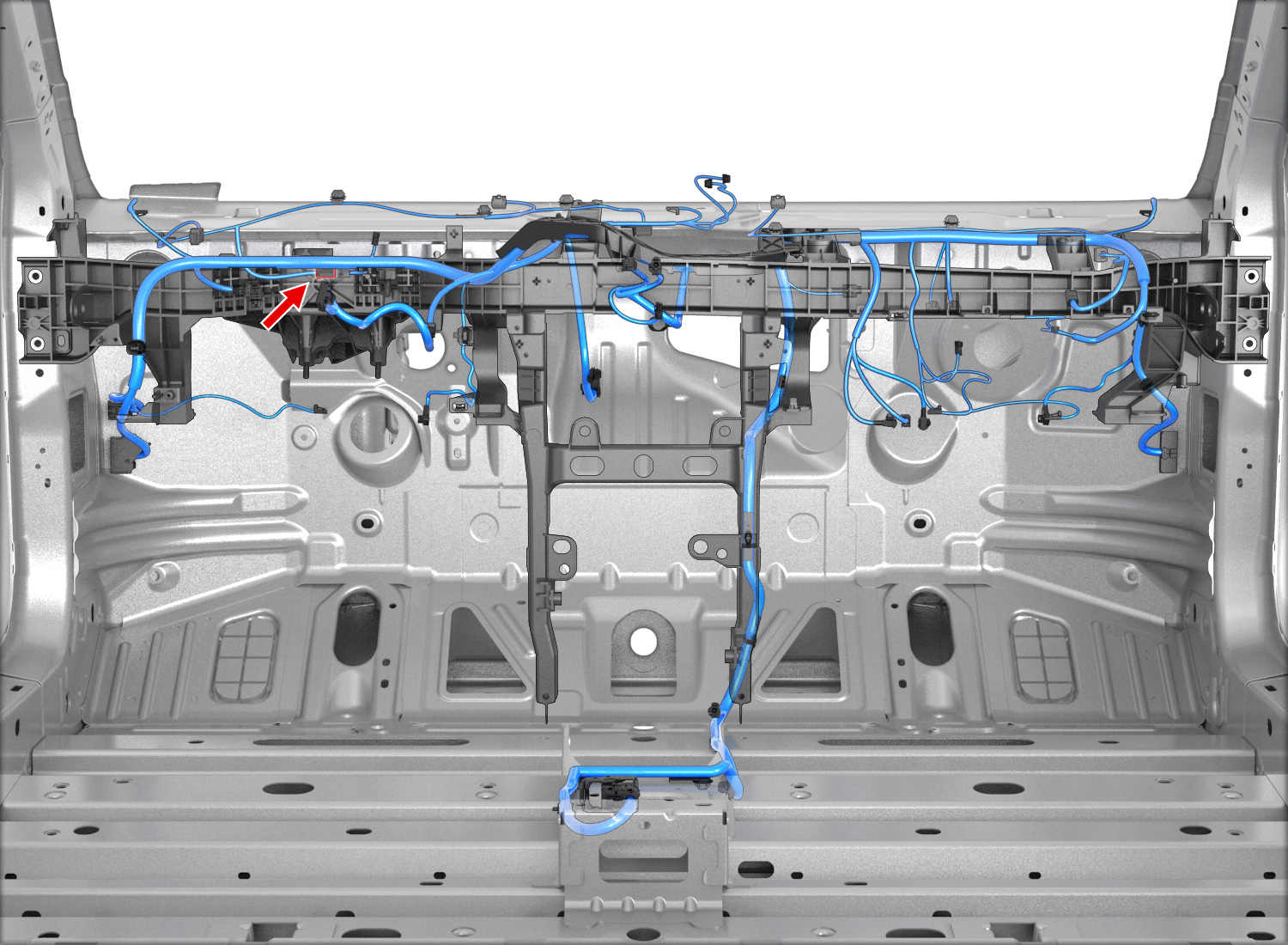

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X559	3
2	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X546	4
3	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X559	5
4	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X546	6
5	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X546	7
6	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X697	5
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X697	4
8	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X559	7
9	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X559	6
10	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X546	5
11	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X559	4
12	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X546	3
13	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X697	7
14	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X697	3
